| Item | Value |
|---|---|
| Measured gases | |
| Measuring range | |
| Detection principle | |
| Accuracy | ppb |
| Resolution | |
| Response time | |
| Ingress protection | |
| Explosion protection | |
| Operating temperature | |
| Power supply | |
| Output signal | 4-20mA signal |

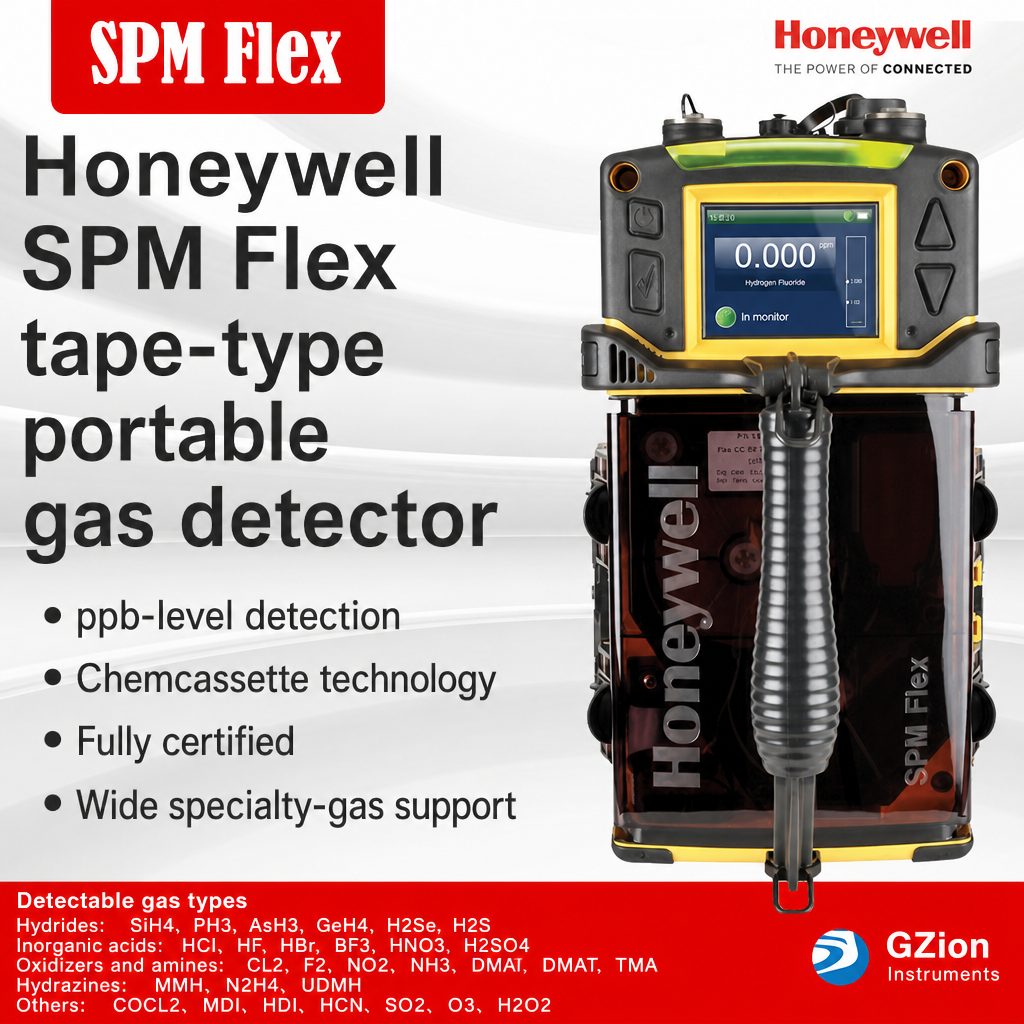

Whether you're responding to an emergency, investigating a suspicious leak, or performing routine tool maintenance tasks, SPM Flex provides you with unrivalled accuracy, intuitive operation, and flexible integration. This single-point Chemcassette® tape detector can be used in both portable and fixed applications, capable of detecting gases present in factories with ultra-high sensitivity, and with its rugged design, you can use it for years with confidence, even in challenging environments.
Flexible: Fixed and portable configurations to withstand harsh environments
Equipped with a clear LCD display and a bright LED status bar, you can see where you are even from a distance
Gas settings, safety configurations, and other operating parameters are fully customizable
Specifications at a glance
Dimensions: 12.0" (H) x 6.3" (W) x 6.0" (D)*
Weight: 9.2 lbs*
Interface: Full color LCD display, built-in web page
Data logging: More than 90 days (built-in)
Suitability: The main components can function in less than 5 minutes
Silane (SiH4) 0.03 - 50 ppm
Arsine (AsH3) 0.5-500ppb
Phosphine (PH3) 3-3000 ppb
Germane (GeH4) 50-2000 ppb
Hydrogen Selenide (H2Se) 2-500 ppb
Hydrogen Sulphide (H2S) 0.001-9.999 ppm
Hydrogen Fluoride (HF) 0.02-20 ppm
Hydrogen Chloride (HCl) 0.02-20 ppm
Hydrogen Bromide (HBr) 0.02-10 ppm
Boron Trifluoride (BF3) 0.05-10 ppm
Nitric Acid (HNO3) 0.02-20 ppm
Sulfuric Acid (H2SO4) 5-750 ppb
Chlorine (Cl2) 0.005-5 ppm
Chlorine (Cl2) 0.01-5 ppm
Fluorine (F2) 0.01-10 ppm
Nitrogen Dioxide (NO2) 0.03-10 ppm
Chlorine Dioxide (ClO2) 20-1000 ppb
Ammonia (NH3 0.01-150 ppm
Dimethylamine (DMA, H2Cl2Si) 0.5-50 ppm
Tetrakis (Dimeth- ylamido) Titanium (TDMAT, C8H24N4Ti)
0.01-20 ppm
Trimethylamine (TMA, C3H9N) 0.3-50 ppm
Phosgene (COCl2) 2-2000 ppb
Toluene Diisocyanate (TDI, C9H6N2O2) 0.5-200 ppb
Methylene Bisphe- nyl Isocyanate (MDI, C15H10N2O2) 0.5-200 ppb
Hexamethylene Diisocyanate (HDI, C8H12N2O2)
0.5-150 ppb
Hydrazine (N2H4) 3-1000 ppb
Monomethyl Hydrazine (MMH, CH6N2)
3-2000 ppb
Hydrogen Cyanide (HCN) 0.2-30 ppm
Sulphur Dioxide (SO2) 10-2500 ppb
Ozone (O3) 20-1000 ppb
Hydrogen Peroxide (H2O2) 0.1-3 ppm
Paper Tape Model:
1265-4000
1265-4001
1265-4012
1265-4002
1265-4004
1265-4003
1265-4007
1265-4006
1265-4008
1265-4009
1265-4005
1265-4011
1265-4010
1265-3004
1265-3003
1265-3007
1265-3006
1265-3008
1265-3005
1265-3011
1265-3010
1265-3000
1265-3001
1265-3012
1265-3002
It is suitable for industrial safety monitoring and on-site inspection scenarios.
