Sieger Sensepoint Flammable & Toxic Gas Detectors

Product ID: 9021 | Brand: Honeywell | Price: On request

Part-number matrix

Filter by HT flammable, standard flammable, or toxic/oxygen. Click a P/N for details.

Full part-number indexOn-page matrix

Product photo

Sieger Sensepoint Flammable & Toxic Gas Detectors
Three familiesHT flammable · standard flam. · toxic / oxygen
Industrial outputsFlam. mV bridge; toxic/O₂ 2-wire 4–20 mA
Hazardous areasExd/Exe boxes; ATEX / IECEx; IP65/66
Thread optionsM20 / M25 / M26 / ¾″ NPT

Specification figures

Sensepoint datasheet cover
Sensepoint datasheet cover

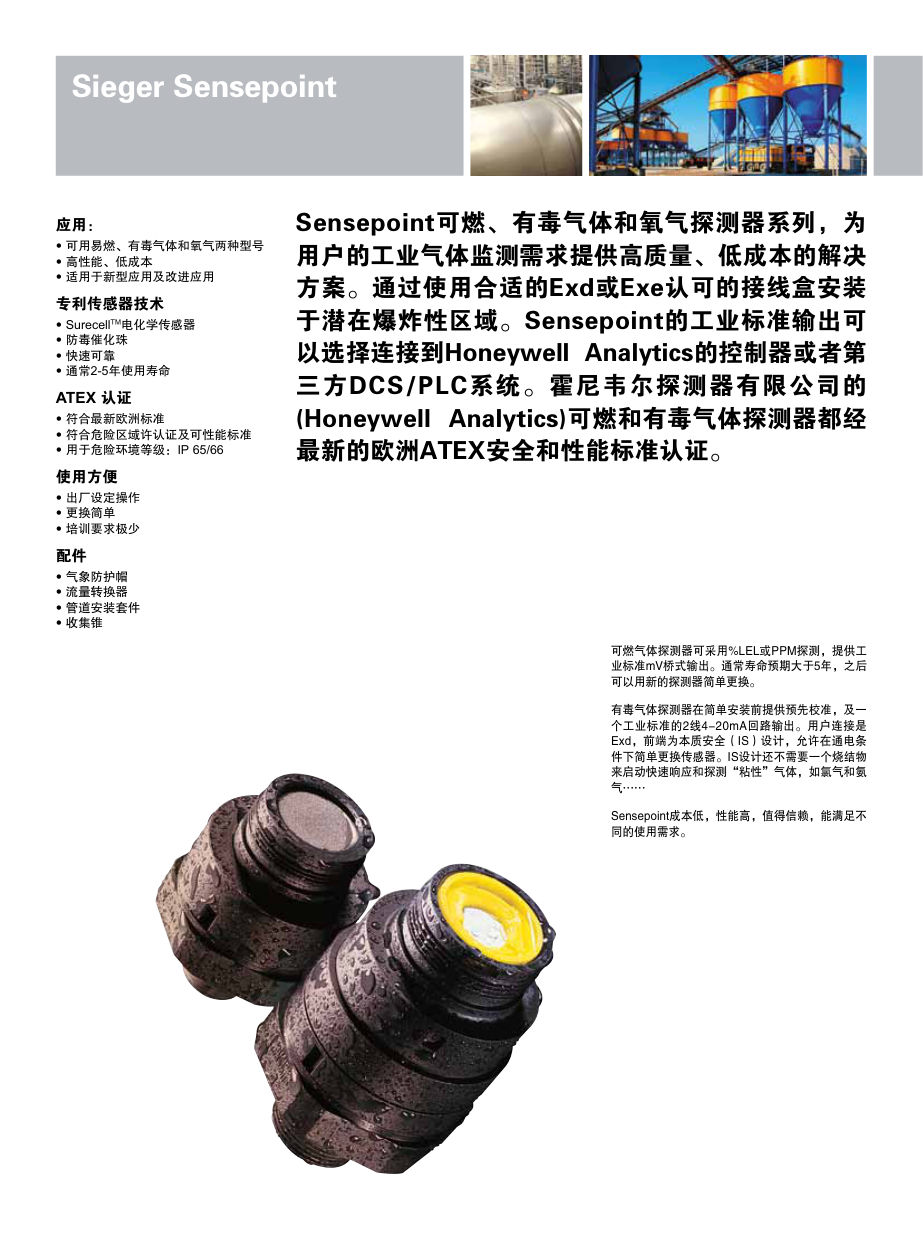

Flammable / toxic / oxygen overview
Flammable / toxic / oxygen overview

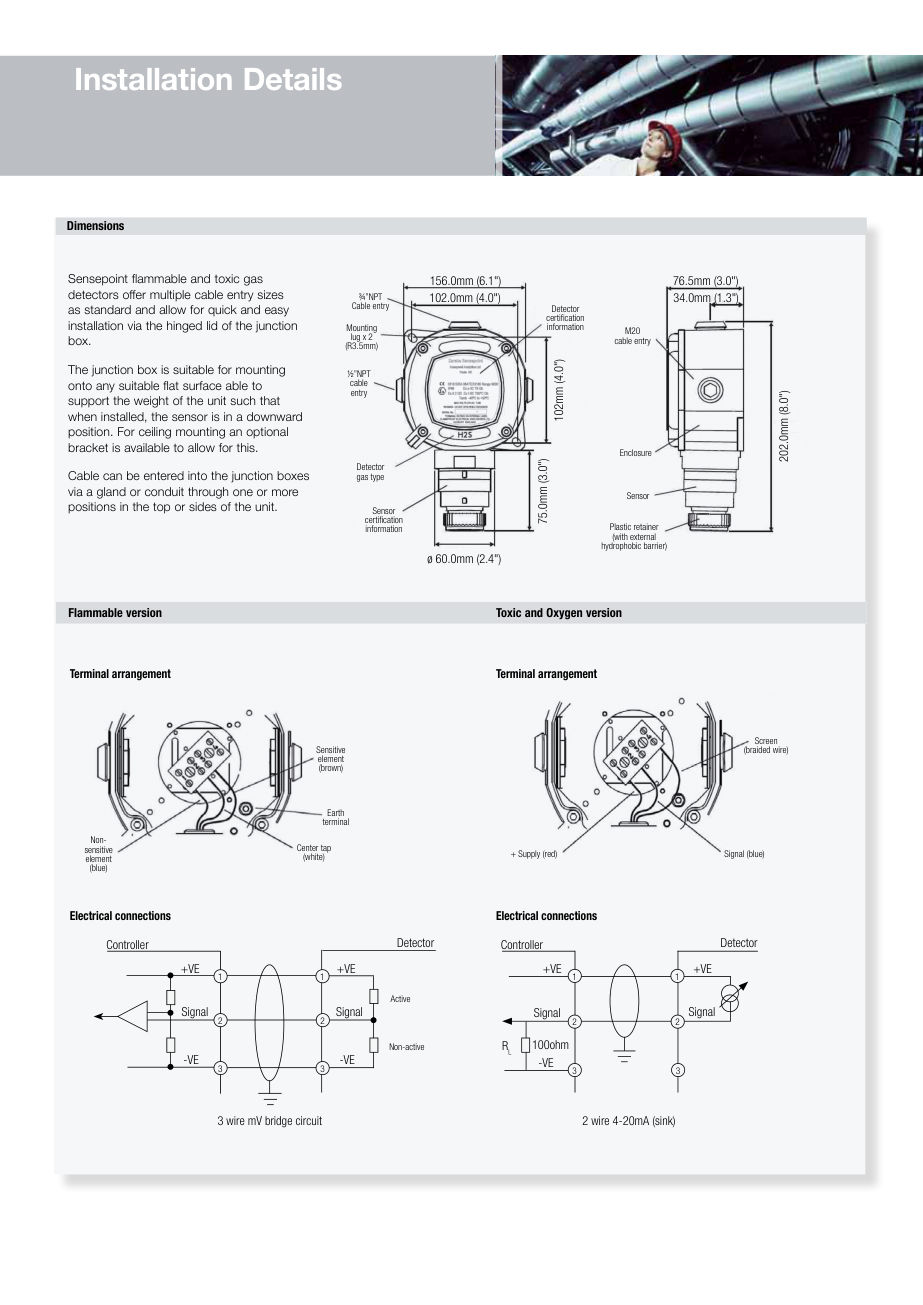

Dimensions: flammable vs toxic/oxygen
Dimensions: flammable vs toxic/oxygen

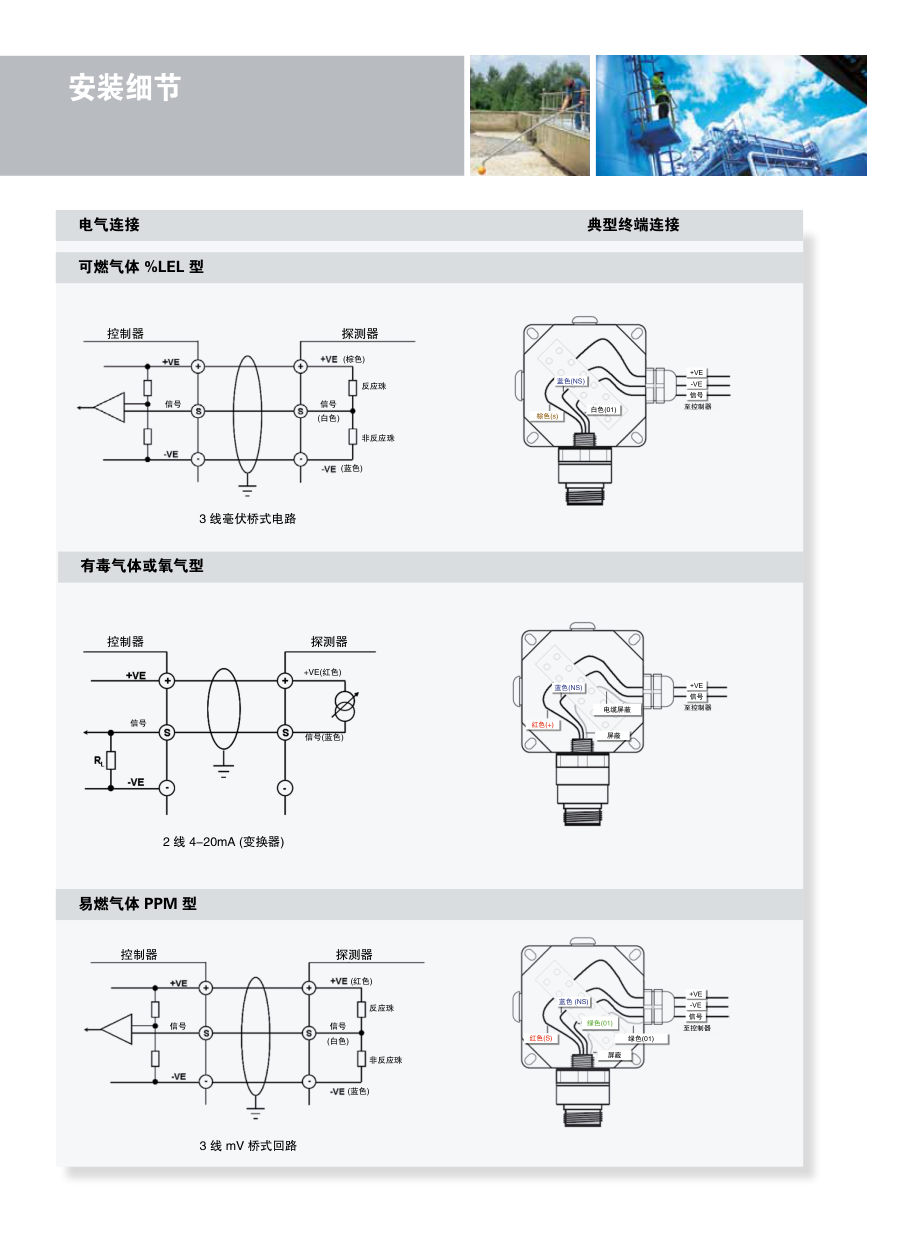

Wiring: mV bridge and 4–20 mA
Wiring: mV bridge and 4–20 mA

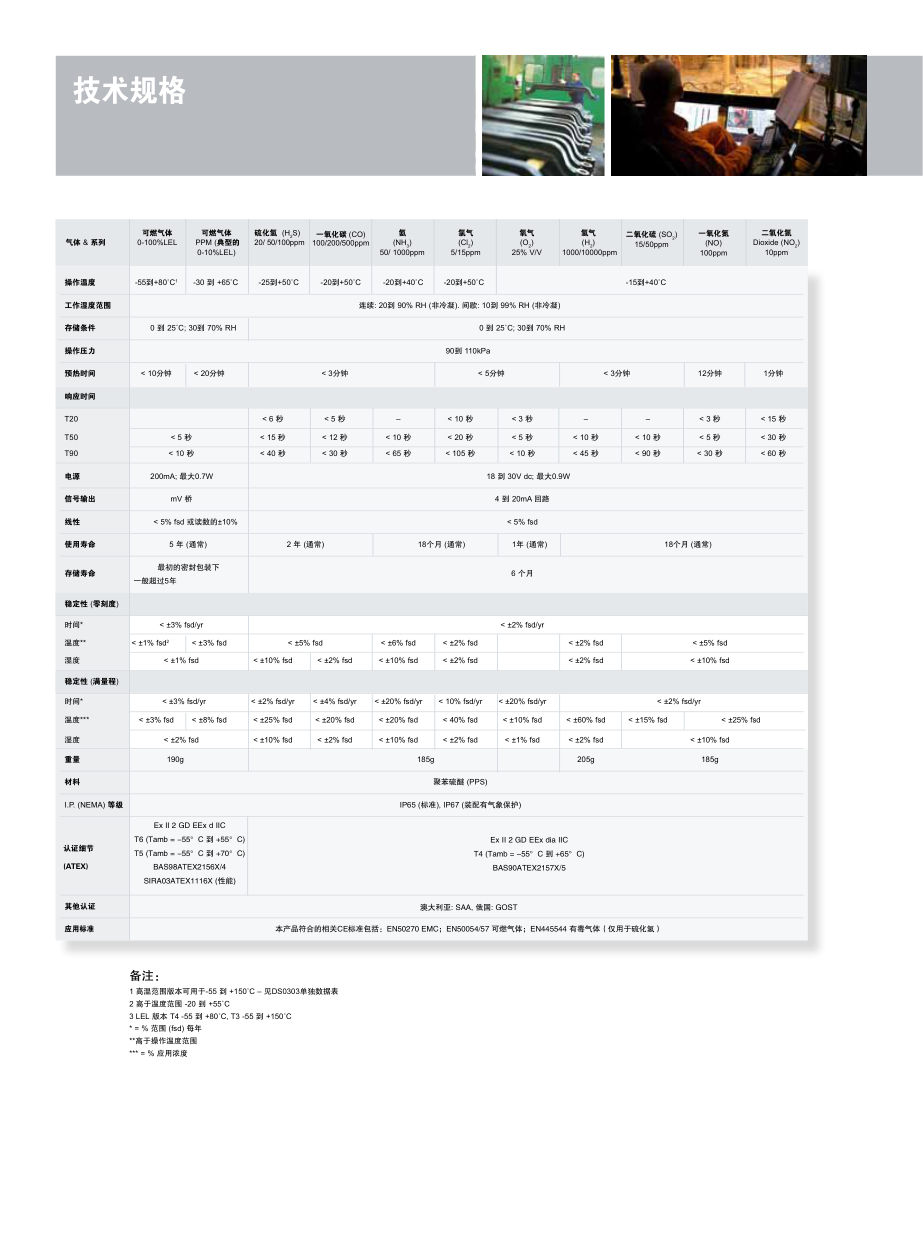

Technical summary
Technical summary

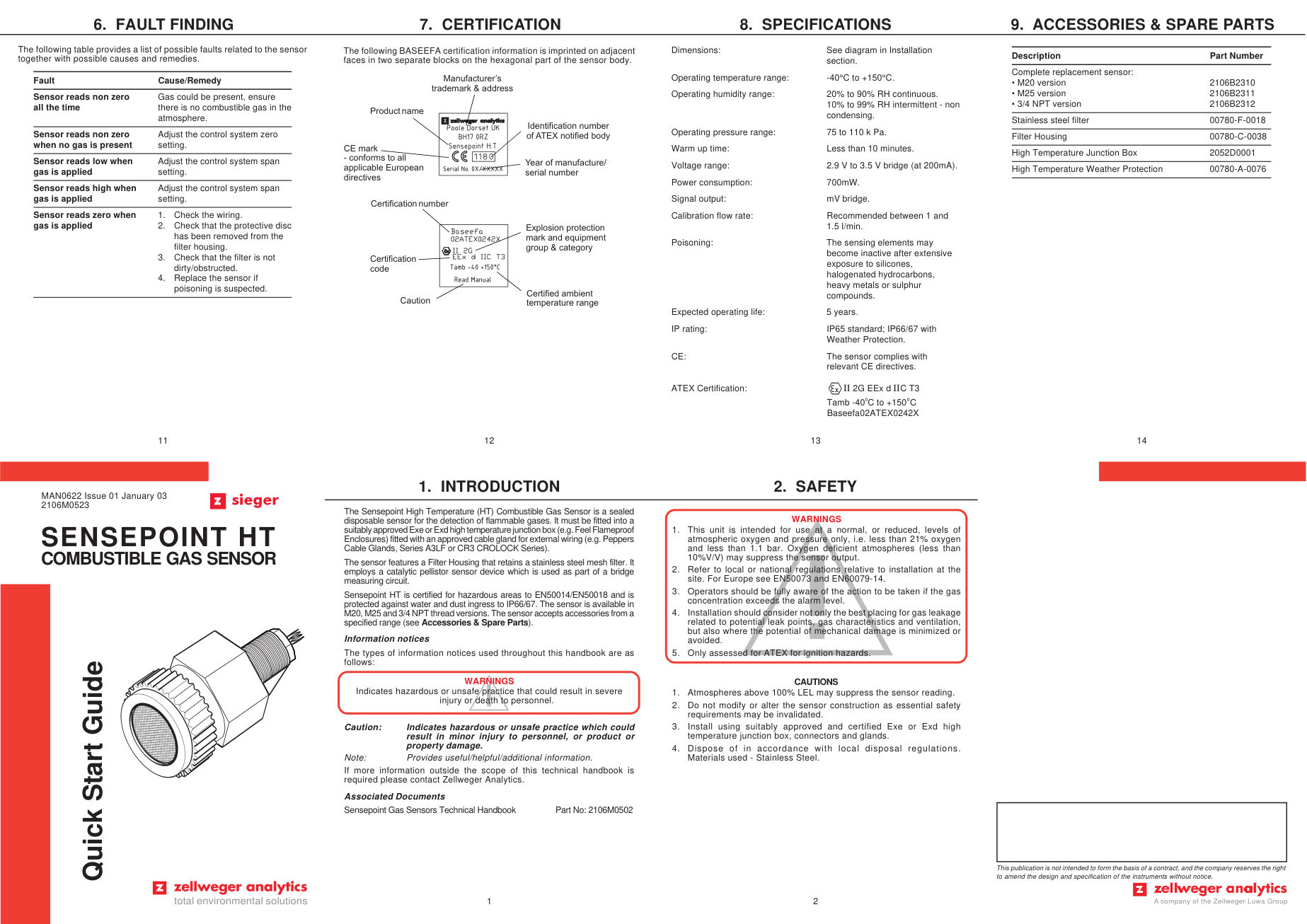

Sensepoint HT high-temperature manual
Sensepoint HT high-temperature manual

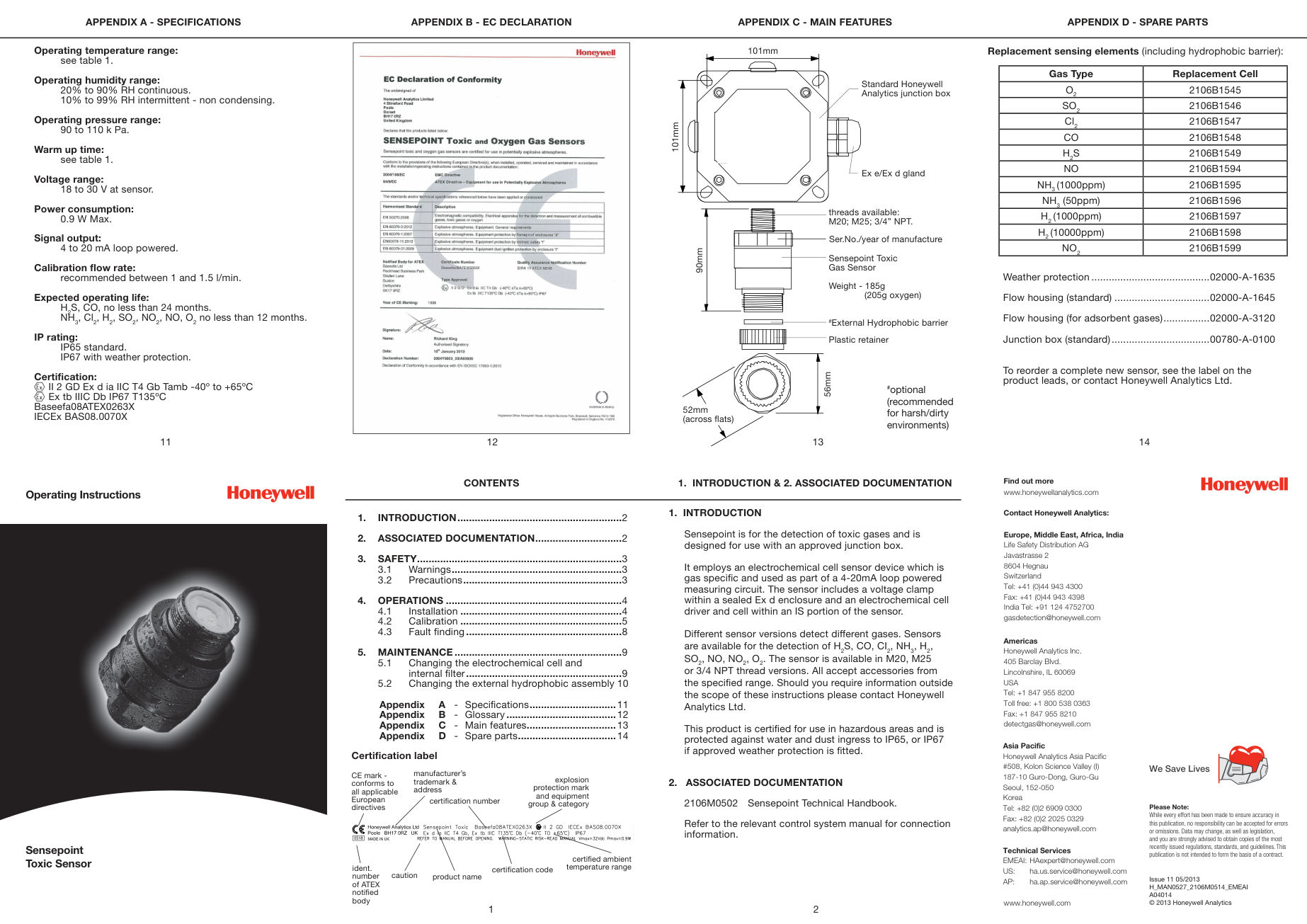

Toxic sensor operating guide
Toxic sensor operating guide

Overview

Sieger Sensepoint flammable, toxic and oxygen detectors provide a high-quality, cost-effective fixed gas monitoring solution. Mount in hazardous areas with suitable Exd or Exe junction boxes; industrial outputs connect to Honeywell Analytics controllers or third-party DCS/PLC systems.

Ordering is organised into three families: HT flammable, standard flammable (%LEL / ppm), and toxic / oxygen (EC 4–20 mA).

  • Flammable: mV bridge, catalytic bead, typical life >5 years
  • Toxic/O₂: factory-calibrated, 2-wire 4–20 mA, IS front end for hot-swap; no sinter — better for “sticky” gases such as Cl₂ and NH₃
  • HT: high-temperature flammable sensors (HT manual & ATEX 0264X)
  • IP65/66; ATEX / IECEx approvals

Features

  • Flammable, toxic and oxygen variants for new-build and retrofit
  • Proven sensors: Surecell™ electrochemical and poison-resistant catalytic beads; typical 2–5 year life
  • Hazardous-area approvals (ATEX etc.); IP65/66
  • Factory set-up, simple replacement, minimal training
  • Accessories: weather housing, flow adaptor, duct kit, collector cone, etc.

Key specifications

ItemValue
SeriesSieger Sensepoint (flam. / HT flam. / toxic & O₂)
GasesFlammable %LEL or ppm; H₂S, CO, NH₃, Cl₂, SO₂, NO, NO₂, H₂, O₂, etc.
PrincipleCatalytic (flam./HT); electrochemical (toxic/O₂)
OutputFlam.: 3-wire mV bridge; toxic/O₂: 2-wire 4–20 mA
ThreadsM20, M25, M26 (some flam.), ¾″ NPT
IngressIP65 / IP66
Junction boxCertified Exd or Exe boxes (optional earth continuity plate)
ApprovalsATEX / IECEx (flam., toxic, HT); selected CSA; EU DoC
EnvironmentIndoor/outdoor hazardous industrial areas (see manuals)

Approvals & certifications

Low-resolution, softened first-page previews only — enough to recognise the scheme and number. Official clear PDFs are supplied after purchase. No certificate downloads on this page.

IECEx · Flammable
IECEx · FlammableIECEx BAS 08.0068X cover for Sensepoint flammable sensors.
ATEX · Flammable
ATEX · FlammableBaseefa08ATEX0265X EC-Type cover for flammable Sensepoint.
IECEx · Toxic / O₂
IECEx · Toxic / O₂IECEx BAS 08.0070X for Sensepoint toxic and oxygen sensors.
ATEX · Toxic / O₂
ATEX · Toxic / O₂Baseefa08ATEX0263X EC-Type for toxic / oxygen Sensepoint.
ATEX · HT Flammable
ATEX · HT FlammableBaseefa08ATEX0264X for Sensepoint HT high-temperature flammable sensors.
CE · HT Sensor
CE · HT SensorCE Declaration of Conformity cover for Sensepoint HT sensors.
EU DoC · Toxic / O₂
EU DoC · Toxic / O₂EU Declaration of Conformity for Sensepoint toxic and oxygen.
ATEX · Junction box
ATEX · Junction boxSira04ATEX3018 EC-Type for Sensepoint junction boxes.
ATEX · Zeta junction box
ATEX · Zeta junction boxSira06ATEX3153 for FEEL Range 2000 / Zeta junction boxes.

Part-number matrix

Filter by HT flammable, standard flammable, or toxic/oxygen. Click a P/N for details.

Part numberFamilyGasRangeThreadApprovalDescription
2106B2310 HT flammable sensorsLEL / Flam.—M20ATEXSensepoint HT Flammable Sensor (ATEX) M20
2106B2311 HT flammable sensorsLEL / Flam.—M25ATEXSENSEPOINT HGH TMP CMB SNSR M25 ATEX
2106B2312 HT flammable sensorsLEL / Flam.—3/4" NPTATEXSensepoint HT Flammable Sensor (ATEX) 3/4 NPT
2106B1200 Standard flammable sensorsLEL / Flam.0–100 LELM20ATEXSENSEPOINT 0-100LEL COMB M20 (ATEX)
2106B1201 Standard flammable sensorsLEL / Flam.0–100 %LELM25—SENSEPOINT 0-100%LEL COMBUSTIBLE M25
2106B1202 Standard flammable sensorsLEL / Flam.0–100 % LELM26—Sensepoint 0-100% LEL Flam. Sensor M26
2106B1203 Standard flammable sensorsLEL / Flam.—M26—Sensepoint Flammable M26 VQ1AB pellistor
2106B1204 Standard flammable sensorsLEL / Flam.0–100 LEL3/4" NPTATEXSENSEPOINT 0-100LEL COMB 34NPT ATEX
2106B1205 Standard flammable sensorsLEL / Flam.0–10 % LEL——SENSEPOINT PPM (0-10% LEL) COMB SEN
2106B1206 Standard flammable sensorsLEL / Flam.—M25—Sensepoint ppm Flam. Sensor M25*
2106B1209 Standard flammable sensorsLEL / Flam.—3/4" NPT—Sensepoint ppm Flam. Sensor 34NPT*
2106B1400 Toxic & oxygen sensorsH₂S0–20 PPMM20—Sensepoint H2S 0-20 ppm Toxic Sensor M20
2106B1401 Toxic & oxygen sensorsH₂S0–50 PPMM20—Sensepoint H2S 0-50 ppm Toxic Sensor M20
2106B1402 Toxic & oxygen sensorsH₂S0–100 PPMM20ATEXSENSEPOINT H2S 0-100PPM M20 (ATEX)
2106B1405 Toxic & oxygen sensorsCO0–100 PPMM20—Sensepoint CO 0-100 ppm Toxic Sensor M20
2106B1406 Toxic & oxygen sensorsCO0–200 PPM——SENSEPOINT CO 0-200 PPM TOXIC SENSOR
2106B1407 Toxic & oxygen sensorsCO0–500 PPMM20—Sensepoint CO 0-500 ppm Toxic Sensor M20
2106B1410 Toxic & oxygen sensorsCl₂0–5 PPM——SENSEPOINT CL2 0-5 PPM TOXIC SENSOR
2106B1411 Toxic & oxygen sensorsCl₂0–15 PPMM20—Sensepoint Cl2 0-15 ppm Toxic Sensor M20
2106B1413 Toxic & oxygen sensorsNH₃0–50 PPMM20—Sensepoint NH3 0-50 ppm Toxic Sensor M20
2106B1414 Toxic & oxygen sensorsNH₃0–1000 PPMM20—Sensepoint NH3 0-1000 ppm Toxic Sensor M20
2106B1415 Toxic & oxygen sensorsNH₃0–100 PPMM20—Sensepoint NH3 0-100 ppm Toxic Sensor M20
2106B1416 Toxic & oxygen sensorsH₂—M20ATEXSENSEPOINT 1000PPM H2 M20 (ATEX)
2106B1417 Toxic & oxygen sensorsH₂0–10000 PPMM20—Sensepoint H2 0-10000 ppm Toxic Sensor M20
2106B1418 Toxic & oxygen sensorsNO0–100 PPMM20—Sensepoint NO 0-100 ppm Toxic Sensor M20
2106B1420 Toxic & oxygen sensorsSO₂0–15 PPMM20—Sensepoint SO2 0-15 ppm Toxic Sensor M20
2106B1421 Toxic & oxygen sensorsSO₂0–50 PPMM20—Sensepoint SO2 0-50 ppm Toxic Sensor M20
2106B1422 Toxic & oxygen sensorsNO₂0–10 PPMM20—Sensepoint NO2 0-10 ppm Toxic Sensor M20
2106B1432 Toxic & oxygen sensorsO₂0–25 %v/vM20—Sensepoint O2 25% VV Toxic Sensor M20
2106B1500 Toxic & oxygen sensorsH₂S0–20 PPMM25—Sensepoint H2S 0-20 ppm Toxic Sensor M25
2106B1501 Toxic & oxygen sensorsH₂S0–50 PPMM25—Sensepoint H2S 0-50 ppm Toxic Sensor M25
2106B1502 Toxic & oxygen sensorsH₂S0–100 PPMM25—Sensepoint H2S 0-100 ppm Toxic Sensor M25
2106B1505 Toxic & oxygen sensorsCO0–100 PPMM25—Sensepoint CO 0-100 ppm Toxic Sensor M25
2106B1506 Toxic & oxygen sensorsCO0–200 PPMM25—Sensepoint CO 0-200 ppm Toxic Sensor M25
2106B1507 Toxic & oxygen sensorsCO0–500 PPMM25—Sensepoint CO 0-500 ppm Toxic Sensor M25
2106B1510 Toxic & oxygen sensorsCl₂0–5 PPMM25—Sensepoint Cl2 0-5 ppm Toxic Sensor M25
2106B1511 Toxic & oxygen sensorsCl₂0–15 PPMM25—Sensepoint Cl2 0-15 ppm Toxic Sensor M25
2106B1513 Toxic & oxygen sensorsNH₃0–50 PPMM25—Sensepoint NH3 0-50 ppm Toxic Sensor M25
2106B1514 Toxic & oxygen sensorsNH₃0–1000 PPMM25—Sensepoint NH3 0-1000 ppm Toxic Sensor M25
2106B1515 Toxic & oxygen sensorsNH₃0–100 PPMM25—Sensepoint NH3 0-100 ppm Toxic Sensor M25
2106B1516 Toxic & oxygen sensorsH₂0–1000 PPMM25—Sensepoint H2 0-1000 ppm Toxic Sensor M25
2106B1517 Toxic & oxygen sensorsH₂0–10000 PPMM25—Sensepoint H2 0-10000 ppm Toxic Sensor M25
2106B1518 Toxic & oxygen sensorsNO0–100 PPMM25—Sensepoint NO 0-100 ppm Toxic Sensor M25
2106B1520 Toxic & oxygen sensorsSO₂0–15 PPMM25—Sensepoint SO2 0-15 ppm Toxic Sensor M25
2106B1521 Toxic & oxygen sensorsSO₂0–50 PPMM25—Sensepoint SO2 0-50 ppm Toxic Sensor M25
2106B1522 Toxic & oxygen sensorsNO₂0–10 PPMM25—Sensepoint NO2 0-10 ppm Toxic Sensor M25
2106B1532 Toxic & oxygen sensorsO₂0–25 %v/vM25—Sensepoint O2 25% VV Toxic Sensor M25
2106B1700 Toxic & oxygen sensorsH₂S0–20 PPM3/4" NPT—Sensepoint H2S 0-20 ppm Toxic Sensor 34NPT
2106B1701 Toxic & oxygen sensorsH₂S0–50 PPM3/4" NPTATEXSENSEPOINT H2S 0-50PPM 34NPT (ATEX)
2106B1702 Toxic & oxygen sensorsH₂S0–100 PPM3/4" NPT—Sensepoint H2S 0-100 ppm Toxic Sensor 34NPT
2106B1706 Toxic & oxygen sensorsCO0–200 PPM3/4" NPT—Sensepoint CO 0-200 ppm Toxic Sensor 34NPT
2106B1707 Toxic & oxygen sensorsCO0–500 PPM3/4" NPT—Sensepoint CO 0-500 ppm Toxic Sensor 34NPT
2106B1710 Toxic & oxygen sensorsCl₂0–5 PPM3/4" NPT—Chlorine (Cl2) 0-5 ppm 34NPT
2106B1711 Toxic & oxygen sensorsCl₂0–15 PPM3/4" NPT—Sensepoint Cl2 0-15 ppm Toxic Sensor 34NPT
2106B1713 Toxic & oxygen sensorsNH₃0–50 PPM3/4" NPTATEXSENSEPOINT NH3 0-50PPM 34NPT (ATEX)
2106B1714 Toxic & oxygen sensorsNH₃0–1000 PPM3/4" NPT—Sensepoint NH3 0-1000 ppm Toxic Sensor 34NPT
2106B1715 Toxic & oxygen sensorsNH₃0–100 PPM——SENSEPOINT NH3 0-100 PPM 34 NPT
2106B1718 Toxic & oxygen sensorsNO0–100 PPM3/4" NPT—Sensepoint NO 0-100 ppm Toxic Sensor 34NPT
2106B1730 Toxic & oxygen sensorsO₂0–25 %v/v3/4" NPT—Oxygen (O2) 25% VV 34NPT
2106B1732 Toxic & oxygen sensorsO₂0–25 %v/v3/4" NPT—Sensepoint O2 25% VV Toxic Sensor 34NPT
2106B1800 Toxic & oxygen sensorsH₂S0–20 PPM3/4" NPTCSASensepoint H2S 0-20 ppm Toxic Sensor 34NPT CSA
2106B1801 Toxic & oxygen sensorsH₂S0–50 PPM3/4" NPTCSASensepoint H2S 0-50 ppm Toxic Sensor 34NPT CSA
2106B1802 Toxic & oxygen sensorsH₂S0–100 PPM3/4" NPTCSASensepoint H2S 0-100 ppm Toxic Sensor 34NPT CSA
2106B1805 Toxic & oxygen sensorsCO0–100 PPM3/4" NPTCSASensepoint CO 0-100 ppm Toxic Sensor 34NPT CSA
2106B1806 Toxic & oxygen sensorsCO0–200 PPM3/4" NPTCSASensepoint CO 0-200 ppm Toxic Sensor 34NPT CSA
2106B1807 Toxic & oxygen sensorsCO0–500 PPM3/4" NPTCSASensepoint CO 0-500 ppm Toxic Sensor 34NPT CSA
2106B1810 Toxic & oxygen sensorsCl₂0–5 PPM3/4" NPTCSASensepoint Cl2 0-5 ppm Toxic Sensor 34NPT CSA
2106B1811 Toxic & oxygen sensorsCl₂0–15 PPM3/4" NPTCSASensepoint Cl2 0-15 ppm Toxic Sensor 34NPT CSA
2106B1813 Toxic & oxygen sensorsNH₃0–50 PPM3/4" NPTCSASensepoint NH3 0-50 ppm Toxic Sensor 34NPT CSA
2106B1814 Toxic & oxygen sensorsNH₃0–1000 PPM3/4" NPTCSASensepoint NH3 0-1000 ppm Toxic Sensor 34NPT CSA
2106B1815 Toxic & oxygen sensorsNH₃0–100 PPM3/4" NPTCSASensepoint NH3 0-100 ppm Toxic Sensor 34NPT CSA
2106B1816 Toxic & oxygen sensorsH₂0–1000 PPM3/4" NPTCSASensepoint H2 0-1000 ppm Toxic Sensor 34NPT CSA
2106B1817 Toxic & oxygen sensorsH₂0–10000 PPM3/4" NPTCSASensepoint H2 0-10000ppm Toxic Sensor 34NPT CSA
2106B1818 Toxic & oxygen sensorsNO0–100 PPM3/4" NPTCSASensepoint NO 0-100 ppm Toxic Sensor 34NPT CSA
2106B1820 Toxic & oxygen sensorsSO₂0–15 PPM3/4" NPTCSASensepoint SO2 0-15 ppm Toxic Sensor 34NPT CSA
2106B1821 Toxic & oxygen sensorsSO₂0–50 PPM3/4" NPTCSASensepoint SO2 0-50 ppm Toxic Sensor 34NPT CSA
2106B1822 Toxic & oxygen sensorsNO₂0–10 PPM3/4" NPTCSASensepoint NO2 0-10 ppm Toxic Sensor 34NPT CSA
2106B1832 Toxic & oxygen sensorsO₂0–25 %v/v3/4" NPTCSASensepoint O2 25% VV Toxic Sensor 34NPT CSA

Full part-number index
