| Item | Value |
|---|---|
| Measured gases | |
| Measuring range | |
| Detection principle | electrochemical |
| Accuracy | |
| Resolution | |
| Response time | |
| Ingress protection | IP-65 |
| Explosion protection | |
| Operating temperature | -20℃ ~ +50℃ |
| Power supply | |
| Output signal |
MultiRAE 2 is a new generation of 6-in-1 composite gas detector newly developed by Huarui, which is suitable for all RAE sensors including EC, LEL, TC, PID, IR, Gamma, etc., and various sensors can be combined and flexibly configured. High accuracy, suitable for use in various hazardous environments.

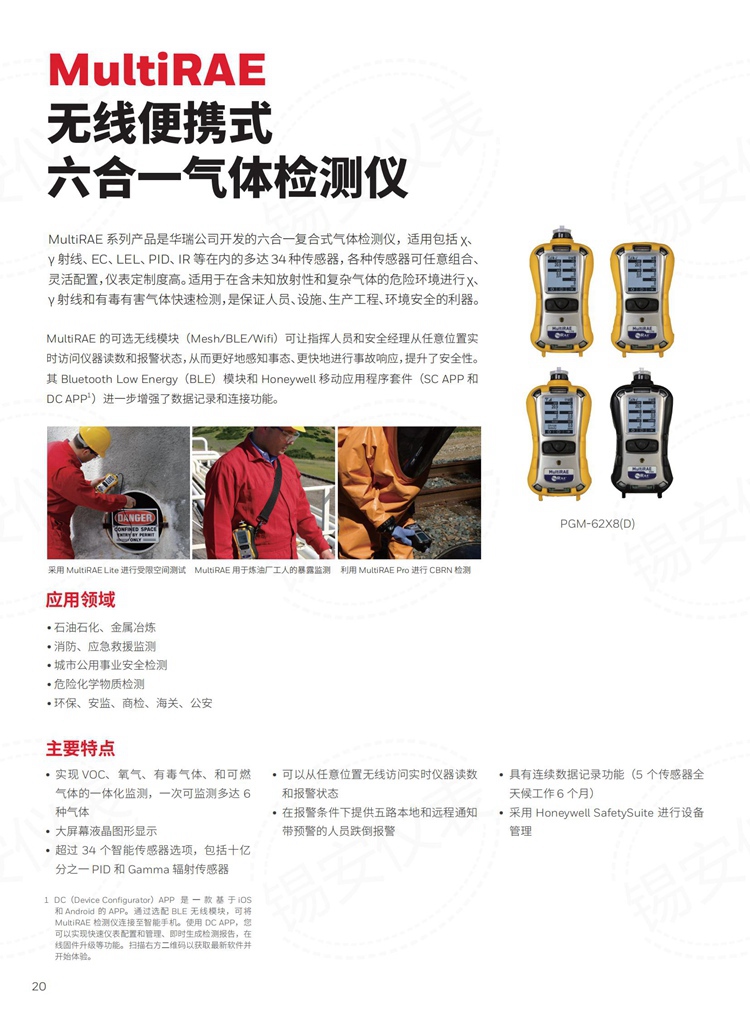

Honeywell MultiRAE 2 6-in-1 toxic and harmful gas detector PGM-62X8
The MultiRAE series is a high-performance portable detector that provides continuous monitoring of a wide range of gases (VOCs, flammable gases, and toxic gases), radiation, and a fall alarm. MultiRAE detectors use industry-leading field-plug-and-play electrochemical, catalytic combustion, non-dispersive infrared, PID (photoionization detector), and ray sensors to suit the inspection needs of different industries.
The wireless capabilities of the MultiRAE series allow safety officers to access meter data and alarm status in real time, anywhere. Intuitive data shows faster response times, thus taking worker protection to the next level.
※ Smart sensor, each sensor slot can be combined arbitrarily
※ The sensors can be arbitrarily interchangeable on site
※ High accuracy, short response time, wide detection range
※ Large LCD graphic display
※ Chinese menu display
※ Rechargeable lithium battery for long use
※ Built-in data storage
※ Equipped with a motion detection device to improve the protection of personnel
※ Supports wireless data transmission
※ Powerful sound, light and vibration alarm and various alarm systems
※ Sturdy shell that is waterproof and dustproof, high Ingress protection
MultiRAE Series instruments can be fitted with 1 to 5 sensors (some are dual gas sensors), depending on the configuration. To maximize readability and increase the amount of information displayed, the display is automatically reconfigured based on the number and type of sensors in MultiRAE.
When only one or two sensors are available, the readings and units of the meter display data are magnified for easy reading.

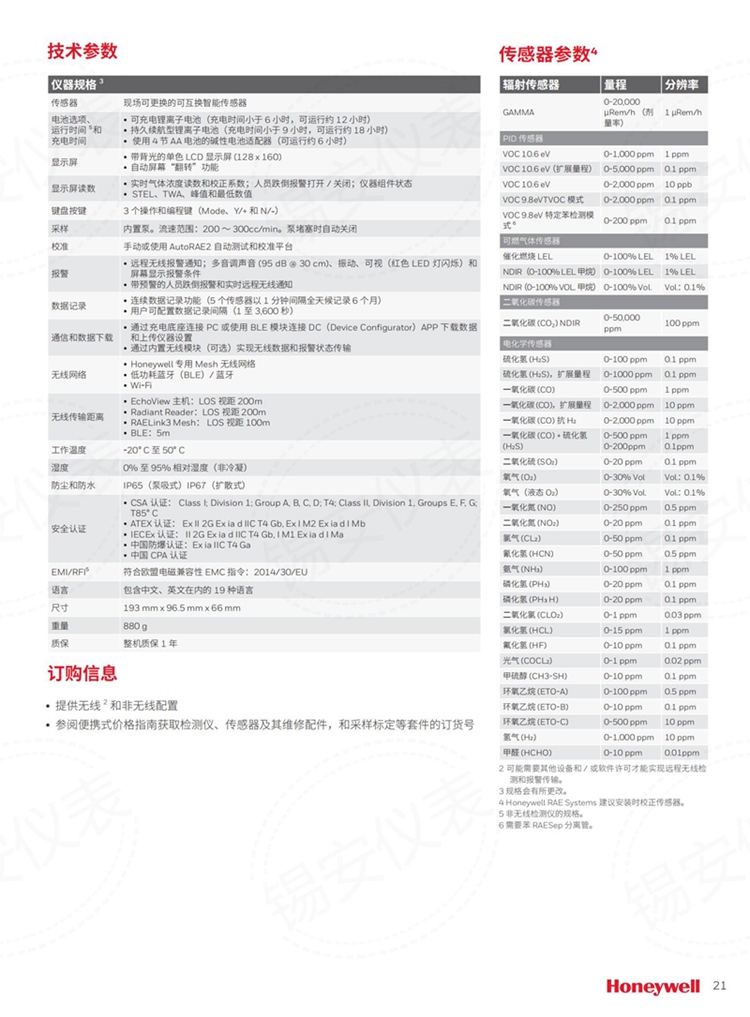

Huarui PGM-6208 sensor parameters
Notes:
CIO2 and H2S sensors cannot be used in the same instrument at the same time;
NO and NH3 sensors cannot be used in the same instrument at the same time;
PID sensors need to use pump suction instruments;
If an NDIR sensor of %Vol is installed in the instrument, an additional catalytic combustion%LEL sensor is installed in the instrument.
Supported sensors: PID/LEL/TC/EC/NDIR/Gamma
Charger Strap: Travel charger with USB interface
Alarm style: audible alarm 95 dB@30cm, red LED alarm light, vibration alarm
Display: Monochrome dot matrix LCD graphic display
Backlight: Manual, automatic when alarmed
Keyboard: 3 keys
Direct readings: measured values, battery, data logging status, pump status
Sampling method: pump suction type/diffusion type
Calibration: Two-point calibration, calibration value can be set
Ingress protection：IP-65
Calibration Equipment: Supports AutoRAE 2 automatic calibration platform
Protection: Calibration, alarm and other limits are set with password protection
Humidity: 0 - 95% relative humidity (non-condensing)
Warranty: One year warranty
It is suitable for industrial safety monitoring and on-site inspection scenarios.
Part Number MultiRAE (Sensor、).Price excluded, .
| Category | Part Number | |
|---|---|---|
| Sensor Accessories | 00-0-5007-002 | P2P License & BLE Upgrade( ) |
| Sensor Accessories | 00-0-5007-003 | P2P License( includes ) |
| Sensor Accessories | M01-03-14-000 | BLE |
| Sensor Accessories | C03-20-28-000 | pumpdummy position |
| PID | C03-09-12-01 | PID 9.8eV Sensor |
| PID | C03-09-12-02 | PID 10.6eV Sensor |
| PID | C03-09-12-03 | PID 11.7eV Sensor |
| PID | C03-09-12-10 | PID 9.8eV( Range) |
| C03-09-50-00 | NH3 Sensor | |
| C03-09-03-00 | CO Sensor | |
| C03-09-06-00 | CO( Range)Sensor | |
| C03-09-79-00 | CO(H2 )Sensor | |
| C03-09-13-00 | CO + H2S Sensor | |
| C03-09-78-00 | Cl2 Sensor | |
| C03-09-56-00 | ClO2 Sensor | |
| C03-09-54-00 | ETO-A Sensor | |
| C03-09-22-00 | ETO-B Sensor | |
| C03-09-23-00 | ETO-C Sensor | |
| C03-09-82-00 | HCHO Sensor | |
| C03-09-81-00 | H2 Sensor | |
| C03-09-49-00 | HCN Sensor | |
| C03-09-04-00 | H2S Sensor | |
| C03-09-07-01 | H2S-H RangeSensor | |
| C03-09-80-00 | CH3-SH Sensor | |
| C03-09-74-00 | NO Sensor | |
| C03-09-75-00 | NO2 Sensor | |
| C03-09-42-00 | O2 Sensor | |
| C03-09-08-00 | O2* Sensor | |
| C03-09-76-00 | PH3 Sensor | |
| C03-09-73-00 | SO2 Sensor | |
| C03-09-77-00 | HCl Sensor | |
| C03-09-53-00 | HF Sensor | |
| C03-09-57-00 | COCl2 Sensor | |
| C03-09-11-00 | LEL Sensor | |
| C03-09-62-00 | CH4 NDIR Range Sensor | |
| C03-09-63-00 | CH4 NDIR Range Sensor | |
| C03-09-61-00 | CO2 NDIR Sensor | |
| C03-09-86-00 | Gamma Sensor | |
| M01-11-14-000 | Description pending confirmation. | |
| M01-31-14-000 | Pump assembly | |
| M01-32-08-400 | Upper cover | |
| M01-30-02-000 | Lower cover | |
| M01-30-05-000 | LCD screen | |
| M01-32-25-000 | Description pending confirmation. | |
| M01-30-53-000 | Lithium battery | |
| M01-30-55-000 | Description pending confirmation. | |
| M01-30-54-001 | Lithium battery | |
| M01-30-21-000 | wireless | |
| M01-20-66-000 | P2P | |
| 50-0-036-101 | Optional | |
| 41-0-023-000 | pump | |
| M01-30-25-000 | Description pending confirmation. | |
| M01-21-10-000 | Description pending confirmation. | |
| 02-0-248-000 | pump | |
| 50-0-087-000 | power adapter | |
| M01-03-06-000 | ( includes power adapter) | |
| M01-03-07-000 | Description pending confirmation. | |
| M01-03-08-000 | Description pending confirmation. | |
| 003-3004-000 | 2V |
