| Item | Value |
|---|---|
| Measured gases | CO carbon monoxide、H2S hydrogen sulfide |
| Measuring range | Different gases have different Measuring ranges |
| Detection principle | electrochemical |
| Accuracy | |
| Resolution | |
| Response time | |
| Ingress protection | IP 66/67 |
| Explosion protection | |
| Operating temperature | 20 to 50°C/-4 to +122°F |
| Power supply | |
| Output signal |
Introduction of GAXT-Mcarbon monoxide detector:
GAXT-Mcarbon monoxide gas detector is suitable for harsh environments, and the product is small in size, light in weight and easy to carry;
portableBW GAXT-M gas detector has a 95 decibel alarm sound and a bright LED indicator flashing when alarming;
The GAXT gas sensor has a 2-year battery life and can replace the 3V camera battery;
BW GAXT gas detector has a built-in vibration alarm function, which is suitable for use in high-noise situations;
The GAXT-Mcarbon monoxide detector displays peaks at the push of a button.

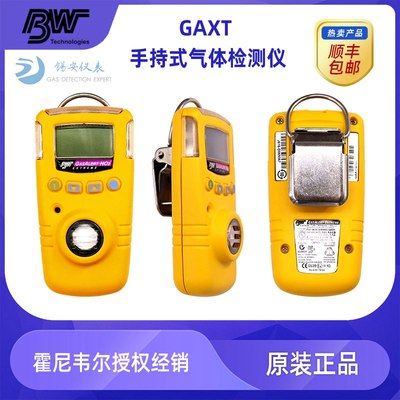

BW GAXT-M gas detector product diagram:
Product brochure of BW portableSingle-gas detectors in Canada
BW GAXT gas detector has the following advantages:
1. GAXT-Mcarbon monoxide gas detector Ingress protection IP66/67 high waterproof and dustproof design, suitable for use in harsh environments;
2. BW GAXT-V gas detector has a simple automatic calibration program and can replace the plug-in sensor;
3. Test caps and hoses, batteries, sensors and instruments with GAXT gas detector, and instructions in Chinese and English
4. GAXT-M gas detector LCD digital display readings and status display
5. The service life of the gas sensor of GAXT series is greater than or equal to 3 years
BW GAXT is a series of sensors that can detect a variety of single-gas detectors such as oxygen, carbon monoxide, hydrogen sulfide, sulfur dioxide, etc., and the corresponding measuring range is different for different gases, and the corresponding sensors are also different, if you want to know more about BW GAXT gas detector, please see the table below or consult BW gas Detector staff,
| model | Instrument description: |
| Random |
Replaceable battery and sensor, stainless steel card holder, test card cap and hose, BW quality inspection report, Chinese and English instructions |
| Function |
LCD digital display, sound and light alarm, built-in high and low limit and TWA/STEL alarm and peak, start automatic test function, multi-language display selection |
| GAXT-X | O2 detector (Measuring range: 0-30.0%) low limit alarm 19.5%, high limit alarm 22.5% |
| GAXT-H | H2S detector (Measuring range: 0-100ppm) is 10ppm low, 15ppm high, and TWA is 10ppm |
| GAXT-M | CO detector (Measuring range: 0-999ppm) is 35ppm low, 200ppm high, and TWA is 35ppm |
| GAXT-S | SO2 detector (Measuring range: 0-100ppm) is 2ppm low, 5ppm high, and TWA is 2ppm |
| GAXT-C | Cl2 detector (Measuring range: 0-50.0ppm) is 0.5ppm low, 1.0ppm high, and TWA is 0.5ppm |
| GAXT-Z | HCN detector (Measuring range: 0-30.0ppm) is 4.7ppm low, 10ppm high, and TWA is 4.7ppm |
| GAXT-D | NO2 detector (Measuring range: 0-99.9ppm) is 2.0ppm low, 5.0ppm high, and TWA2.0ppm |
| GAXT-A | NH3 detector (Measuring range: 0-100ppm) is 25 ppm low, 50 ppm high, and TWA is 25 ppm |
| GAXT-P | PH3 detector (Measuring range: 0-5.0ppm) is 0.3ppm low, 1.0ppm high, and TWA is 0.3ppm |
| GAXT-G | O3 detector (Measuring range: 0-1.0ppm) is 0.1ppm low, 0.2ppm high, and TWA is 0.1ppm |
| GAXT-E | ETO detector (Measuring range: 0-100.0ppm) is 1ppm low, 5ppm high, and TWA1ppm |
| GAXT-N | NO detector (Measuring range: 0-250ppm) is 25 ppm low, 50 ppm high, and TWA is 25 ppm |
| GAXT-V | ClO2 detector (Measuring range: 0-1.0ppm) is 0.1ppm low, 0.3ppm high, and TWA is 0.1ppm |
| Select Memory | The factory sets 5 seconds/set of data, and the monthly data storage capacity can be set to 1-60 seconds/group |
It is suitable for industrial safety monitoring and on-site inspection scenarios.
