| Item | Value |
|---|---|
| Measured gases | LPG LPG, CH4methane, H2hydrogen, COcarbon monoxide, O2oxygen, H2Shydrogen sulfide, LEL flammable gas, C2H6 ethane |
| Measuring range | H2S:0-100PPM CO:0-500PPM O2:0-30% LEL:0-100%LEL |
| Detection principle | catalytic combustion、electrochemical |
| Accuracy | |
| Resolution | H₂S 1 ppm CO 1 ppm O₂ 0.1% LEL 1% |
| Response time | T90<=30S |
| Ingress protection | IP68 |
| Explosion protection | |
| Operating temperature | -20 to +50 °C |
| Power supply | |
| Output signal |

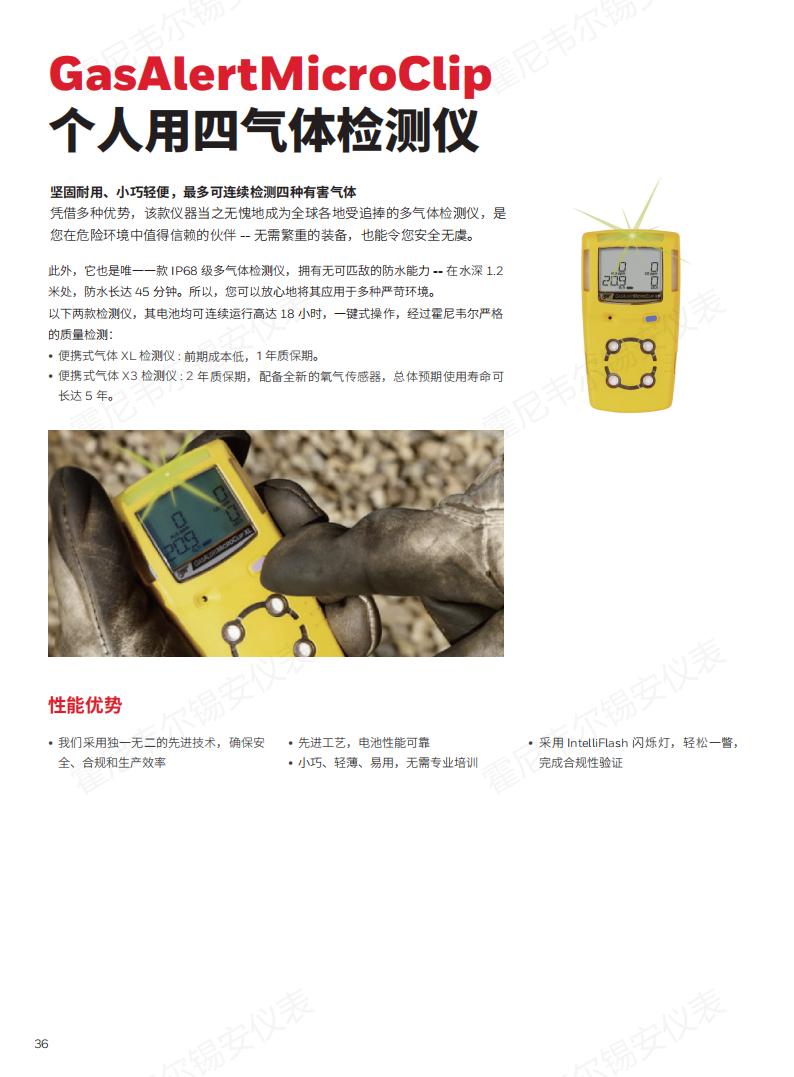

Robust, compact and lightweight, it can detect up to four harmful gases in a row
With its many benefits, this instrument is a sought-after multi-gas detector around the world, and is your trusted companion in hazardous environments -- without the need for heavy equipment.
In addition, it is the only IP68-rated multi-gas detector with unrivaled water resistance – water resistance for up to 45 minutes at a depth of 1.2 meters. So you can use it in a wide range of harsh environments with confidence. The following two detectors have batteries that can run continuously for up to 18 hours, are operated at the touch of a button, and have undergone rigorous quality testing by Honeywell:
• Honeywell BWportableMCXL 4-in-1 gas detector: 1-year warranty.
• Honeywell BWportable MCX3 4-in-1 gas detector: 2-year warranty with a new oxygen sensor and an overall life expectancy of up to five years.
• We use unique advanced technologies to ensure safety, compliance, and productivity
• Advanced technology, reliable battery performance
• Small, thin, and easy to use, no professional training required
• Complete compliance verification with IntelliFlash flashing lights for an easy glance

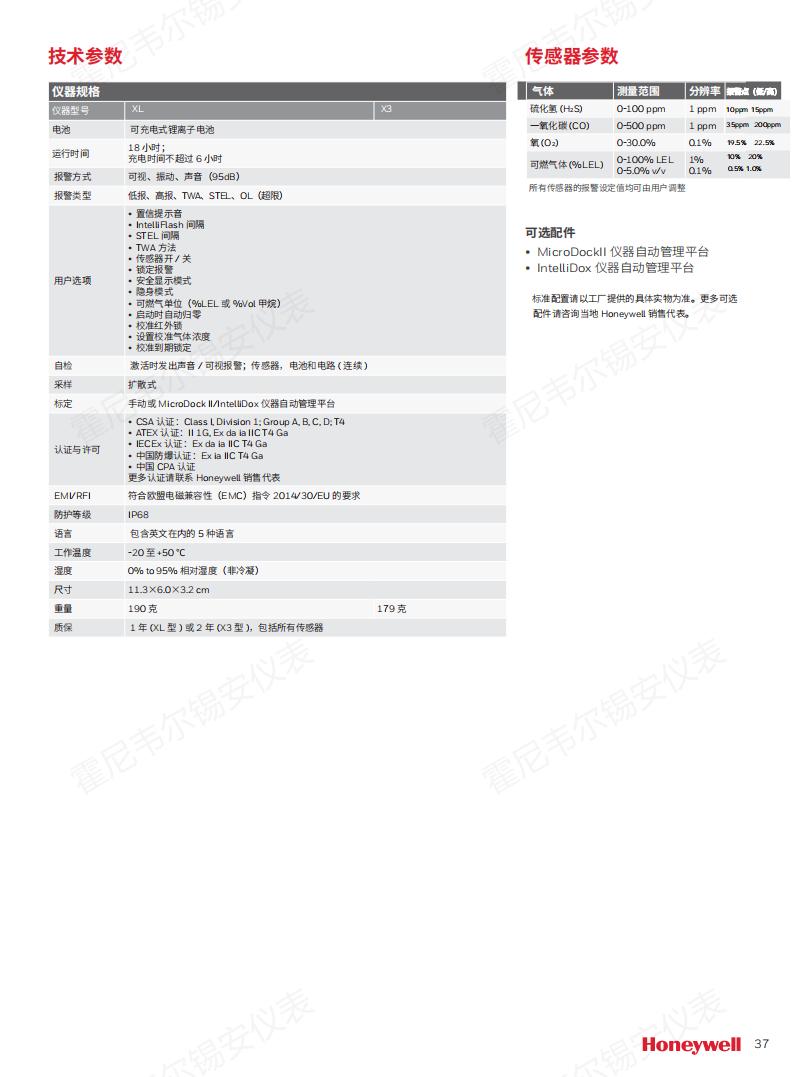

Sensor technical parameters
| sensors | Detection range | Resolution |
| H2S | 0-100ppm | 1ppm |
| CO | 0-500ppm | 1ppm |
| LEL | 0-LEL | 1%LEL |
| 0-5.0% v/v | 0.1%v/v | |
| O2 | 0-30.0%VOL | 0.1%VOL |
| Parameter table of MCXL 4-in-1 gas detector: | |
| Size: | 4.4 x 2.4 x 1.2 inches / 11.3 x 6.0 x 3.1 cm |
| Weight: | 6.7 oz / 190 g |
| Temperature: | -4 to +122°C / -20 to +50°C |
| Humidity: | 0% - 95% relative humidity (non-condensing) |
| Alerts: | Vision, vibration and sound (95 dB) - Low, high, STEL, TWA, OL (over-limit) sound/visual alarms, sensors, battery and line at start of test (uninterrupted) |
| Pump: | Compatible with Sampler electric sampling pumps |
| Working Hours: | More than 14 hours, 3 hours of charging |
| Explosion protection： | IP66/67 |
| EMI/RFI: | MEC Directtive 89/336/EEC compliant |
| Time Record: | More than 10 alarm events can be recorded, including gas type, exposure value, alarm duration, etc |
| Data Logger: | The user-downloadable data logger records 16 hours of data on a rolling basis, with a default recording time interval of 15 seconds |
| Maintenance: | One year warranty (including all sensors) |
| Sensor Lifespan: | O2≥2 years, other ≥ 3 years |
Standard configuration
|
It is suitable for industrial safety monitoring and on-site inspection scenarios.
