| Item | Value |
|---|---|
| Measured gases | NH3ammonia, H2hydrogen, COcarbon monoxide, SO2 sulfur dioxide, O2oxygen, CL2 chlorine |
| Measuring range | CO 0-999ppm |
| Detection principle | electrochemical |
| Accuracy | ±2ppm |
| Resolution | 1PPM |
| Response time | Less than 10 seconds |
| Ingress protection | IP67 |
| Explosion protection | North America: Class1, Div1, Groups A, B, C, D, T4 (UL/c UL); China: EEx i |
| Operating temperature | -20℃~ +50℃ |
| Power supply | Replaceable lithium battery with 3 years life |
| Output signal |
The compact design of the MINIMAX-XP series toxic gas or oxygen Single-gas detectors and easy maintenance are essential features of this model. XP emits a loud sound and super bright light alarm when alarmed. The standard configuration also features a vibration alarm function to attract the attention of the user when used in noisy environments.
MINIMAX-XP has stable and reliable performance, accurate readings, and resistance to electromagnetic interference. In addition, it also has a continuous display of gas concentration values. Displays 15-minute and 8-hour averages. Two-level alarm and peak lock function.
The MINIMAX-XP uses temperature correction and anti-poison sensors. XP ensures high accuracy during repeated measurements.
MINIMAX-XP is inexpensive to run. The built-in attenuation compensation battery extends the time between calibrations to 12 months, the usual sensor life is greater than two years, the battery life is three years, and the operating cost is very affordable. Battery and sensor replacement are easy.

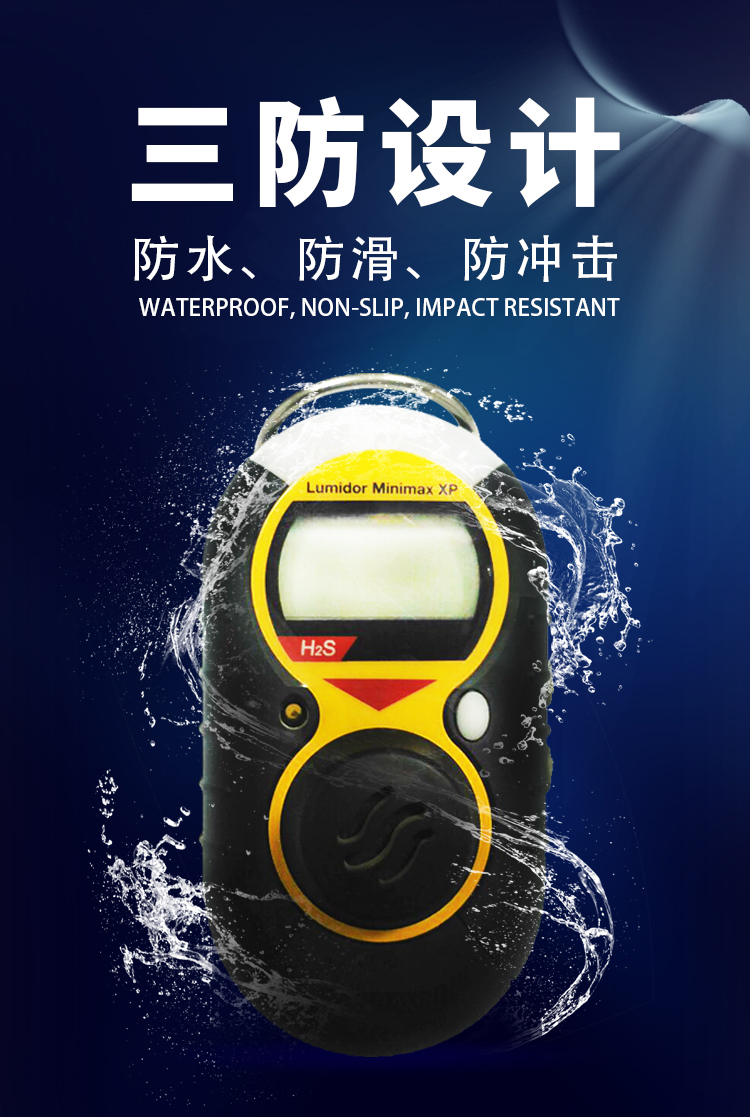

The MINIMAX-XP has a rugged and compact and lightweight housing, making it easy to carry, and the case is hard and resistant to impact.
The ultra-clear large LCD display allows the concentration of the MINIMAX-XP gas sensor to be continuously displayed, with an average planting of 8 hours and 15 minutes, a two-level alarm and a peak planting record. Automatic self-test, automatically display the battery level, correction status.
Operability Self-test with one-button operation to turn on, using sensor technology, temperature compensation, anti-shock, anti-electromagnetic interference.
Alarm function Alarm volume is clear, flashing alarm light quickly, level 2 alarm (95 decibels), vibration alarm.
HoneywellMINIMAX XPgas detector is worth the money Battery compensation is calibrated once every 12 months, battery and sensor are replaceable, sensor life is greater than two years, and battery life is three years.
Honeywell PortableMiniMax XPToxic gas detectors reference image
Honeywell MiniMax XPgas detector product brochure
portableMiniMax XPgas detector is an alternative to Impulse XPgas detector, except for the difference in appearance color, the rest of the performance is exactly the same. So
The Impulse XPgas detector instruction manual also applies to the MiniMax XPgas detector, as follows:
A robust and long-lasting chassis
2. Small size and light weight
three Sturdy, impact-proof, not affected by weather
four Includes safety clip and lanyard or optional alligator clip,
Five Easy to use, right out of the box
6. Single-button on/off operation
Seven Intuitive icons for all languages
8. Users can configure it through the menu
9. Provide interactive product training guidance
10. High-definition backlit display
11. Continuous reading of gas levels
Twelve TWA/STEL and two instantaneous alarms with peak hold device for execution
13. Battery life, calibration and self-check status
14. Effective gas alarm instructions
15 Alarm and backlight are combined with each other to attract attention, unique 95dB dual-tone alarm, standard with vibration alarm, reliable operation
16. Self-test on the power on or check the display, battery, sensors, audio-visual equipment and vibration alarm as required
17. Use of SureCell sensor technology and Reflex component inspection technology
Eighteen includes TempraSURE thermal compensation and impact protection
19 Periodic flashing and/or beeping for increased confidence (user configurable)
Twenty Superior EMC/RFI Performance
Configuration Checklist:
| Serial number | Name | model |
| 1 | Hydrogen sulfide gas detector | MINIMAX-XP-H2S |
| 2 | carbon monoxide gas detector | MINIMAX-XP-CO |
| 3 | Oxygen body detector | MINIMAX-XP-O2 |
| 4 | Chlorine detectors | MINIMAX-XP-CL2 |
| 5 | Calibration cap and connecting hose | MINIMAX-XP-01 |
| 6 | Instruction manual in Chinese/English |
3. Technical parameters
| Serial number | General provisions | Technical indicators |
| 1 | Usage | toxic gas or oxygen detection alarm |
| 2 | Operating temperature | -20℃~ +50℃ |
| 3 | Operating humidity | 5~95%RH (non-condensing) |
| 4 | Model | Single gas detection alarm |
| 5 | Detection of gas types | toxic gas or oxygen |
| 6 | Sensor type | electrochemical, replaceable sensor, life greater than 2 years |
| 7 | Precision | ±2ppm |
| 8 | Reaction time | Less than 10 seconds |
| 9 | Audio alarm | 95dB/10cm |
| 10 | Video alarm | High-intensity LED lights flash |
| 11 | Vibration alarm | Standard configuration |
| 12 | Power supply | Replaceable lithium battery with 3 years life |
| 13 | Sampling method | Diffusion sampling |
| 14 | Self-inspection | After turning on the circuit, LCD display and software self-test, sensor self-test adopts anti-poisoning technology |
| 15 | Set zero | Just press the on/off button twice in a row to set zero to complete it automatically |
| 16 | Calibration | Automatic calibration, using attenuation compensation batteries to extend calibration intervals up to 12 months |
| 17 | Waterproof rating | IP54 |
| 18 | Instrument menu functions | Automatic zeroing, automatic calibration, peak recording, display of battery level. |
| 19 | Alarm style | Level 2 alarm, alarm point adjustable, audio: 95dB/10cm; Video: red alarm light flashing; Vibration alarm. |
| 20 | Appearance dimensions | 93（H）*50(W)*27(D)mm |
| 21 | weight | toxic gas81.5g, oxygen93.0g |
| 22 | Explosion-proof type | Intrinsically safe type |
| 23 | Explosion protection | North America: Class1, Div1, Groups A, B, C, D, T4 (UL/c UL); China: EEx ia II.B T4 (CENELEC) II.2G EEx ia d II.C T4 (ATEX); China Metrology Certification; |
| 24 | Vibration and shock resistance test | Compliant with GB 12358-90 |
| 25 | Stability | Compliant with GB 12358-90 |
Fixed gas monitoring: including gas boiler rooms, commercial plants, refrigeration equipment, offshore oil and gas drilling rigs and semiconductor production workshops.
Portable gas monitoring: It is convenient to protect individuals from toxic and harmful gas influences.
