MidasportableToxic gas detectors

Specifications

Product Description:

Midas® is acclaimed for its innovative Chemcassette® range of ultra-agile low ppmtoxic gas monitoring analyzers and our global network of service engineers (24/7, 7 days a week).

Midas® samples can be used at intervals of up to 30 meters (100 feet) and uses patented control technology to automatically adjust the flow rate to ensure error-free gas detection and manipulation. Honeywell Analytics designs and manufactures its exclusive automated production line of improved sensors, guaranteeing unmatched quality and reliability.

The Midas®' compact form factor and easy-to-inspect metal body design make it easy to install in dense, day-to-day complex process environments or space-critical environments. The Midas® comes with a scale of built-in selectable power and communication modes, including 3 built-in relays, 0-22mA analog outputs, Modbus/TCP Ethernet digital outputs, and the new Power over Ethernet (PoE) protocol—a single Ethernet connection for all power, control, and communication devices. The Midas® architecture significantly reduces the cost of PLC and FieldBus system integration.

Midas® is used for the detection of toxic gas, ambient gas, and flammable gas in typical industrial environments through the transmitter platform. Pre-calibrated "plug and play" smart sensors allow for quick and easy sensor replacement without tools and prevent misuse or discarded sensor errors by operators. High-brightness LEDs as well as intuitive graphs display gas readings and alarm levels when displaying interactive menus (combined with password-protected menus for parameterization, detection and calibration).

Midas® is a highly agile and reliable gas detector for toxic gas and flammable gas used in the semiconductor industry and other general industries. With extended sensor calibration cycles, flexible communication modes, and patented sensor self-diagnostic capabilities and automatic flow control, Medias® significantly reduces the operating costs required for gas detection.

Detectable Gases (Part I):

Honeywell MIDAStoxic gasflammable gasoxygendetector instruction manual

Product highlights

◦ Can be used for more than 40 gases with a two-year extended shelf life
◦Smart sensor chuck with built-in "electronic calibration" certificate
◦Built-in level 1 and 2 alarms and fault relays
◦Power over Ethernet (PoE) communication and power delivery platform
◦Keyboard interface and remote web browser interface
◦ Optional modules for thermal crackers and LonWorks interfaces connected to any transmitter
◦Password protection menu management function is used to maintain system integrity
◦High-brightness LED and intuitive icon display, large backlit LCD display
◦Factory-calibrated sensors reduce frequent real gas testing
◦ 0-22mA analog output from Gree with fault and status reports
◦ModBus/TCP Ethernet communication can be easily connected to the control and alarm system to achieve control connection and service
◦Powerful sampling pump system for sampling distances of up to 30 meters (2-year service life)
◦Interactive training simulator tool
◦CE marked for full immunity to electromagnetic interference
◦Reflex® sensor operating status check to improve detector work safety and reliability
◦TempraSureTM®temperature compensation base (as appropriate)
◦Browse the status records of the sensor history
◦ Confirm gas leakage technology to avoid false alarms

Technical parameters

Measured gases: See table below
Detection range: 0~1ppm, 10ppm, 100ppm (optional)
Resolution: 0.001ppm (0~1ppm), 0.01ppm (0~100ppm)
Debugging method: infrared remote control
Response time: ≤30 seconds
Accuracy：≤±3% F.S
Detection method: diffusion type
Switching Volume: 2 (Level 2 Alarm Points)
   Output: 4~20mA, switching volume, RS485,
Working environment: temperature -40°C~70°C; Humidity< 95%RH (non-condensing)
Working Voltage: DC24V±25%
Transmission distance: 1000m
Ingress protection：ExdⅡCT6
Weight: about 2000g
Pressure limit: 86kPa~106 kPa
Design standard: GB3836.1-2000 "Electrical equipment for explosive gas atmospheres Part 1: General requirements"&nbsp;&nbsp;&nbsp;
GB3836.2-2000 "Electrical Equipment for Explosive Gas Environments Part 2: Flameproof Type "d""&nbsp;

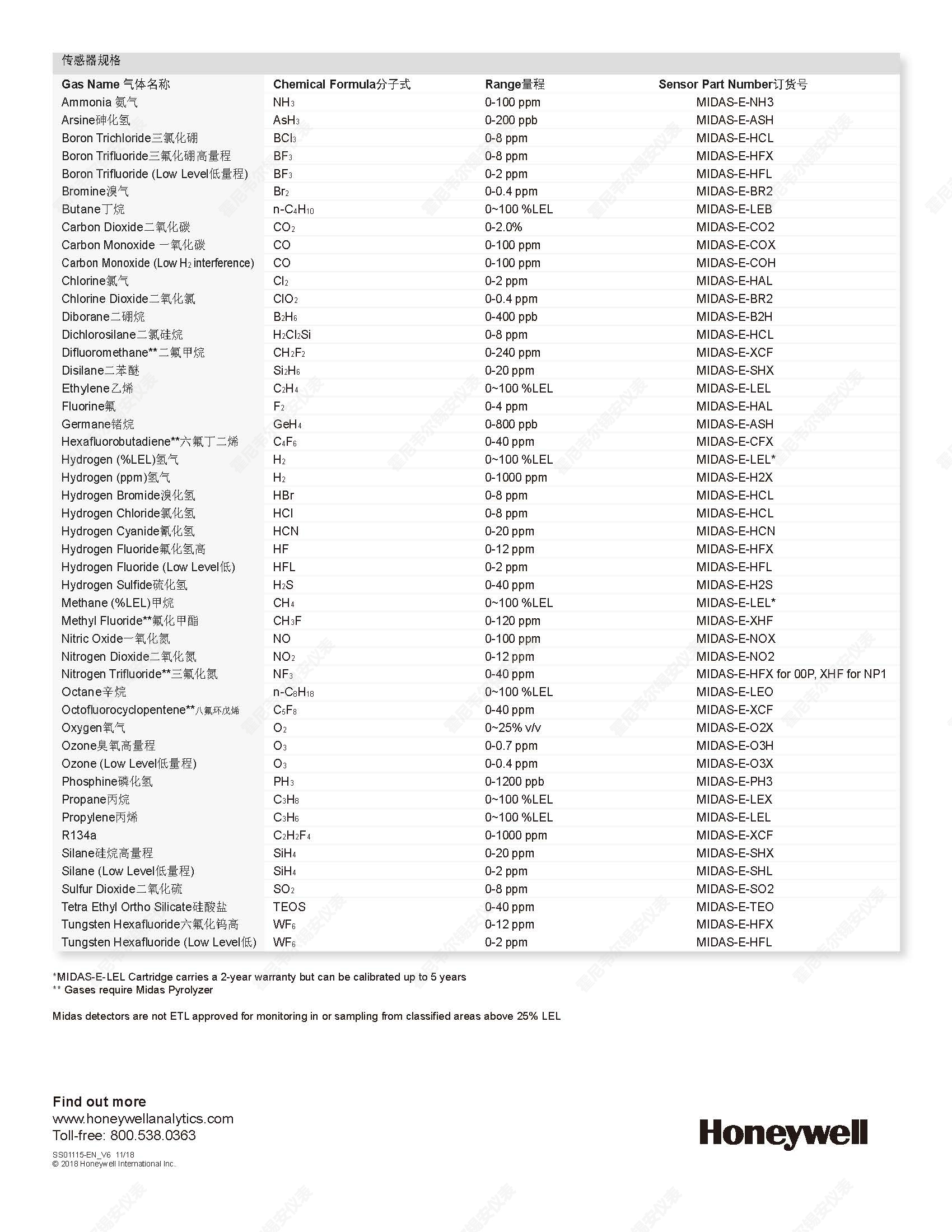

Detectable Gases (Part II):

Application range

Midasgas detector is a highly sensitive and reliable toxic and combustible gas detector used in the semiconductor industry and general industrial sites. With up to two years of sensor calibration cycles, flexible communication modes, sensor self-diagnostics and automatic flow control, Midas significantly reduces gas detector operating costs.
