portable 4-in-1 gas detector

ProductID: 5012 | Brand:DFHT Oriental Haitai |Price:1350.00 yuan

Product images

portable 4-in-1 gas detector — Image source: tb_Product.bigph

Specifications

Item	Value
Measured gases	COcarbon monoxide、O2oxygen、H2Shydrogen sulfide、LEL flammable gas
Measuring range	0~1000ppm
Detection principle	catalytic combustion、electrochemical
Accuracy	﹤±5%FS
Resolution	1ppm
Response time	3 seconds
Ingress protection
Explosion protection
Operating temperature	-10 ~ 50℃
Power supply	3V
Output signal

Product Description:

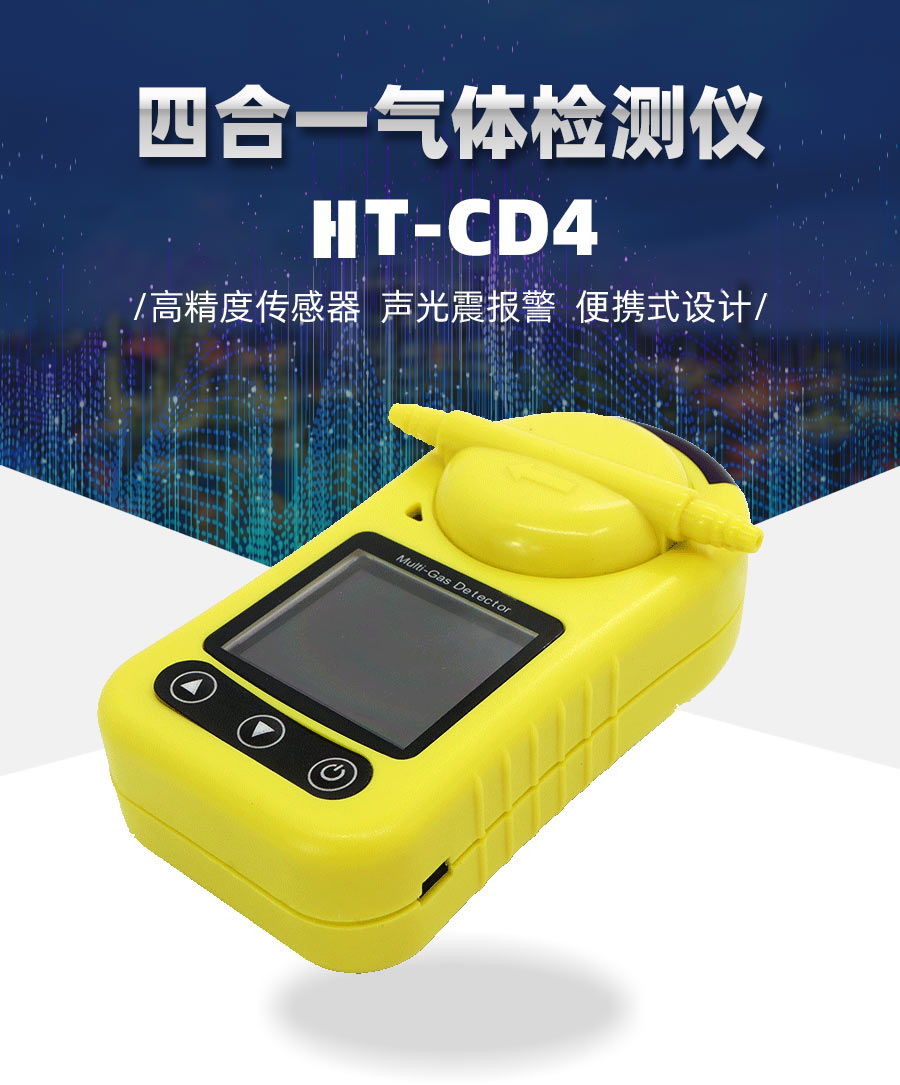

HT-CD4 portable 4-in-1 gas detector can detect four gases at the same time: flammable gas, oxygen, carbon monoxide and hydrogen sulfide, and can store the detection data in the memory card, which can be viewed at any time, linked to the computer to export data and other functions; This instrument adopts the sensor detection principle, diffusion detection method, according to excellent sensitivity and excellent repeatability, simple operation, advanced and complete functions, small and beautiful appearance, corrosion resistance, temperature resistance, good feel, widely used in metallurgy, power plants, petroleum, chemical and other places can effectively prevent the occurrence of poisoning accidents.

Technical indicators

Product Name	portable 4-in-1 gas detector
Product model
Detect gases	Types of gases	Level 1 alarm	Level 2 alarm
	oxygen	19	23
	flammable gas	10	20
	carbon monoxide	50	100
	hydrogen sulfide	10	20
Instrument Measuring range	EX：（0-100%LEL） O2：（0-30%VOL） CO：（0-1000ppm） H2S：（0-200PPM）
Sampling/Principle	The instrument adopts diffusion gas detection method The flammable gas detection sensor adopts the principle of catalytic combustion; hydrogen sulfide/oxygen/Carbon Monoxide gas detection sensors use the electrochemical principle
Operating temperature	-5℃-40℃
Relative humidity	5%--95%RH (non-condensing)
Measurement accuracy	±5％F.S.
Response time	≤15S
Alarm style	sound+Light+Vibration
Ingress protection	TP65
Service life	In air, the service life of the sensor is theoretically yes2year;
Dimensions/weight	*Dimensions:124mm76mm36mm* Weight:258g
Production unit	Oriental Haitai

Notes:

Replacing any component at will can damage the intrinsically safe structure of the instrument.
Activating the instrument after the allowed storage period may affect the instrument's performance and retention period.
The instrument should be stored in a dry and dust-free environment and charged before reuse.
Do not clean the instrument with organic solvents, soaps, or silicone-containing solutions to avoid sensor damage.
Do not charge the instrument for more than 8 hours.
Regularly test the instrument with standard gas to check whether the sound, light and vibration alarms are normal.
The standard gas provided by the manufacturer or the national certified enterprise should be selected for calibration.
When the instrument is warming up, do not enter the hazardous environment for testing to avoid accidents.
Avoid violent impact and squeezing by strong external forces.

Product highlights

There is no Product highlights.

Technical parameters

There is no technical parameter expansion description.

Application range

It is suitable for industrial safety monitoring and on-site inspection scenarios.
