| Item | Value |
|---|---|
| Measured gases | COcarbon monoxide、O2oxygen、H2Shydrogen sulfide、LEL flammable gas |
| Measuring range | Different gases have different Measuring ranges |
| Detection principle | |
| Accuracy | |
| Resolution | |
| Response time | |
| Ingress protection | IP-67 |
| Explosion protection | |
| Operating temperature | -20°C ~ 60°C |
| Power supply | |
| Output signal |
Composite gas detector Huarui PGM-2680 multi-gas alarm, MicroRAE wireless detector can continuously provide continuous detection of flammable gas, oxygen, carbon monoxide and hydrogen sulfide. Versatile wireless transmission options make it easy to transmit real-time readings and alarm status from the instrument via ConneXt Plus, ConneXt Pro, ConneXt Loneworker, and Safety Communicator*1.

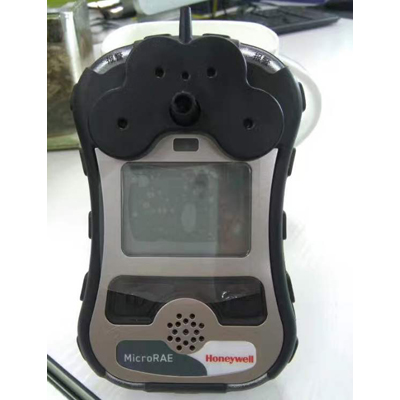

Huarui PGM-2680 wireless 4-in-1 gas detector refers to picture 1

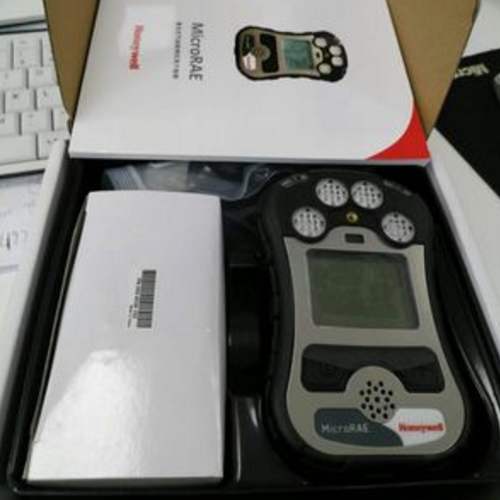

Huarui PGM-2680 wireless 4-in-1 gas detector refers to picture 2
Portable wireless quad gas detector can monitor oxygenhydrogen sulfidecarbon monoxidehydrogen sulfide four gases at the same time. Compatible with Honeywell ConneXt security solutions
MicroRAEportable 4gas detector brings users a user-friendly and flexible wireless detection experience. MicroRAE predicts potential threats to users and devices, detects continuity, and provides faster response times and scientific decisions for decision-makers. The MicroRAE wireless detector provides continuous and uninterrupted detection of flammable gas, oxygen, carbon monoxide, and hydrogen sulfide. Versatile wireless transmission options make it easy to transmit real-time readings and alarm status from the instrument via ConneXt Plus, ConneXt Pro, ConneXt Loneworker, and Safety Communicator*1.
Key features:
Versatile wireless transmission options for easy access to Honeywell ConneXt Series wireless surveillance systems
Ergonomic design, lightweight and easy to carry
IP-67Ingress protection
Environmental adaptability of minus 40 degrees, three-color indicator lights represent normal, fault and alarm respectively
Real-time detection data, location information, alarm status and personnel status information can be transmitted wirelessly
Accurately issue five types of local alarm and remote alarm notifications
The Amazing Mode can view the instrument configuration without turning on the computer
Global and local certifications, IECEx, China Ex, CMC, and CCCF
Anti-poison sensor, flammable gas sensor A variety of anti-poisoning filter membranes are available
Alarm for personnel falling and transmit alarm information in real time
Optional built-in GPS personnel positioning module
The low-power Bluetooth module can upload detection data and configure the detector through the mobile phone
Remote alarm and security warning
AutoRAE 2 allows for quick functional testing and calibration of the MicroRAE
Technical parameters:
| Main parameters: | Parameter range |
| weight | 206 grams |
| Probe | Flammability Probe: Catalytic Combustion type probe Oxygen Probe: Liquid oxygen probe Carbon Monoxide and Hydrogen Sulfide: Electrochemical probes |
| battery | Rechargeable lithium battery for approximately 15 hours of continuous use (at ambient temperature of 20°C, lower temperature and alarm will affect battery life) |
| Display | 44 mm x 33 mm LCD display with two-color backlight mode |
| Operation buttons | Double buttons |
| Alert | Multi-frequency, 100dB alarm sound (at 30 cm), vibration alarm, LED alarm light, display display alarm status |
| Disability alert | The wearing personnel will remain still until the preset time to issue a disability alarm |
| Data logging | Continuous data recording, four probes record one data every minute, can be recorded for 6 months (recording interval can be set by yourself between 1-3,600 seconds) |
| Communication & Data Download | Data can be downloaded from a computer, detectors and upgrades can be set up |
| Anti-electromagnetic interference | EMC directive: 2004/108/EC |
| Ingress protection | IP-67 |
| Certification | IECEx：Ex ia d llC T4 Gb China Ex：Ex d ia llC T4 Gb |
| Operating temperature | -20°C ~ 60°C |
Sensor Parameters:
| Detect gases | Flammable gases | oxygen | carbon monoxide | hydrogen sulfide |
| Measurement range | 0-100% LEL | 0-30.0% vol | 0-1000 ppm | 0-100 ppm |
| Resolution | 1% LEL | 0.1% vol | 0-250 ppm/1ppm 250-1000ppm/3ppm |
0-50 ppm/0.1ppm 50-100 ppm/1ppm |
| Probe type | catalytic combustion style | Liquid oxygen probe | electrochemical formula | electrochemical formula |
Applications:
Personal protection and industrial safety, individual workers, petroleum and petrochemical, municipal industry, metallurgical industry, wastewater industry, chemical industry, safety supervision industry
