| Item | Value |
|---|---|
| Measured gases | NH3ammonia, H2hydrogen, COcarbon monoxide, SO2 sulfur dioxide, NO nitric oxide, O2oxygen, NO2 nitrogen dioxide, H2Shydrogen sulfide, CL2 chlorine, CLO2 chlorine dioxide, HCN hydrogen cyanide |
| Measuring range | Different gases have different Measuring ranges |
| Detection principle | electrochemical |
| Accuracy | ±2%F.S. |
| Resolution | |
| Response time | <15s |
| Ingress protection | IP65 |
| Explosion protection | |
| Operating temperature | -40°C ~+70°C (Limit ) -20°C ~+50°C (Typical) |
| Power supply | 9~28VDC |
| Output signal |
RAEAlert EC is a Toxic gas detectors with modular design, intelligent sensor detection technology, integral flameproof (d) structure, and fixed installation. The standard configuration is with dot matrix LCD display, three-wire 4~20mA analog and RS485 digital signal output, and optional configuration as programmable switching output and other modules, providing customized products according to user needs, and also supporting output signal fine-tuning and other functions to facilitate system networking and maintenance. It can detect a variety of toxic and harmful gases such as CO, H2S, O2, SO2, Cl2, NH3, SO2, HCN, NO, NO2, PH3, ClO2, ETO, etc.
.png)
RAEAlert EC Toxic and Hazardous Gas Detector detailed information
Modular design to provide customized products
Integrated design supports multiple sampling methods
Intelligent processing platform, rich user interface and powerful processing functions
The toxic gas sensor adopts an intrinsically safe design and supports multiple gases and multiple measuring ranges
Smart sensor technology is used
Provide a variety of signal transmission methods, and the system networking method is flexible
Zero point and full Measuring rangeOutput signal fine-tuning
Ultra-Measuring range protection, reverse polarity protection
Strong anti-interference ability
All operations of the RAEAlert are done via an infrared remote control. Align the front end of the remote control with the infrared remote control window of the instrument, and operate it through the five buttons of the remote control.
.png)
The design of the RAEAlert gas detector is based on RAE's many years of user needs analysis, and the flexible, optional tube/wall mounting method and standard terminal blocks make the detector easy to install and connect to various control systems
.png)

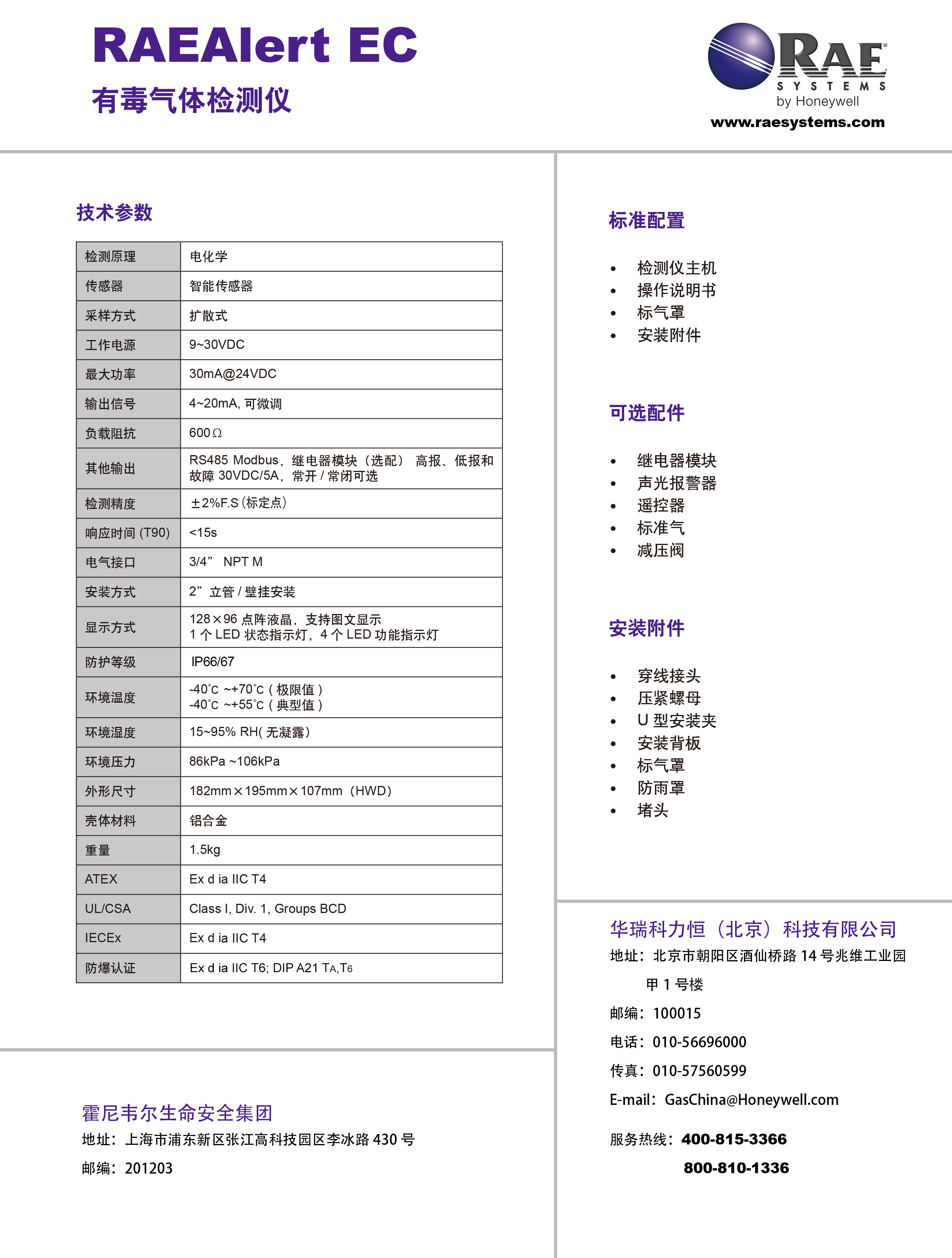

%E4%B8%AD%E6%96%87Datasheet_%E9%A1%B5%E9%9D%A2_2.jpg)
Ordering information
|
Product model
|
Detect gases
|
Standard Measuring range
|
Resolution
|
Product model
|
Detect gases
|
Standard Measuring range
|
Resolution
|
|
FGM-3300
|
O2
|
0 ～ 25%vol
|
0.1%vol
|
FGM-3300
|
NO
|
0 ～ 250ppm
|
1ppm
|
|
FGM-3300
|
CO
|
0 ～ 500ppm
|
1ppm
|
FGM-3300
|
NO2
|
0 ～ 20ppm
|
0.1ppm
|
|
FGM-3300
|
H2S
|
0 ～ 100ppm
|
1ppm
|
FGM-3300
|
PH3
|
0 ～ 20ppm
|
0.1ppm
|
|
FGM-3300
|
Cl2
|
0 ～ 50ppm
|
0.1ppm
|
FGM-3300
|
ClO2
|
0 ～ 1ppm
|
0.01ppm
|
|
FGM-3300
|
NH3
|
0 ～ 100ppm
|
1ppm
|
FGM-3300
|
ETO-A
|
0 ～ 100ppm
|
0.1ppm
|
|
FGM-3300
|
SO2
|
0 ～ 20ppm
|
0.1ppm
|
FGM-3300
|
ETO-B
|
0 ～ 10ppm
|
0.1ppm
|
|
FGM-3300
|
HCN
|
0 ～ 50ppm
|
1ppm
|
FGM-3300
|
ETO-C
|
0 ～ 500ppm
|
1ppm
|
