| Item | Value |
|---|---|
| Measured gases | VOCs can volatilize gases |
| Measuring range | 0 ~100ppm；0 ~1000ppm |
| Detection principle | infrared、photoionization |
| Accuracy | ±3%F.S. |
| Resolution | |
| Response time | <15s |
| Ingress protection | IP65 |
| Explosion protection | |
| Operating temperature | -40°C ~+55°C ( Sensor ) |
| Power supply | 10~28VDC |
| Output signal |
The RAEGuard 2 PID is an organic gas detector with flameproof main unit and intrinsically safe photoionization smart sensor in fixed installation. The instrument adopts an intelligent processing platform and digital sensor technology to realize the offline calibration of the sensor and environmental adaptation functions, and can also customize different measuring ranges according to user requirements. In terms of external functions, the detector has functions such as graphic display and local sound and light status indication, and at the same time, the detector adopts the external adjustment method of three-button magnetic rod, so that operators can easily calibrate and maintain without opening the lid on site.

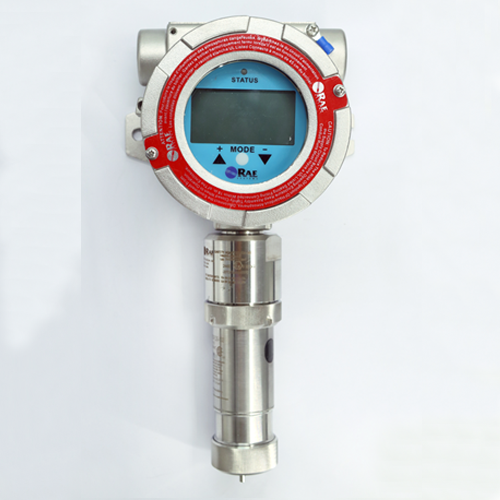

RAEGuard 2 PID organic gas detector probe FGM-200X

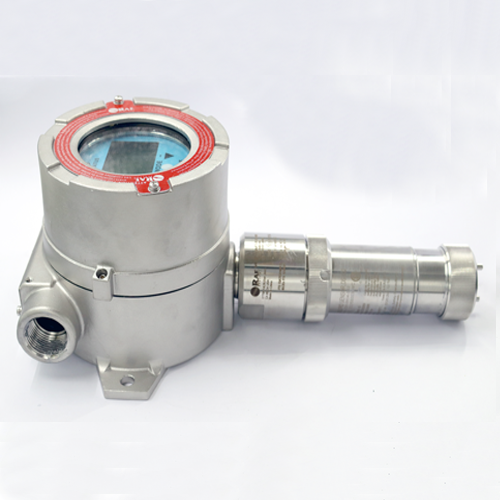

RAEGuard 2 PID organic gas detector probe FGM-200Xgas detector side view
RAEGuard2 PID Organic gas detector FGM-200X gas detector detailed description
• Adopts self-developed third-generation intrinsically safe PID sensors, with faster response time, stronger moisture resistance, and large measurement range in the industry; Sensors can be interchangeable without tools and offline calibration is supported
• Self-cleaning technology
• Built-in powerful sampling pump, large monitoring range, short response and recovery time
• Ultra-wide measurement range, measuring range can be set freely, and the measurement accuracy reaches ppb level
• Intelligent temperature and zero point compensation algorithms
• Broad-spectrum detection, built-in gas library, easy for users to choose
• Multiple signal outputs
• Large dot matrix LCD display, supporting Chinese and English interfaces
• No lid opening, magnetic stick operation, single person maintenance
• Local alarm indication, integrated sound and light alarm (optional)
• Stainless steel housing
• Certified by ATEX, UL, CSA, etc
There is no technical parameter expansion description.
• Petroleum, petrochemical
• Metallurgy, chemical industry
• Environmental protection, municipal administration
• Papermaking, printing and dyeing
• Scientific research and education
• National defense
