| Item | Value |
|---|---|
| Measured gases | NH3ammonia, LNG LNG, CH4methane, H2hydrogen, VOC volatile gas, SO2 sulfur dioxide, NO nitric oxide, O2oxygen, H2Shydrogen sulfide, CL2 chlorine, HCL hydrogen chloride, CO2carbon dioxide, O3 ozone, LEL flammable & toxic gases |
| Measuring range | Different gases have different Measuring ranges |
| Detection principle | Catalytic Combustion, Electrochemical, Infrared, Semiconductor |
| Accuracy | ±3% |
| Resolution | |
| Response time | <15s |
| Ingress protection | IP66 |
| Explosion protection | Ex d IIC T6 |
| Operating temperature | -10℃～50℃ |
| Power supply | 12-24V DC |
| Output signal |
HT-G series gas detector (hereinafter referred to as detector) is a detector independently developed by our company, which can be widely used in petrochemical, fire protection, environmental protection, scientific research and other dangerous places where gas leakage is easy to leak indoors and outdoors.
HT-G series detector signal output mode is 4mA~20mA current signal, bus communication system (RS485) digital signal, switching quantity signal output, according to different models, it can be transmitted with the corresponding adapted control host, through the control host to display the gas concentration (×10-6 or %LEL) in real time, through the control host to set the detector high/low limit alarm value, calibrate, Realize all the actions of the monitoring detector, and provide you with humanized and operable services for safe production.

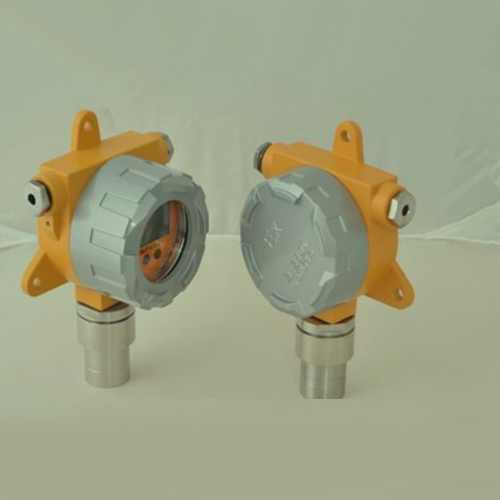

HT-G series gas detector form factor

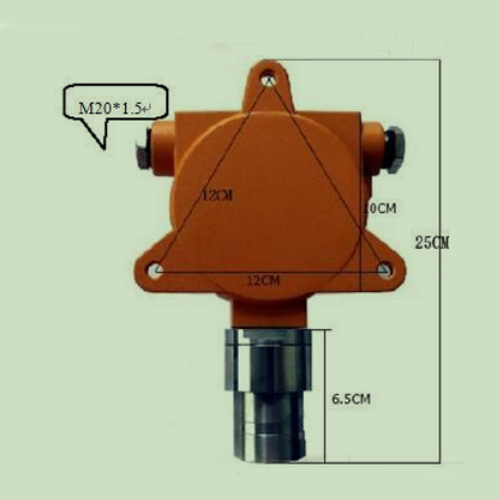

HT-G series gas detector mounting size
●Detector output mode: 4mA~20mA current signal, RS485 digital signal, switching signal output optional
●The shell is explosion-proof and can be used in hazardous environments
●Good long-term stability and small zero drift
● Good repeatability and high reliability
|
Item
|
Description
|
|
How it works:
|
electrochemical, catalytic combustion, infrared, semiconductor
|
|
current
|
50mA
|
| Output signal | 4-20mA standard signal output; (485 signal output, switching signal output) GPRS wireless communication; |
| Connect the cable | Two-core/three-core shielded cable |
| Operating temperature | -10℃～50℃ |
| Ambient humidity | 10%-95%RH (non-condensing) |
| Accuracy | ±3% |
| Zero drift | < 0.5% F.S./month |
| Reaction time | <15s |
| Explosion protection | Ex d IIC T6 |
| Ingress protection | IP66 |
| Power supply | 12-24V DC |
| Rules | Housing diameter 105mm |
| weight | 950g |
| Sensor life | Two years in the air |
Detect gas type and Measuring range
HT-G digital display
|
Gas Name
|
model
|
Gas Measuring range
|
Level 1 alarm
|
Level 2 alarm
|
|
oxygen
|
HT-GO2
|
0-30%VOL
|
19%VOL
|
23%VOL
|
|
flammable gas
|
HT-GEx
|
0-100%LEL
|
20%LEL
|
50%LEL
|
|
carbon monoxide
|
HT-GCO
|
0-500/1000ppm
|
100ppm
|
200ppm
|
|
hydrogen sulfide
|
HT-GH2S
|
0-100ppm
|
10ppm
|
20ppm
|
|
ammonia
|
HT-GNH3
|
0-100/200/1000ppm
|
25ppm
|
50ppm
|
|
Sulfur dioxide
|
HT-GSO2
|
0-100/2000ppm
|
20ppm
|
50ppm
|
|
Chlorine
|
HT-GCL2
|
0-20/50ppm
|
5ppm
|
10ppm
|
|
hydrogen
|
HT-GH2
|
0-1000ppm
|
100ppm
|
200ppm
|
|
Hydrogen chloride
|
HT-GHCL
|
0-50ppm
|
5ppm
|
10ppm
|
|
Chlorine dioxide
|
HT-GCLO2
|
0-20/50ppm
|
5ppm
|
10ppm
|
|
Ethylene oxide
|
HT-GETO
|
0-100/200ppm
|
10ppm
|
20ppm
|
|
Organic volatile gases
|
HT-GVOC
|
0-1000ppm
|
50ppm
|
100ppm
|
|
Phosphine
|
HT-GPH3
|
0-20ppm
|
1ppm
|
2ppm
|
|
Nitric oxide
|
HT-GNO
|
0-250ppm
|
25ppm
|
50ppm
|
|
Nitrogen dioxide
|
HT-GNO2
|
0-20/1000
|
10ppm
|
20ppm
|
|
Hydrogen cyanide
|
HT-GHCN
|
0-50ppm
|
5ppm
|
10ppm
|
|
Methyl mercaptan
|
HT-GCH3SH
|
0-10ppm
|
2ppm
|
5ppm
|
|
ozone
|
HT-GO3
|
0-1/10/100ppm
|
0.1ppm
|
0.3ppm
|
