| Item | Value |
|---|---|
| Measured gases | |
| Measuring range | |
| Detection principle | |
| Accuracy | |
| Resolution | |
| Response time | ≤60S |
| Ingress protection | |
| Explosion protection | |
| Operating temperature | 5℃～45℃ |
| Power supply | |
| Output signal |
The DFHT-RRO dynamic gas dispenser is mainly suitable for preparing standard gases in ppm with nitrogen as the equilibrium gas. Gas detection equipment manufacturers, measurement, environmental protection, petrochemical, universities, medicine and health, laboratories, coal mines and other departments verify gas analyzers and alarms to prepare low-concentration standard gases.
Figure 1 of DFHT-PRO dynamic gas distributor
DFHT-PRO dynamic gas distribution instrument Figure 2
Dynamic gas distribution instrument DFHT-PRO Figure 3
DFHT-PRO dynamic gas distribution instrument Figure 4
DFHT-PRO dynamic gas distribution instrument Figure 5
1. Automatic gas distribution according to the set value, gas distribution scheme can be preset, which is convenient for daily repetitive gas distribution work;

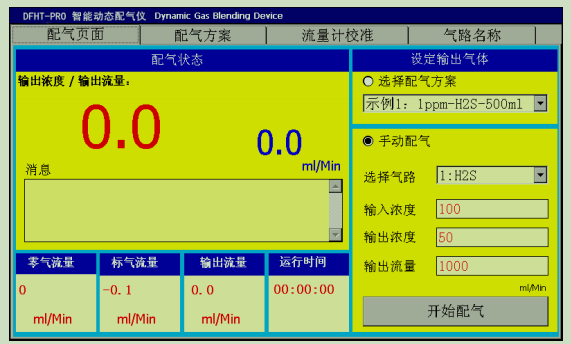

2. LCD large screen display, full Chinese menu, touch operation;
3. All standard gases are converted into gases of the required concentration, saving costs;
4. The air treated by the air generator can be used as zero gas, and the ratio is proportioned with the standard gas;
5. High gas distribution accuracy, stable air flow, flow control of the prepared standard gas, that is, the standard gas prepared according to the set flow rate output.
6. The instrument can be distributed with four channels of flow control and more than four channels of flow control, and the flexible operation mode of the gas can be selected.
Dilution factor: 1:1000, 2-way flow control;
Gas distribution uncertainty: ±1%
Power supply: 220V AC, 50Hz
Output flow: 150-3000ml/min (control output flow according to set value)
Output flow error: ±0.5%
Linearity error: ±1%
Repeatability: ±0.5%
Response time:≤60S
Maximum internal pressure of the instrument: 0.3MPa
Preheating time: 15min
Operating temperature: 5°C~45°C
Dimensions: 400mm W x 195mm H x 450mm D
Weight: approx. 10kg
It is suitable for industrial safety monitoring and on-site inspection scenarios.
