| Item | Value |
|---|---|
| Measured gases | LEL flammable & toxic gases |
| Measuring range | |
| Detection principle | catalytic combustion、electrochemical |
| Accuracy | |
| Resolution | |
| Response time | |
| Ingress protection | |
| Explosion protection | |
| Operating temperature | |
| Power supply | |
| Output signal |
RAEGuard 3 series is the representative work of Honeywell's toxic and harmful gas detectors, providing users with safer, more stable, more reliable and more effective on-site transmitters, which can be applied to indoor, outdoor and other hazardous environments, monitor the danger degree of harmful gases in the environment in real time, and quickly and effectively protect the safety of installation sites and production personnel.

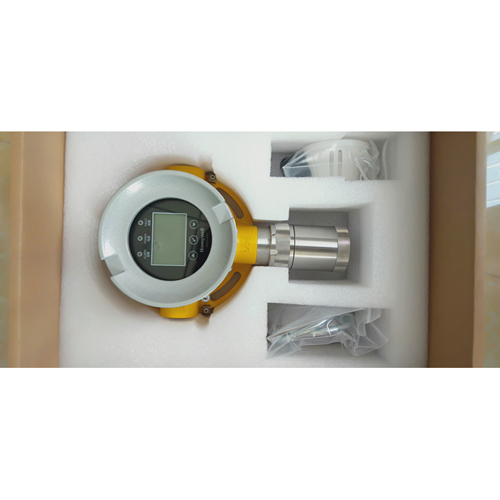

Honeywell gas detector transmitter RAEGuard 3 reference diagram

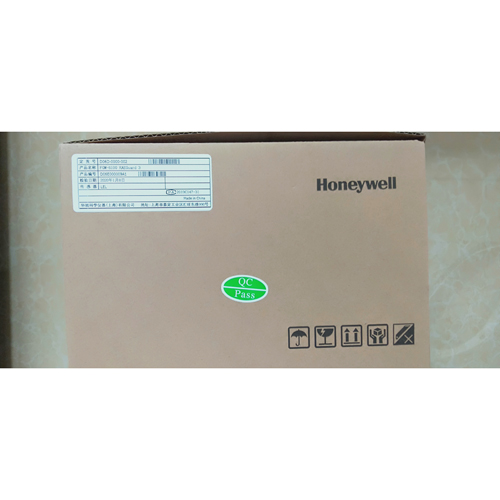

RAEGuard 3 Detector transmitter packaging
• All with ** sensor technology
• Wider temperature and environmental compensation makes the instrument always reliable and stable
• Redundancy design ensures no "false positives"
• Clear status indication, that is, the degree of environmental danger can be sensed from a distance
• Optional integrated sound and light alarm, light and sound are constantly reminded, and the danger alarm signal will no longer be ignored
• Optional built-in lightning protection module for "worry-free" outdoor installation
• IP66/67
• TUV SIL2
• Use: 3 wires, 4 20mA, universal transmitter is suitable for catalytic combustion, electrochemical and NDIR sensors, used for gas detection in indoor and outdoor flammable, toxic and other hazardous environments
• Input Voltage: 16~32VDC (Rated at 24VDC)
• Power consumption: electrochemical: 5.5W; catalytic combustion/NDIR: 7.5W
• Current Output: Standard Fully Configurable 4~20mA (Source Type), Optional Carrier Independent HART 7.2 Output (Optional)
•Default current output settings
• 1mA fault
• 4mA~20mA normal gas detection
• 2mA rejection (during configuration or setup.)
• 3mA warning
• 22mA over Measuring range
•Note: When current output < 3mA, HART communication does not work correctly.
IPIngress protectiontoxic gas and oxygen: IP66/67 LEL/NDIR: IP66
Operating temperature*** 40°C~+70°C Operating humidityLEL/NDIR: 0~95%RH (no condensing)
toxic gas and oxygen: 15%~95%RH (no condensation) Operating pressure90~110kPa
Storage conditions20°C~+50°C, 4575%RH, clean air
Part Number《2026》: Accessories(: C07-2018-001), ; Price excluded, .
| Category | Part Number | Description |
|---|---|---|
| Accessories | SPXRLCAL | SPXRL-Calibration Cap |
| Accessories | SPXRLFLW | SPXRL-Flow Housing |
| Accessories | SPXRLDMK | SPXRL-Duct Mount Kit |
| Accessories | 2308B0923 | Pole Mount Bracket Kit |
| Accessories | SPXCDWP | Weather Protection Cap |
| Accessories | SPXCDCC | Collecting Cone for use with lighter than air gases, Order with SPXCDWP |
| Accessories | D03-3015-000 | Calibration cap |
| Accessories | C01-3010-000 | Rain hood, Diffusion |
| Accessories | 033-3032-000 | Magnet wand |
| Accessories | D03-2031-001 | Mounting plate,stainless steel |
| Accessories | 2013-2031-001 | U-type clamp |
| Accessories | 2036-3001-000 | RAEGuardexplosion-proof connectorAccessory |
| Accessories | 033-2061-000 | Plug 3/4″NPT M |
| Accessories | 490-0804-000 | Rain hoodhose clamp (Black), Flow through, pleaseD03-2021-000order together |
| Accessories | D03-2021-000 | Rain hood, Flow through |
| Accessories | D03-3018-005 | water-trap filter assembly/5 pcs, Flow through |
| Accessories | 490-0130-000 | wrench M6 |
| Accessories | 500-2004-000 | air filter |
| Accessories | D03-2030-000 | sealing ring hood |
| Accessories | 430-B093-070 | for sealingOO-ring |
| Accessories | 700-2053-000 | separator retaining clip |
| Accessories | 400-0596-000 | L |
| Accessories | 400-0616-000 | Description pending confirmation. |
| Accessories | 490-0807-000 | Description pending confirmation. |
| Accessories | 490-0808-000 | Description pending confirmation. |
| Accessories | 600-0310-000 | , 30 / |
| Accessories | C07-2018-001 | Calibration cap $18 ¥116 Standard accessories Standard accessories |
| Accessories | 2013-2031-001 | U-type clamp, includes 2 pcs $24 ¥138 Standard accessories Standard accessories |
| Accessories | C07-2011-001 | weather shield $33 ¥232 Standard accessories Standard accessories |
| Accessories | C07-2014-000 | $803 ¥885 Optional Optional |
| Accessories | 033-3032-000 | Magnet wand $30 ¥199 Standard accessories Standard accessories |
| Accessories | D06-2011-001 | sunshade $111 ¥788 Optional Optional |
| Accessories | C07-2012-000 | gas collecting hood $165 ¥1,153 Optional Optional |
| Accessories | C07-2013-000 | Kit $532 ¥3,725 Optional Optional |
| Accessories | D06-3010-000 | Kit $600 ¥4,170 Optional Optional |
| Accessories | 8490-0040-000 | tag plate $15 ¥68 Optional Optional |
| Accessories | 033-2061-001 | 3/4" NPTPlug $30 ¥199 Standard accessories not available |
| Accessories | M01-2055-001 | hex tool $17 ¥105 Standard accessories Standard accessories |
| Accessories | C07-2018-001 | Calibration cap $18 116.00 Standard accessories Standard accessories |
| Accessories | 2013-2031-001 | U-type clamp, includes 2 pcs $19 134.00 Standard accessories Standard accessories |
| Accessories | C07-2011-001 | weather shield $33 232.00 Standard accessories Standard accessories |
| Accessories | 033-3032-000 | Magnet wand $30 199.00 Optional Optional |
| Accessories | D06-2011-001 | sunshade $115 788.00 Optional Optional |
| Accessories | C07-2012-000 | gas collecting hood $164 1153.00 Optional Optional |
| Accessories | 8490-0040-000 | tag plate $15 68.00 Optional Optional |
| Accessories | 033-2061-001 | 3/4" NPTPlug $30 193.00 Standard accessories not available |
| Accessories | 3012-4234-001 | hex tool $11 76.00 Standard accessories Standard accessories |
| Accessories | 2012-5006-000 | Calibration cap |
| Accessories | 033-2004-000 | Rain hood |
| Accessories | 2036-3000-000 | RAEGuard |
| Accessories | 033-2061-000 | Plug3/4″NPT M |
| Accessories | 033-3801-000 | Calibration cap |
| Accessories | 033-2004-000 | Rain hood, 033-2066-000order together |
| Accessories | 033-2066-000 | Rain hood |
| Accessories | 490-3010-000 | wrench |
| Accessories | 2011-2011-000 | Description pending confirmation. |
| Accessories | 8430-0000-020 | matching set |
| Accessories | 2011-3000-000 | Compression nutmatching setAccessory(includes Φ7、Φ9、Φ11Sealing ring) |
| Accessories | 2067-3000-000 | Kit,SP-1104Plus-S |
| Accessories | 8490-0042-001 | Compression nut 3/4″NPT M |
| Accessories | SP-1104 | Plus |
| Accessories | 2013-2003-000 | Mounting plate |
| Accessories | 2013-2030-000 | pipe clamp |
| Accessories | 2013-2031-001 | 2inchU-type screw |
| Accessories | 2013-2025-100 | Plug |
| Accessories | 2011-3000-000 | Compression nutmatching setAccessory(includes Φ7、Φ9、Φ11Sealing ring stainless steel ) |
| Accessories | 2016-2012-000 | φ10 |
| Accessories | 2025-2004-000 | 1003 Mounting plate |
| Accessories | 490-0208-000 | 2A/250V |
| Accessories | 8430-0014-000 | M8 |
