Honeywell Sensepoint XCD Accessories & Spares
Accessories and spares: calibration cap, magnet, weather protection, mounting kits, display/terminal modules.
Part-number matrix
| P/N | Type | Description |
|---|---|---|
| 5200260-03A | Accessory / spare | — |
| 5200262-03A | Accessory / spare | — |
| 5201095-00A | Accessory / spare | — |
| 5201098-00A | Accessory / spare | — |
| 5201100-00A | Accessory / spare | — |
| 5201102-00A | Accessory / spare | — |
| 5201144-00A | Accessory / spare | — |
| 5201145-00A | Accessory / spare | — |
| A01-2053123 | Accessory / spare | — |
| D06B-0630-000 | Accessory / spare | Fixed gas detector |
| N350-2057922 | Accessory / spare | — |
Why this principle
XCD accessories fall into four groups: calibration (cal cap, span gas, constant-flow/pressure regulators, tubing), mounting (pipe-mount kit, sunshade, weather protection, duct/flow-through cap), operation (magnetic wand, IR remote) and spare modules (transmitter body, display and terminal modules, cartridges). Match accessories to the housing material (aluminium/316 SS) and approval scheme (M20 for ATEX/IECEx, 3/4" NPT for UL).
Key specifications
| P/N | Name | Purpose |
|---|---|---|
| S3KCAL / SPXCDDCAL | Calibration cap | Required for accurate calibration; feeds span gas to the cartridge |
| S3KMAG / SPXCDMAG | Magnetic wand | Non-intrusive menu operation and calibration; standard accessory |
| SPXCDWP | Weather protection | Recommended outdoors; protects the sensor, with bump-test gas port; standard accessory |

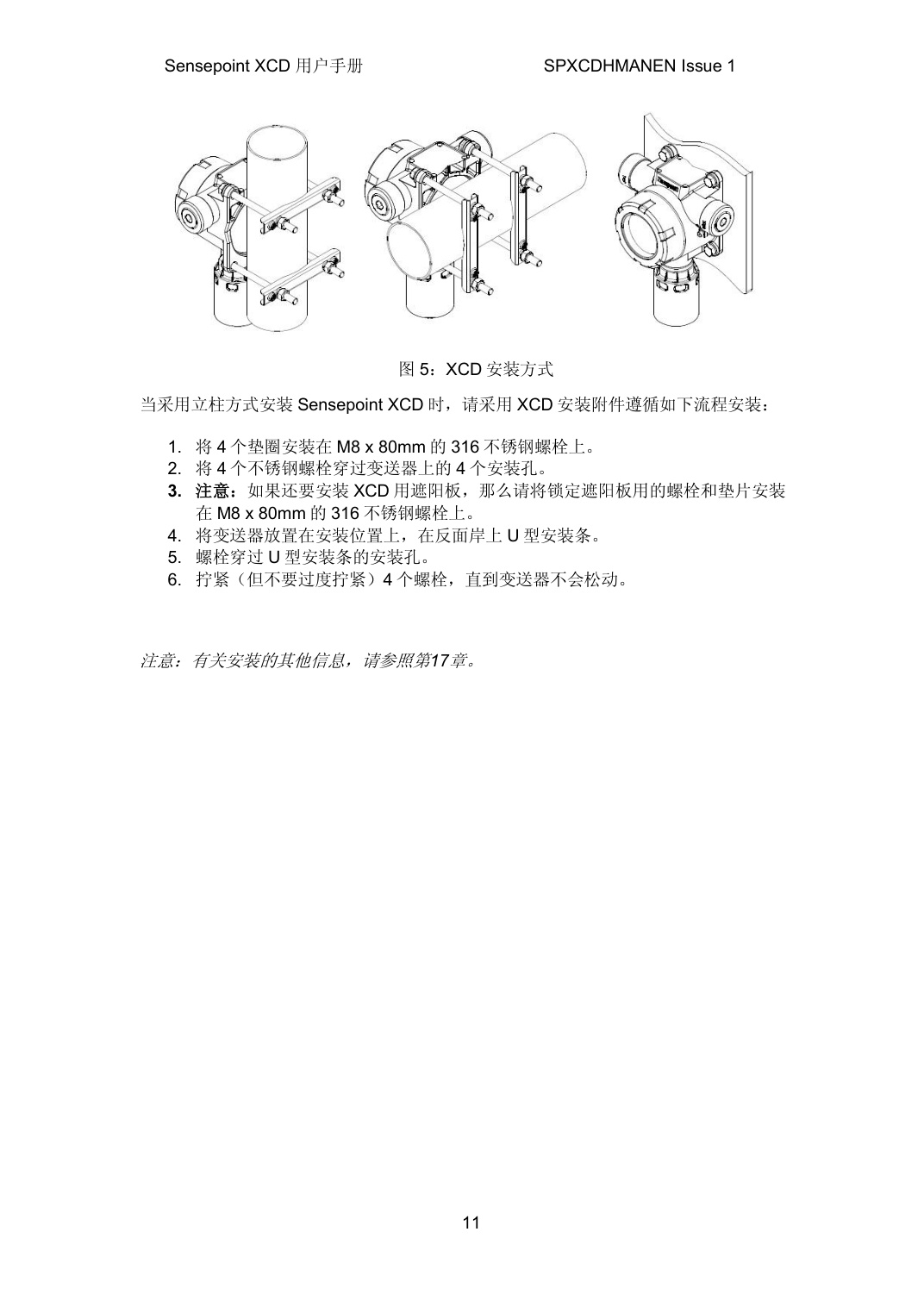

| SPXCDMTMB / SPXCDMTBR | Pipe/pole mounting kit | Mounts on Ø40–80 mm pole or horizontal/vertical pipe; hardware and hex keys included |
| SPXCDCC | Collecting cone | Works with the weather protector to collect lighter-than-air gases |
| SPXCDDMK | Duct mounting kit | Duct mounting for HVAC and ventilation ducts |
| SPXCDSDP | Sunshade / deluge protection | Fits the mounting plate; keeps the detector working in hot, wet, rainy sites |

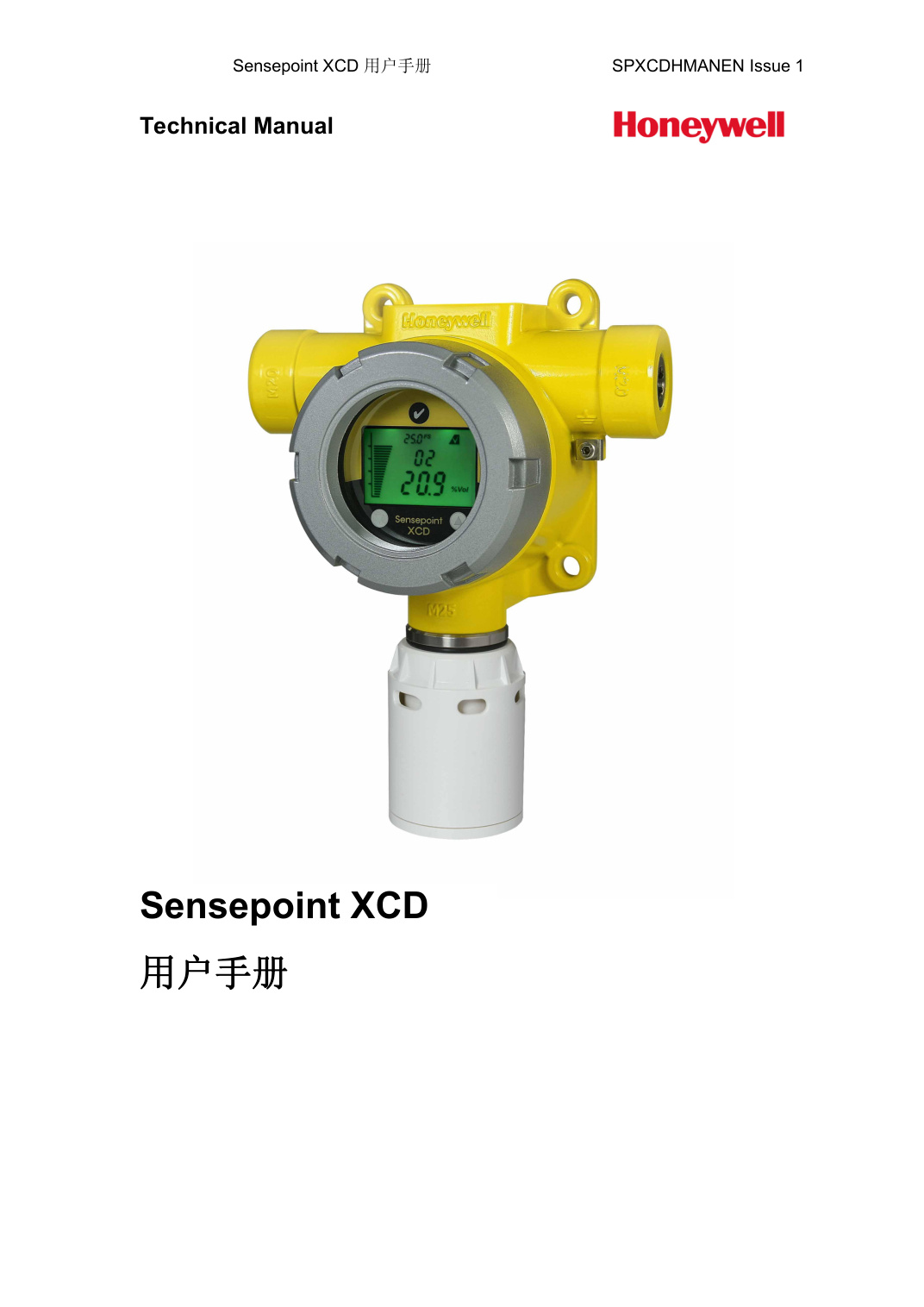

| SPXCDHMANEN / SPXCDMANCD | Printed EN manual / manual CD | Documentation set |
Spare modules come from the same production line and approvals — performance is unaffected after replacement: display modules SPXCDDMT (O2/toxic), SPXCDDMF (flammable/IR); terminal modules SPXCDTMO (O2), SPXCDTMT (toxic), SPXCDTMF (flammable/IR); blanking plugs SPXCDNPTP (3/4"NPT), SPXCDM20P (M20); adapter SPXCDNADP (3/4"NPT to M20); plus sensor retainer SPXCDSRLS, hex keys SPXCDAKS / SPXCDHWES and earth bracket SPXCDEBS. Transmitter bodies and cartridges are listed on the main and sensor page matrices.

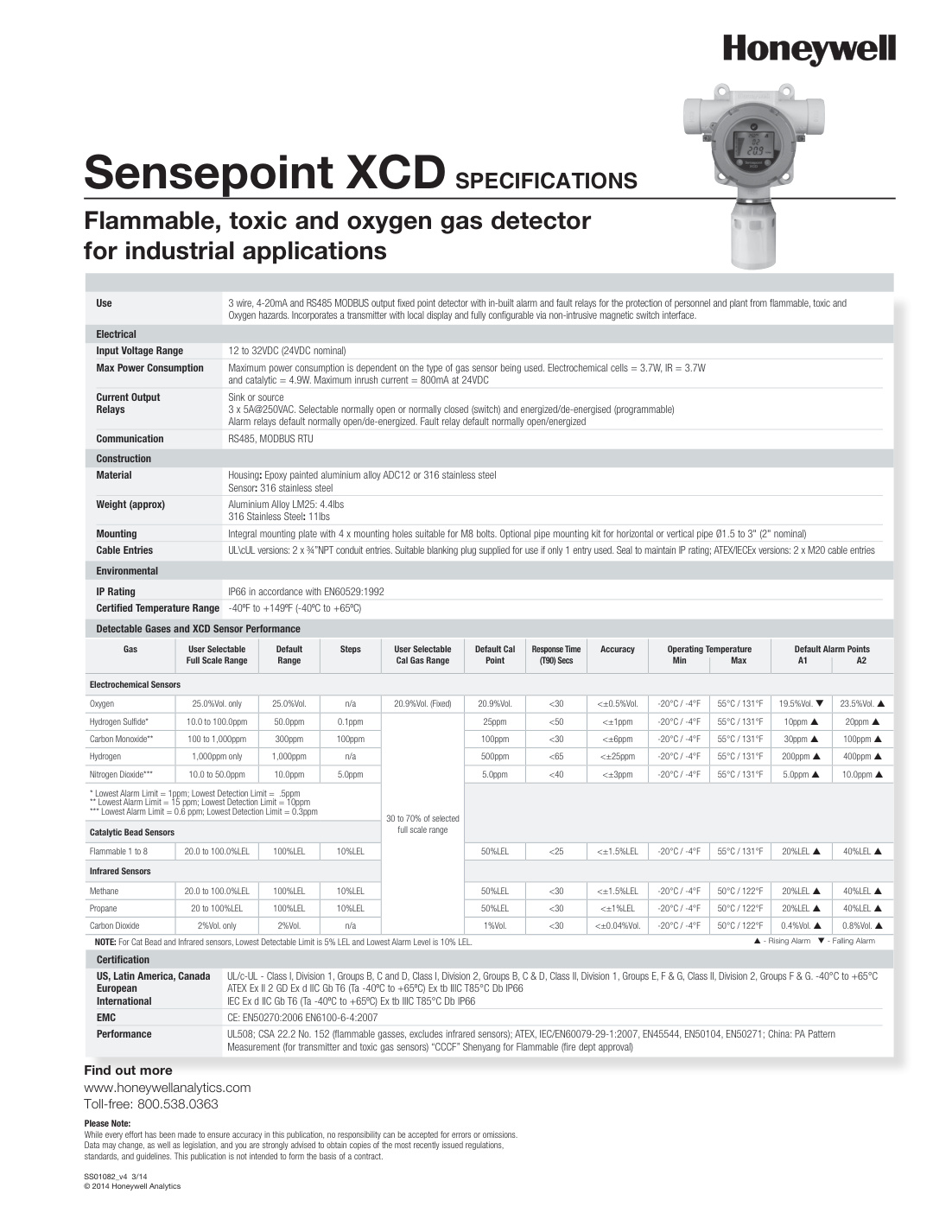

Technical Figures
Certifications & Compliance
Certificates shown as blurred previews only (no downloads). Request official copies and current validity from sales.
