RAE RAEGuard 3 Fixed Gas Detector

Product ID: 29015 | Brand: RAE | Price: On request

Part-number matrix

Filter by catalytic, NDIR IR, toxic/oxygen, or accessories & spares. Click a P/N for details.

Full part-number indexP/N keyOn-page matrix

Product photo

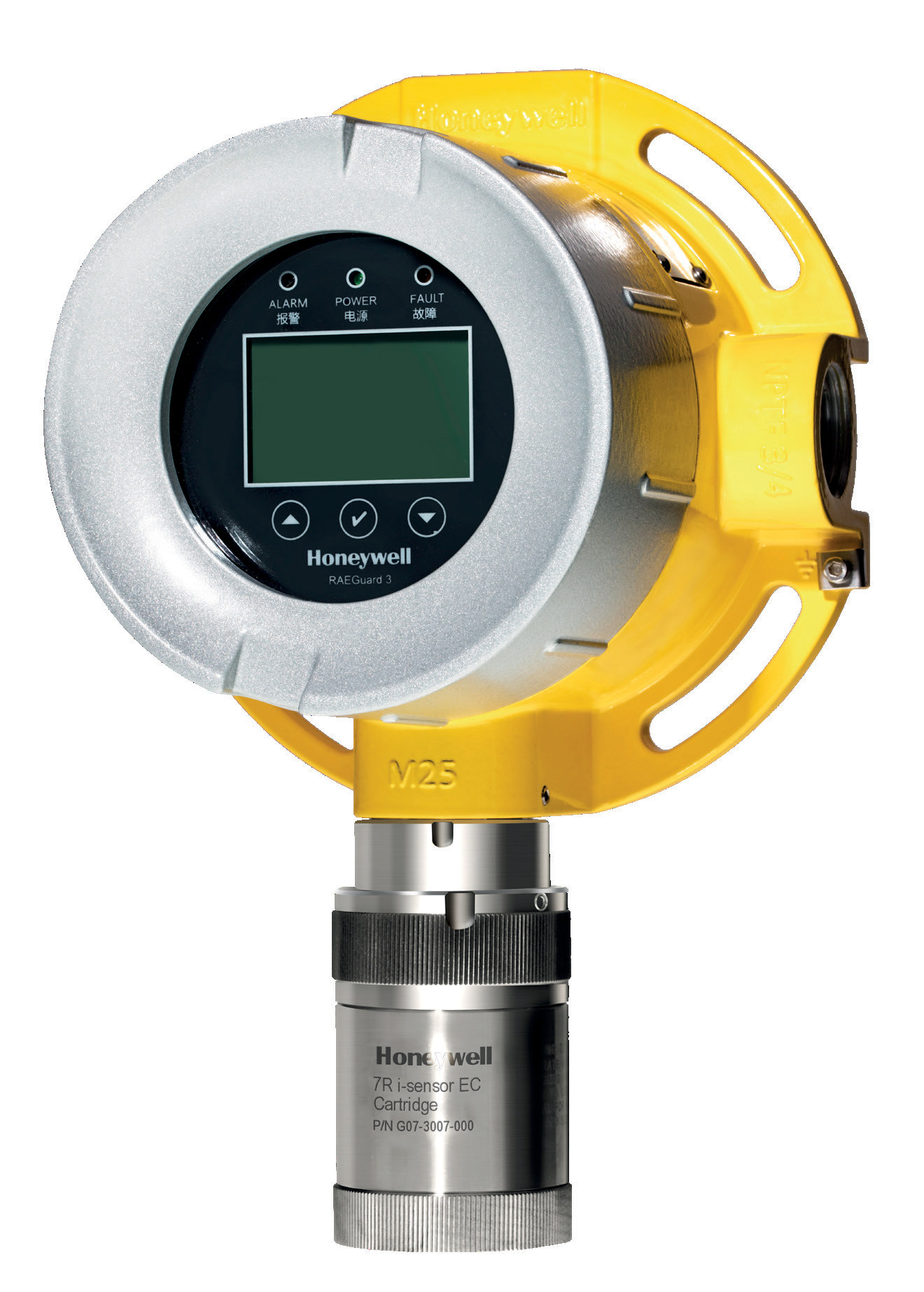

RAEGuard 3 transmitter with sensor cartridge
RAEGuard 3 transmitter with sensor cartridge

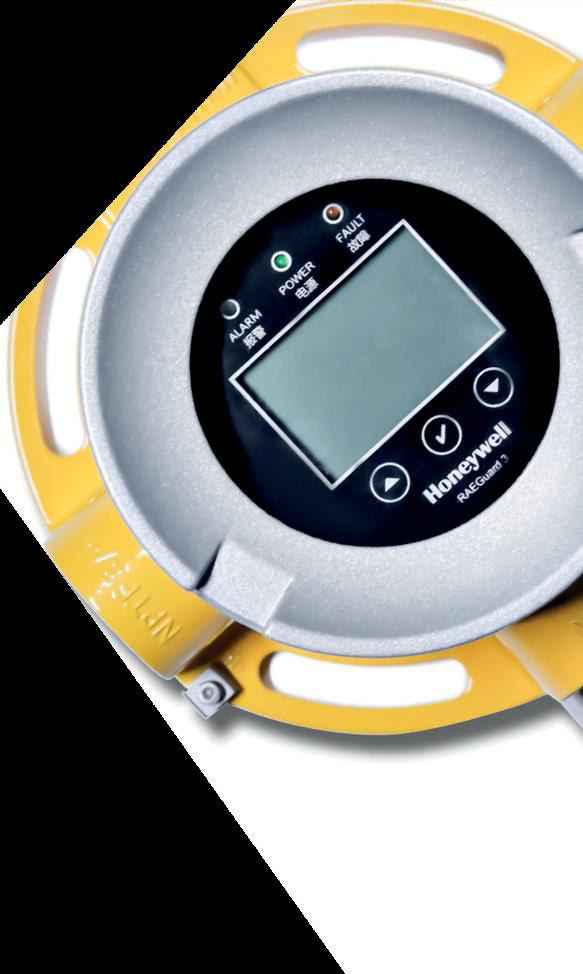

Faceplate: display, status LEDs, mag buttons
Faceplate: display, status LEDs, mag buttons

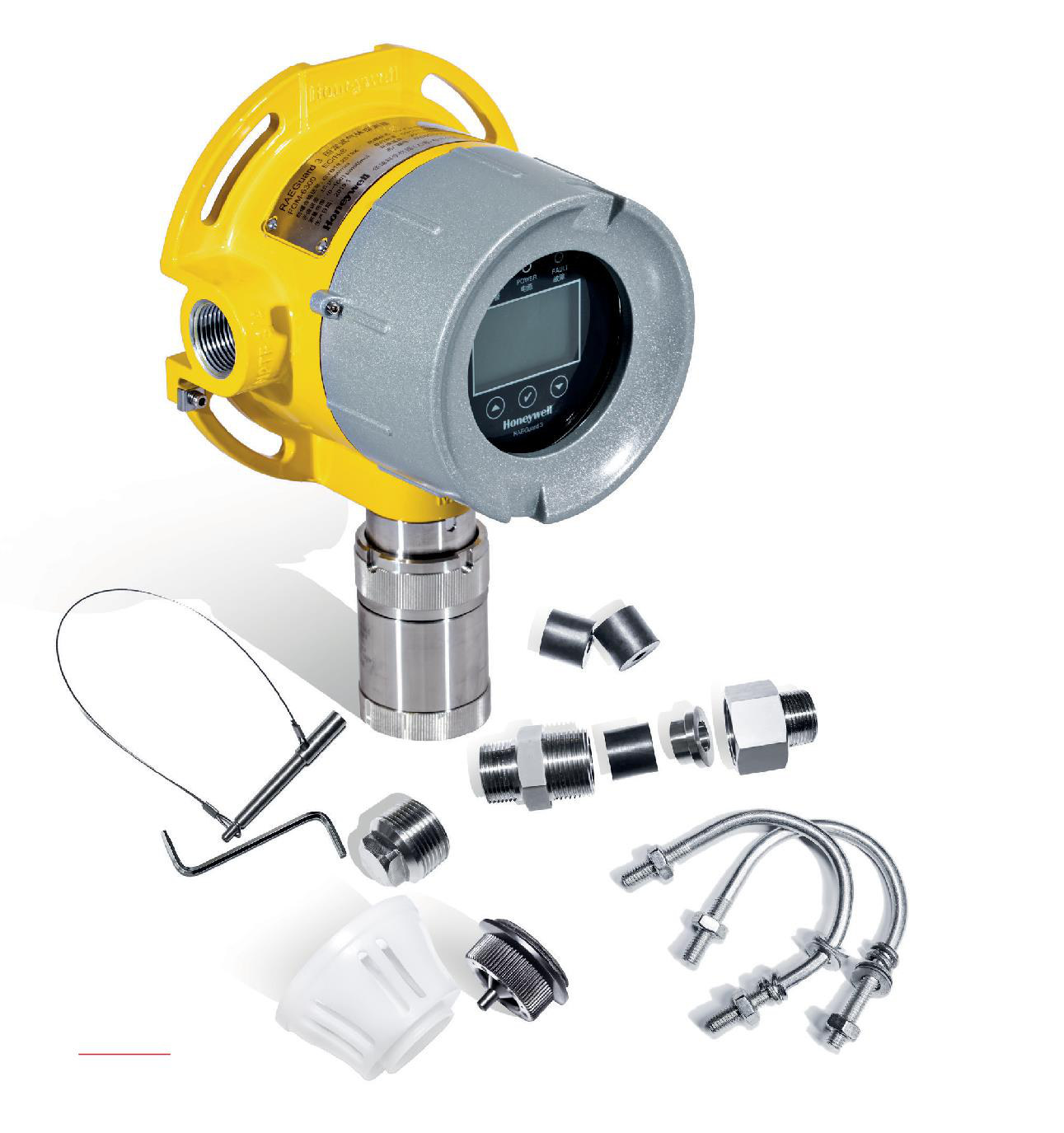

Transmitter with mounting accessories
Transmitter with mounting accessories

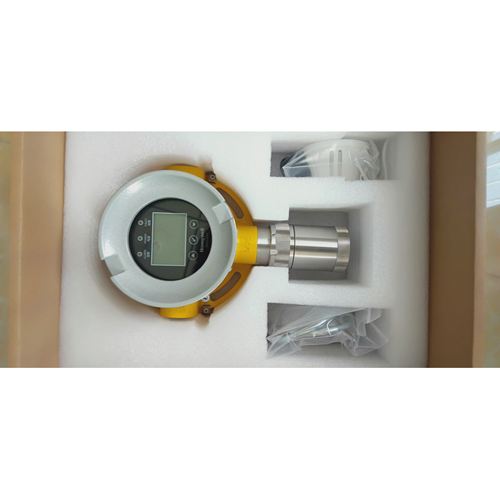

As-shipped packaging photo
As-shipped packaging photo
Three familiesCatalytic flam. · NDIR IR flam. · toxic / O₂
Hot-swap sensorsToxic/O₂ cartridges replaceable under power
Magnetic HMINon-intrusive mag wand; optional BLE
ApprovalsATEX / IECEx / China Ex / SIL2 / HART / CCCF

Specification figures

RAEGuard 3 datasheet cover
RAEGuard 3 datasheet cover

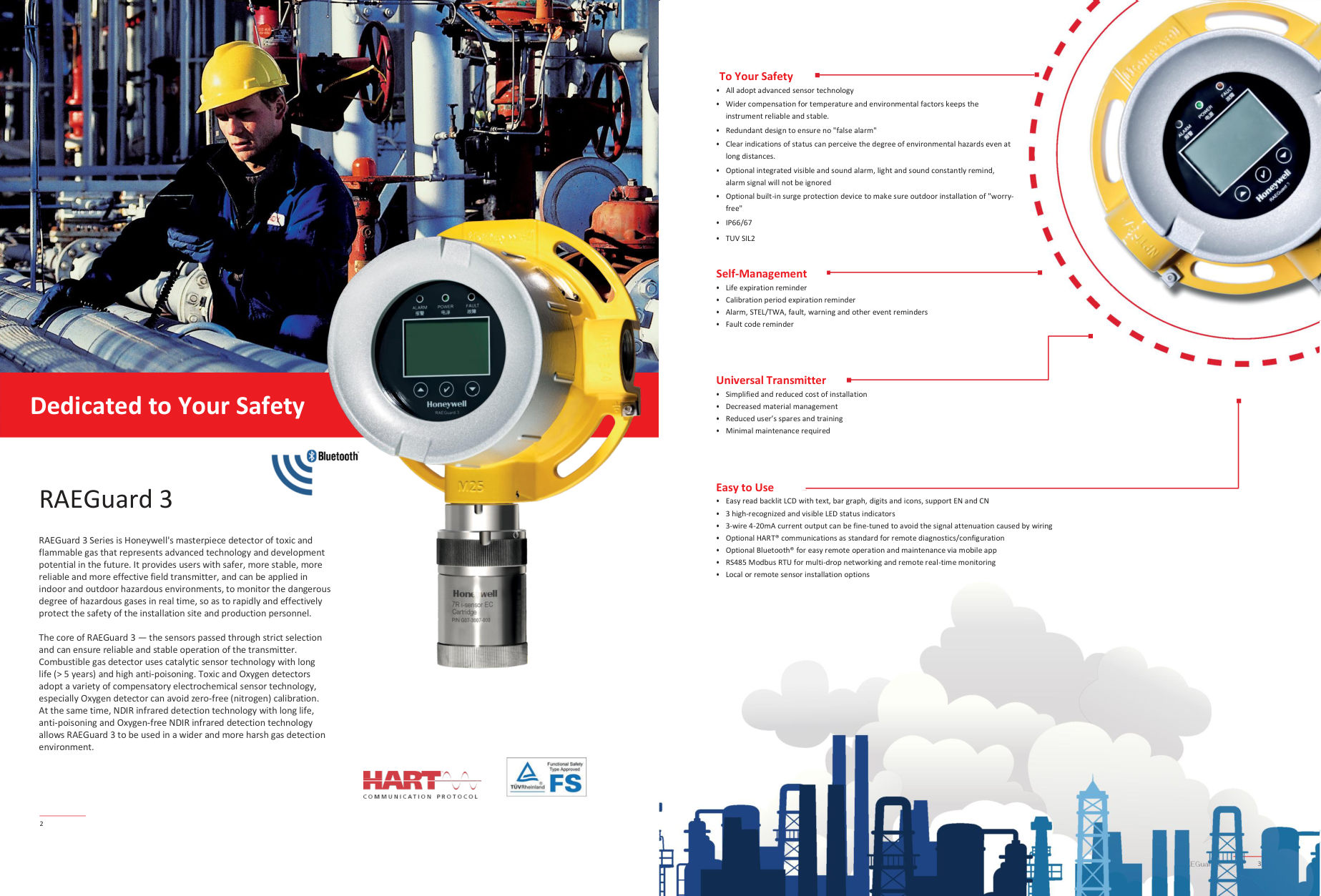

Overview — catalytic / NDIR / toxic
Overview — catalytic / NDIR / toxic

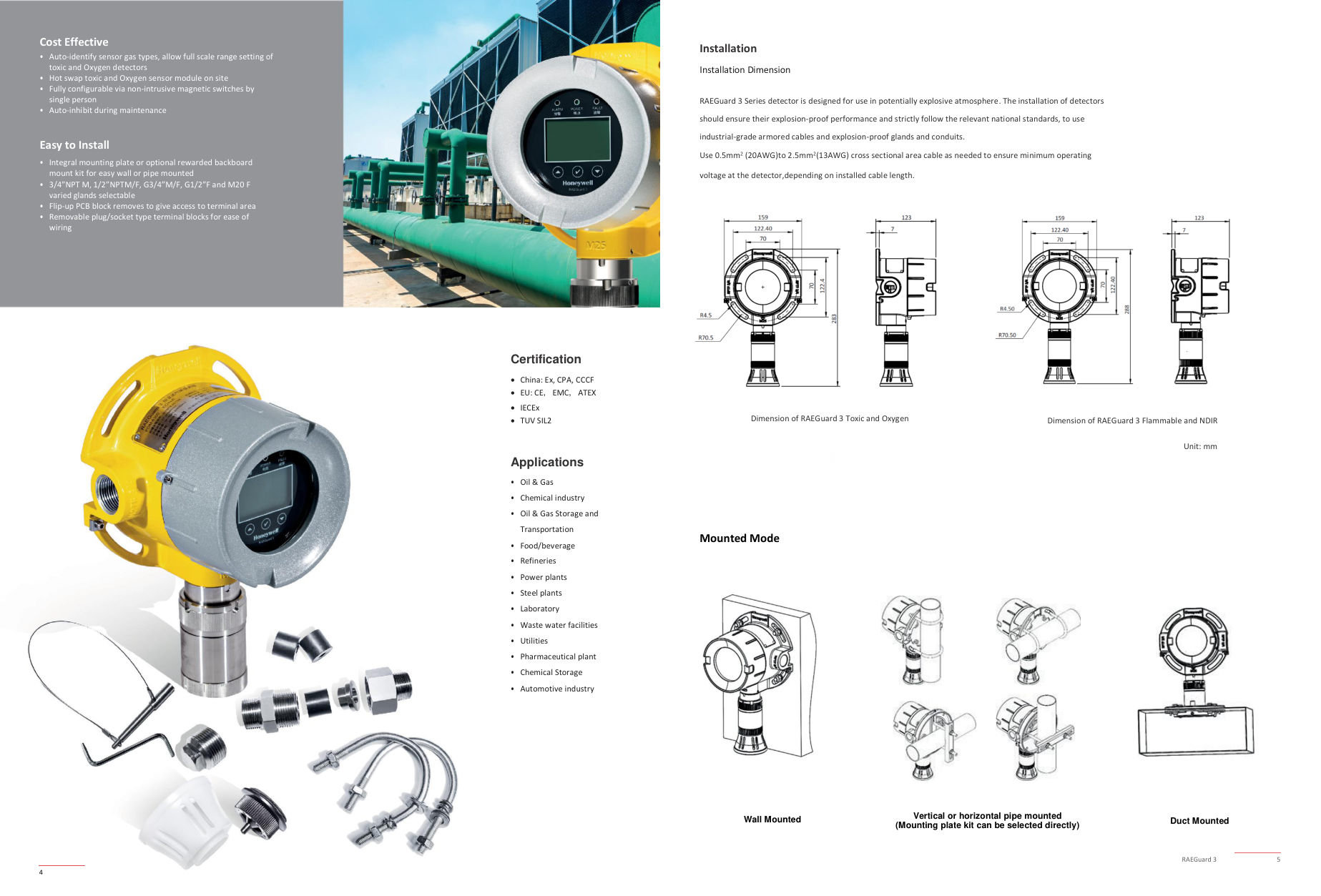

Cost of ownership & hot-swap sensors
Cost of ownership & hot-swap sensors

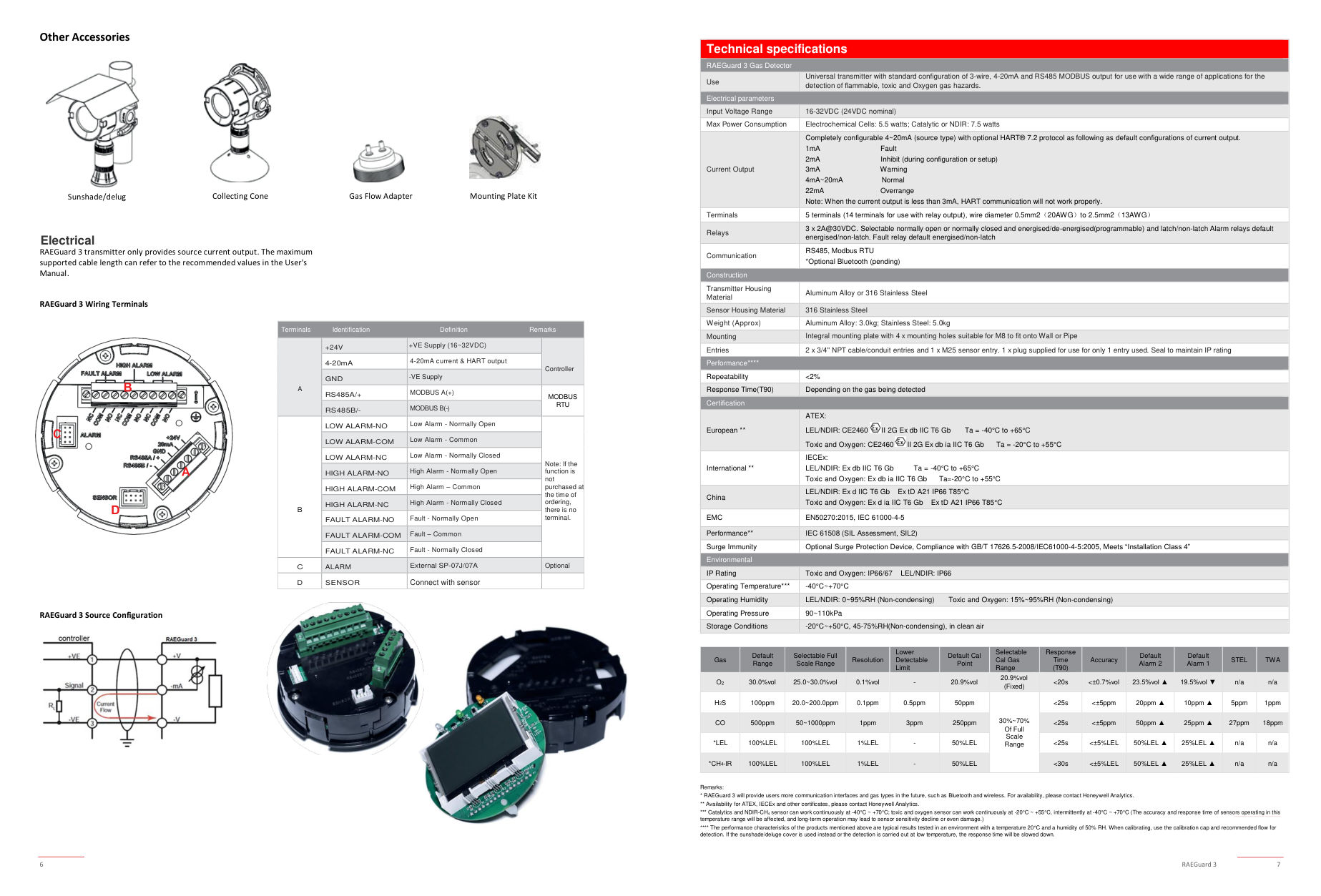

Accessories and options
Accessories and options

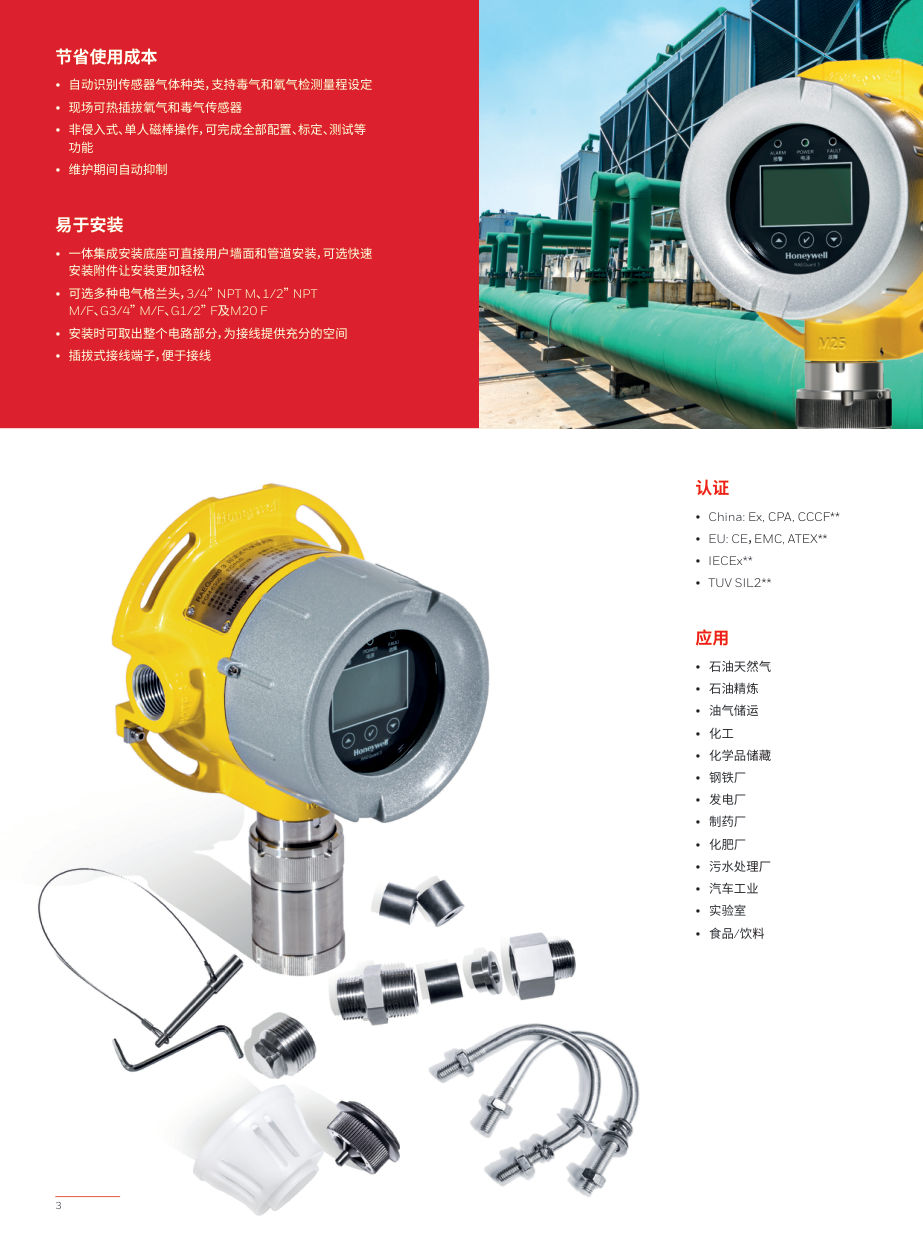

Mechanical installation dimensions
Mechanical installation dimensions

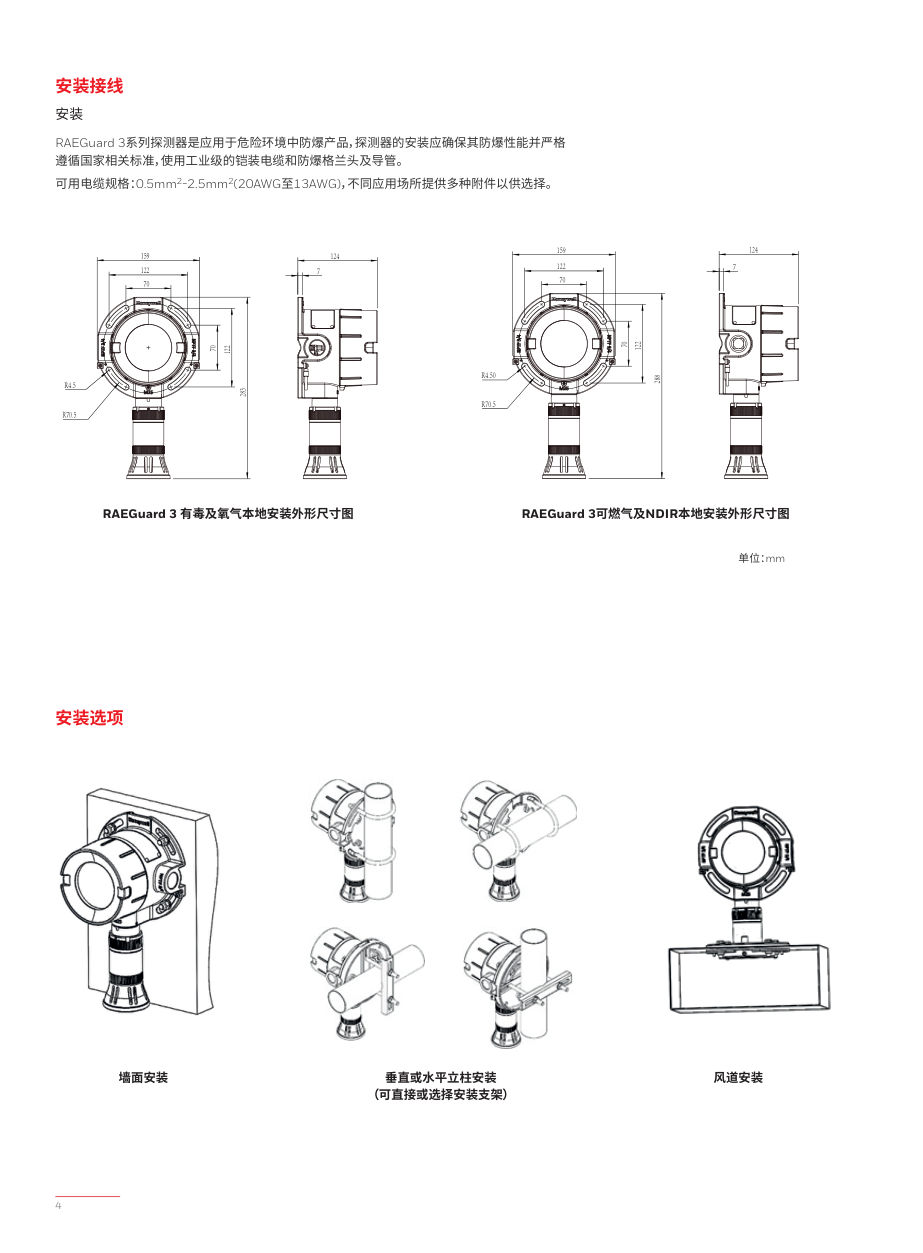

Electrical wiring interfaces
Electrical wiring interfaces

Overview

RAE RAEGuard 3 (Honeywell) is a fixed gas-detector platform with a permanently mounted transmitter and hot-swappable sensing heads. Ordering is organised into three detector families plus parts:

  • Catalytic flammable — LEL / CAT / CH₄ (non-NDIR), including CCCF D06C-40xx
  • Infrared (NDIR) flammable — CH₄, CO₂, propane, propylene, etc.
  • Toxic / oxygen — electrochemical, hot-swap; O₂, H₂S, CO, NH₃, Cl₂, SO₂, H₂, HCL, ETO, HCN, NO, PH₃, etc.
  • Accessories & spares — mount/cal kits, covers & PCB spares, smart sensor cartridges, remote kits and beacons (price list §5.2/§5.3)

Magnetic non-intrusive calibration, optional BLE; 4–20 mA with optional relay/HART; SS or aluminium housing; ATEX / IECEx / China Ex / SIL2 / CCCF.

Features

  • Fixed transmitter + replaceable heads; toxic/O₂ hot-swap cuts downtime
  • Magnetic non-intrusive HMI — calibrate without opening the enclosure; optional BLE
  • 4–20 mA with optional alarm relays and HART
  • Stainless steel or aluminium housing; IP66/67
  • ATEX / IECEx / China Ex / SIL2 / HART / CCS / CPA / CCCF

Key specifications

ItemValue
SeriesRAE RAEGuard 3 (catalytic / NDIR / toxic & O₂)
GasesFlam. LEL/CH₄; NDIR CH₄/CO₂/propane/propylene; O₂, H₂S, CO, NH₃, Cl₂, SO₂, H₂, etc.
PrincipleCatalytic; NDIR IR; electrochemical (toxic/O₂)
Output4–20 mA; optional relay, HART; optional BLE
HousingStainless steel (SS) or aluminium (AL)
IngressIP66 / IP67
OperationMagnetic non-intrusive HMI; hot-swap toxic/O₂ cartridges
ApprovalsATEX CML 19ATEX1375X, IECEx NEP 19.0020X, China Ex, SIL2, CCCF, etc.
EnvironmentFixed industrial hazardous areas (see manuals)

Downloads

CN/EN datasheets and manuals; prefer the latest PDF revision.

Approvals & certifications

Low-resolution, softened first-page previews only — enough to recognise the scheme and number. Official clear PDFs are supplied after purchase. No certificate downloads on this page.

ATEX · CML 19ATEX1375X
ATEX · CML 19ATEX1375XCML 19ATEX1375X Iss.1 ATEX type-examination cover for RAEGuard 3.
IECEx · NEP 19.0020X
IECEx · NEP 19.0020XIECEx NEP 19.0020X certificate of conformity for RAEGuard 3.
China Ex · GYB18.2313X
China Ex · GYB18.2313XChina Ex GYB18.2313X cover for RAEGuard 3.
China Ex · GYB23.2905X
China Ex · GYB23.2905XChina Ex GYB23.2905X for FGM-6XXX / RAEGuard 3.
CE · Declaration
CE · DeclarationCE Declaration of Conformity cover for RAEGuard 3.
SIL 2
SIL 2SIL 2 functional safety certificate cover for RAEGuard 3.
HART
HARTHART registration / certificate cover for RAEGuard 3.
CCS · Marine
CCS · MarineCCS type approval cover for FGM-6a00b / RAEGuard 3.
CPA · FGM-6100
CPA · FGM-6100CPA type-approval cover for FGM-6100.
CPA · FGM-6300
CPA · FGM-6300CPA type-approval cover for FGM-6300 & 6300S.
CCCF · Fire product
CCCF · Fire productCCCF fire-product certification cover for FGM-6100.
EC · IP66/67
EC · IP66/67IP66/67 EC document cover for RAEGuard 3 / FGM-6300.

Part-number configuration key

From the China Fixed Price List (INSTRUMENT). Example: D06A-0120-000 = ATEX stainless + NDIR CH₄ + HART + no BLE + no surge + no gland + ATEX standard kit.

Format: D06 X - XX X X - X X X

  1. D06 — series prefix
  2. X — approval & housing
  3. XX — target gas
  4. X — HART / relay
  5. X — Bluetooth
  6. X — surge module
  7. X — cable gland (mainly China versions)
  8. X — accessory kit

① Approval & housing

CodeDescription
AATEX/IECEx, stainless steel
BATEX/IECEx, aluminium
CChina approval, stainless steel
DChina approval, aluminium

② Gas code (XX, two digits)

CodeDescription
00Catalytic CH₄, 0–100 %LEL
01NDIR CH₄, 0–100 %LEL
02NDIR CO₂, 0–5 %vol (1–5 %vol selectable)
03O₂, 0–30 %vol
04H₂S, 0–100 ppm (20–200 ppm)
05CO, 0–500 ppm (50–1000 ppm)
06H₂, 0–1000 ppm only
07SO₂, 0–20 ppm (10–50 ppm)
08NH₃, 0–100 ppm (20–100 ppm)
09NH₃-H, 0–500 ppm (200–1000 ppm)
10Cl₂, 0–10 ppm (5–50 ppm)
11NO, 0–100 ppm (50–250 ppm)*
12NO₂, 0–20 ppm (10–50 ppm)
13HCl, 0–30 ppm (10–30 ppm)
14HCN, 0–30 ppm (10–50 ppm)
15ETO, 0–100 ppm (10–100 ppm)
16C₃H₃N, 0–10 ppm (4–20 ppm)
17C₂H₃Cl, 0–100 ppm (10–100 ppm)
18CH₄O, 0–100 ppm (20–100 ppm)*
19HCHO, 0–50 ppm (10–50 ppm)*
20ClO₂, 0–1 ppm only*
21C₃H₃N-H, 0–100 ppm (10–100 ppm)*
22PH₃, 0–5 ppm (5–20 ppm)
24COCl₂, 0–1 ppm only*
25Cl₂-L, 0–5 ppm (1–5 ppm)
26H₂S, 0–20 ppm (20–200 ppm)
27H₂S, 0–30 ppm (20–200 ppm)
28H₂S, 0–50 ppm (20–200 ppm)
29H₂S, 0–150 ppm (20–200 ppm)
30H₂S, 0–200 ppm (20–200 ppm)
31CO, 0–50 ppm (50–1000 ppm)
32CO, 0–100 ppm (50–1000 ppm)
33CO, 0–200 ppm (50–1000 ppm)
34CO, 0–300 ppm (50–1000 ppm)
35CO, 0–1000 ppm (50–1000 ppm)
36Propane C₃H₈ NDIR LEL, 0–100 %LEL (fixed)
39Propylene C₃H₆ NDIR LEL, 0–100 %LEL (fixed)

③ HART / relay

CodeDescription
0None
1Relay
2HART
3Relay + HART

④ Bluetooth

CodeDescription
0None
1Bluetooth (APP required)

⑤ Surge protection

CodeDescription
0None
1With surge module

⑥ Cable gland (China approvals)

CodeDescription
0None
13/4″ NPT (M)
21/2″ NPT (M)
31/2″ NPT (F)
4G1/2″ (F)
5G3/4″ (M)
6G3/4″ (F)
7M20 (F)

⑦ Accessory kit

CodeDescription
0ATEX/IECEx, standard accessories
2China, standard accessories
5China, standard + SP07Plus (red lamp)
6CCS, standard accessories (cert fee extra)**
7CCS, standard + SP07Plus (cert fee extra)**

* Gases marked with an asterisk — confirm availability with sales. ** Accessory codes 6/7 CCS fee: higher of 2.5% of the order total or CNY 4,000.

Site families: gas 00 → catalytic flammable; 01/02/36/39 → NDIR IR; other EC codes → toxic / oxygen.

Part-number matrix

Filter by catalytic, NDIR IR, toxic/oxygen, or accessories & spares. Click a P/N for details.

Part numberFamilyGasRangeHousingApprovalOptionsDescription
D06A-0000-000 Catalytic flammable detectorsCH₄0–100 %LELSSATEX—RGD 3.SS,ATX.LEL CH4.STD-ATX
D06A-0001-000 Catalytic flammable detectors—0–100 %LELSSATEXBLERGD 3SS,ATXLEL CH4BLESTD-ATX
D06A-0010-000 Catalytic flammable detectorsCH₄0–100 %LELSSATEXRelayRGD 3.SS,ATX.LEL CH4.RELAY.STD-ATX
D06A-0010-100 Catalytic flammable detectorsCH₄0–100 %LELSSATEXRelay+SPDRGD 3.SS,ATX.LEL CH4.RELAY.SPD.STD-ATX
D06A-0011-000 Catalytic flammable detectors—0–100 %LELSSATEXBLE+RelayRGD 3SS,ATXLELRELAYBLESTD-ATX
D06A-0020-000 Catalytic flammable detectorsCH₄0–100 %LELSSATEXHARTRGD 3.SS,ATX.LEL CH4.HART.STD-ATX
D06A-0020-100 Catalytic flammable detectorsCH₄0–100 %LELSSATEXHART+SPDRGD 3.SS,ATX.LEL CH4.HART.SPD.STD-ATX
D06A-0030-000 Catalytic flammable detectorsCH₄0–100 %LELSSATEXRelay+HARTRGD 3.SS,ATX.LEL CH4.RELAY+HART.STD-ATX
D06A-0030-100 Catalytic flammable detectorsCH₄0–100 %LELSSATEXRelay+HART+SPDRGD 3.SS,ATX.LEL CH4.R+H.SPD.STD-ATX
D06A-0031-000 Catalytic flammable detectors—0–100 %LELSSATEXBLE+Relay+HARTRGD 3SS,ATXLEL CH4R+HBLESTD-ATX
D06B-0000-000 Catalytic flammable detectorsCH₄0–100 %LELALATEX—RGD 3.AL,ATX.LEL CH4.STD-ATX
D06B-0000-100 Catalytic flammable detectorsCH₄0–100 %LELALATEXSPDRGD 3.AL,ATX.LEL CH4.SPD.STD-ATX
D06B-0001-000 Catalytic flammable detectors—0–100 %LELALATEXBLERGD 3AL,ATXLEL CH4BLESTD-ATX
D06B-0010-000 Catalytic flammable detectorsCH₄0–100 %LELALATEXRelayRGD 3.AL,ATX.LEL CH4.RELAY.STD-ATX
D06B-0010-010 Catalytic flammable detectors—0–100 %LELALATEXRelayRGD 3AL,ATXLEL CH4RELAYSTD-ATX
D06B-0010-070 Catalytic flammable detectors—0–100 %LELALATEXRelayRGD 3AL,ATXLEL CH4RELAYSTD-ATX
D06B-0011-000 Catalytic flammable detectors—0–100 %LELALATEXBLE+RelayRGD 3AL,ATXLEL CH4RELAYBLESTD-ATX
D06B-0020-000 Catalytic flammable detectorsCH₄0–100 %LELALATEXHARTRGD 3.AL,ATX.LEL CH4.HART.STD-ATX
D06B-0020-100 Catalytic flammable detectorsCH₄0–100 %LELALATEXHART+SPDRGD 3.AL,ATX.LEL CH4.HART.SPD.STD-ATX
D06B-0021-000 Catalytic flammable detectors—0–100 %LELALATEXBLE+HARTRGD 3AL,ATXLEL CH4HARTBLESTD-ATX
D06B-0030-000 Catalytic flammable detectorsCH₄0–100 %LELALATEXRelay+HARTRGD 3.AL,ATX.LEL CH4.RELAY+HART.STD-ATX
D06B-0030-100 Catalytic flammable detectorsCH₄0–100 %LELALATEXRelay+HART+SPDRGD 3.AL,ATX.LEL CH4.R+H.SPD.STD-ATX
D06B-0031-000 Catalytic flammable detectors—0–100 %LELALATEXBLE+Relay+HARTRGD 3AL,ATXLEL CH4R+HBLESTD-ATX
D06C-4010-005 Catalytic flammable detectorsCH₄0–100 %LELSSCCCF/CNRelayRGD 3SS,CNLEL CH4 CCCFRELAY
D06C-4010-012 Catalytic flammable detectorsCH₄0–100 %LELSSCCCF/CNRelayRGD 3SS,CNLEL CH4,CCCFRELAYSTD-CN
D06C-4030-002 Catalytic flammable detectorsCH₄0–100 %LELSSCCCF/CNRelay+HARTRGD 3SS,CNLEL CH4,CCCFR+HSTD-CN
D06J-0000-008 Catalytic flammable detectorsCH₄0–100 %LEL———RGD 3LEL CH4
D06J-0020-000 Catalytic flammable detectors—0–100 %LEL—ATEXHARTRGD 3LEL CH4HARTSTD-ATX
D06J-0020-008 Catalytic flammable detectorsCH₄——ATEXHARTRG3 S ATEXIECEx ,CAT - CH4,  HART Outpu
D06K-0000-008 Catalytic flammable detectorsCH₄0–100 %LEL———RGD 3LEL CH4
D06K-0001-008 Catalytic flammable detectors—0–100 %LEL——BLERGD 3LEL CH4BLESTD FOR TRCU
D06K-0010-008 Catalytic flammable detectors—0–100 %LEL——RelayRGD 3LEL CH4RELAY
D06K-0011-008 Catalytic flammable detectors—0–100 %LEL——BLE+RelayRGD 3LEL CH4RELAYBLE
D06K-0020-008 Catalytic flammable detectorsCH₄—ALATEXHARTRG3 AL ATEXIECEx ,CAT - CH4,  HART Outp
D06K-0030-008 Catalytic flammable detectorsCH₄—ALATEXRelayRG3 AL ATEXIECEx ,CAT - CH4,  Relay+HAR
D06K-0030-108 Catalytic flammable detectors—0–100 %LEL——Relay+HART+SPDRGD 3LELRELAY&HARTSPD
D06A-0100-000 Infrared (NDIR) flammable detectors——SSATEX—RGD 3SS,ATXNDIR CH4STD-ATX
D06A-0101-000 Infrared (NDIR) flammable detectors——SSATEXBLERGD 3SS,ATXNDIR CH4BLESTD-ATX
D06A-0110-000 Infrared (NDIR) flammable detectors——SSATEXRelayRGD 3SS,ATXNDIR CH4RELAYSTD-ATX
D06A-0110-010 Infrared (NDIR) flammable detectors——SSATEXRelayRGD 3SS,ATXNDIR CH4RELAYSTD-ATX
D06A-0110-020 Infrared (NDIR) flammable detectors——SSATEXRelayRGD 3SS,ATXNDIR CH4RELAYSTD-ATX
D06A-0120-000 Infrared (NDIR) flammable detectorsCH₄—SS—HARTRAEGUARD 3.SS,CH4-NDIR.HART.STANDARD KIT
D06A-0121-000 Infrared (NDIR) flammable detectorsCH₄0–100 %LEL———RG3, 4-20mA Output,NDIR-CH4,0-100%LEL,0-
D06A-0130-000 Infrared (NDIR) flammable detectorsCH₄—SSATEXRelay+HARTRGD 3.SS,ATX.NDIR CH4.RELAY+HART.STD-ATX
D06B-0100-000 Infrared (NDIR) flammable detectors——ALATEX—RGD 3AL,ATXNDIR CH4STD-ATX
D06B-0100-100 Infrared (NDIR) flammable detectors——ALATEXSPDRGD 3AL,ATXNDIR CH4SPDSTD-ATX
D06B-0101-000 Infrared (NDIR) flammable detectors——ALATEXBLERGD 3AL,ATXNDIR CH4BLESTD-ATX
D06B-0110-000 Infrared (NDIR) flammable detectors——ALATEXRelayRGD 3AL,ATXNDIR CH4RELAYSTD-ATX
D06B-0110-030 Infrared (NDIR) flammable detectors——ALATEXRelayRGD 3AL,ATXNDIR CH4RELAYSTD-ATX
D06B-0120-000 Infrared (NDIR) flammable detectorsCH₄—AL—HARTRG3.AL,CH4-NDIR.HART.
D06B-0120-100 Infrared (NDIR) flammable detectors——ALATEXHART+SPDRGD 3AL,ATXNDIR CH4HARTSPDSTD-ATX
D06B-0130-000 Infrared (NDIR) flammable detectorsCH₄—ALATEXRelay+HARTRGD 3.AL,ATX.NDIR CH4.RELAY+HART.STD-ATX
D06B-0131-000 Infrared (NDIR) flammable detectors——ALATEXBLE+Relay+HARTRGD 3AL,ATXNDIR CH4R+HBLESTD-ATX
D06B-0210-000 Infrared (NDIR) flammable detectors——ALATEXRelayRGD 3AL,ATXNDIR CO2RELAYSTD-ATX
D06B-3600-000 Infrared (NDIR) flammable detectorsPropane—ALATEX—RGD 3AL,ATXNDIR-PROPANESTD-ATX
D06B-3600-100 Infrared (NDIR) flammable detectors——ALATEXSPDRGD 3AL,ATXNDIR-PSPDSTD-ATX
D06B-3900-000 Infrared (NDIR) flammable detectorsPropylene—ALATEX—RGD 3AL,ATXNDIR-PROPYLENESTD-ATX
D06C-0200-002 Infrared (NDIR) flammable detectors——SSCN—RGD 3SS,CNNDIR CO2STD-CN
D06C-0210-002 Infrared (NDIR) flammable detectors——SSCNRelayRGD 3SS,CNNDIR CO2RELAYSTD-CN
D06C-0210-005 Infrared (NDIR) flammable detectors——SSCNRelayRGD 3SS,CNNDIR CO2RELAY
D06C-0210-012 Infrared (NDIR) flammable detectors——SSCNRelayRGD 3SS,CNNDIR CO2RELAYSTD-CN
D06C-0210-072 Infrared (NDIR) flammable detectors——SSCNRelayRGD 3SS,CNNDIR CO2RELAYSTD-CN
D06J-0100-008 Infrared (NDIR) flammable detectorsCH₄————RGD 3NDIR CH4
D06J-0110-008 Infrared (NDIR) flammable detectors————RelayRGD 3NDIR CH4RELAY
D06J-0120-000 Infrared (NDIR) flammable detectors———ATEXHARTRGD 3NDIR CH4HARTSTD-ATX
D06J-0120-008 Infrared (NDIR) flammable detectors————HARTRGD 3NDIR CH4HART
D06J-0220-008 Infrared (NDIR) flammable detectors————HARTRGD 3NDIR CO2HART
D06J-3600-008 Infrared (NDIR) flammable detectors—————RGD 3NDIR-P
D06K-0100-008 Infrared (NDIR) flammable detectorsCH₄————RGD 3NDIR CH4
D06K-0110-008 Infrared (NDIR) flammable detectors————RelayRGD 3NDIR CH4RELAY
D06K-0120-000 Infrared (NDIR) flammable detectors———ATEXHARTRGD 3NDIR CH4HARTSTD-ATX
D06K-0120-008 Infrared (NDIR) flammable detectorsCH₄—ALATEXHARTRG3 AL ATEXIECEx ,NDIR - CH4,  HART Out
D06K-0120-108 Infrared (NDIR) flammable detectors————HART+SPDRGD 3NDIR CH4HARTSPD
D06K-0130-008 Infrared (NDIR) flammable detectorsCH₄—ALATEXRelayRG3 AL ATEXIECEx ,NDIR - CH4,  Relay+ H
D06K-0130-108 Infrared (NDIR) flammable detectors————Relay+HART+SPDRGD 3NDIR CH4R+HSPD
D06K-0210-008 Infrared (NDIR) flammable detectorsCO₂—ALATEXRelayRG3 AL ATEXIECEx ,NDIR - CO2,  Relay Ou
D06K-0220-008 Infrared (NDIR) flammable detectors————HARTRGD 3NDIR CO2HART
D06A-0300-000 Toxic & oxygen detectorsO₂0–25 %v/vSSATEX—RGD 3.SS,ATX.O2.STD-ATX
D06A-0301-000 Toxic & oxygen detectors——SSATEXBLERGD 3SS,ATXO2BLESTD-ATX
D06A-0310-000 Toxic & oxygen detectorsO₂0–25 %v/vSSATEXRelayRGD 3.SS,ATX.O2.RELAY.STD-ATX
D06A-0320-000 Toxic & oxygen detectorsO₂0–25 %v/vSSATEXHARTRGD 3.SS,ATX.O2.HART.STD-ATX
D06A-0330-000 Toxic & oxygen detectorsO₂0–25 %v/vSSATEXRelay+HARTRGD 3.SS,ATX.O2.RELAY+HART.STD-ATX
D06A-0331-000 Toxic & oxygen detectors——SSATEXBLE+Relay+HARTRGD 3SS,ATXO2R+HBLESTD-ATX
D06A-0400-000 Toxic & oxygen detectorsH₂S—SSATEX—RGD 3.SS,ATX.H2S.STD-ATX
D06A-0401-000 Toxic & oxygen detectors——SSATEXBLERGD 3SS,ATXH2SBLESTD-ATX
D06A-0410-000 Toxic & oxygen detectorsH₂S—SSATEXRelayRGD 3.SS,ATX.H2S.RELAY.STD-ATX
D06A-0420-000 Toxic & oxygen detectorsH₂S—SSATEXHARTRGD 3.SS,ATX.H2S.HART.STD-ATX
D06A-0420-100 Toxic & oxygen detectorsH₂S—SSATEXHART+SPDRGD 3.SS,ATX.H2S.HART.SPD.STD-ATX
D06A-0430-000 Toxic & oxygen detectorsH₂S—SSATEXRelay+HARTRGD 3.SS,ATX.H2S.RELAY+HART.STD-ATX
D06A-0430-100 Toxic & oxygen detectorsH₂S—SSATEXRelay+HART+SPDRGD 3.SS,ATX.H2S.R+H.SPD.STD-ATX
D06A-0431-000 Toxic & oxygen detectors——SSATEXBLE+Relay+HARTRGD 3SS,ATXH2SR+HBLESTD-ATX
D06A-0500-000 Toxic & oxygen detectorsCO—SSATEX—RGD 3.SS,ATX.CO.STD-ATX
D06A-0501-000 Toxic & oxygen detectors——SSATEXBLERGD 3SS,ATXCOBLESTD-ATX
D06A-0510-000 Toxic & oxygen detectorsCO—SSATEXRelayRGD 3.SS,ATX.CO.RELAY.STD-ATX
D06A-0520-000 Toxic & oxygen detectorsCO—SSATEXHARTRGD 3.SS,ATX.CO.HART.STD-ATX
D06A-0530-000 Toxic & oxygen detectorsCO—SSATEXRelay+HARTRGD 3.SS,ATX.CO.RELAY+HART.STD-ATX
D06A-0531-000 Toxic & oxygen detectors——SSATEXBLE+Relay+HARTRGD 3SS,ATXCOR+HBLESTD-ATX
D06A-0600-000 Toxic & oxygen detectors——SSATEX—RGD 3SS,ATXH2STD-ATX
D06A-0601-000 Toxic & oxygen detectors——SSATEXBLERGD 3SS,ATXH2BLESTD-ATX
D06A-0610-000 Toxic & oxygen detectors——SSATEXRelayRGD 3SS,ATXH2RELAYSTD-ATX
D06A-0611-000 Toxic & oxygen detectors——SSATEXBLE+RelayRGD 3SS,ATXH2RELAYBLESTD-ATX
D06A-0620-000 Toxic & oxygen detectors——SSATEXHARTRGD 3SS,ATXH2HARTSTD-ATX
D06A-0630-000 Toxic & oxygen detectors——SSATEXRelay+HARTRGD 3SS,ATXH2R+HSTD-ATX
D06A-0631-000 Toxic & oxygen detectors——SSATEXBLE+Relay+HARTRGD 3SS,ATXH2R+HBLESTD-ATX
D06A-0700-000 Toxic & oxygen detectors——SSATEX—RGD 3SS,ATXSO2STD-ATX
D06A-0701-000 Toxic & oxygen detectors——SSATEXBLERGD 3SS,ATXSO2BLESTD-ATX
D06A-0710-000 Toxic & oxygen detectors——SSATEXRelayRGD 3SS,ATXSO2RELAYSTD-ATX
D06A-0720-000 Toxic & oxygen detectors——SSATEXHARTRGD 3SS,ATXSO2HARTSTD-ATX
D06A-0720-100 Toxic & oxygen detectors——SSATEXHART+SPDRGD 3SS,ATXSO2HARTSPDSTD-ATX
D06A-0730-000 Toxic & oxygen detectors——SSATEXRelay+HARTRGD 3SS,ATXSO2R+HSTD-ATX
D06A-0731-000 Toxic & oxygen detectors——SSATEXBLE+Relay+HARTRGD 3SS,ATXSO2R+HBLESTD-ATX
D06A-0801-000 Toxic & oxygen detectors——SSATEXBLERGD 3SS,ATXNH3BLESTD-ATX
D06A-0810-000 Toxic & oxygen detectorsNH₃—SSATEXRelayRGD 3.SS,ATX.NH3.RELAY.STD-ATX
D06A-0820-000 Toxic & oxygen detectorsNH₃—SSATEXHARTRGD 3.SS,ATX.NH3.HART.STD-ATX
D06A-0820-100 Toxic & oxygen detectorsNH₃—SSATEXHART+SPDRGD 3.SS,ATX.NH3.HART.SPD.STD-ATX
D06A-0831-000 Toxic & oxygen detectors——SSATEXBLE+Relay+HARTRGD 3SS,ATXNH3R+HBLESTD-ATX
D06A-0900-000 Toxic & oxygen detectors——SSATEX—RGD 3SS,ATXNH3 HRSTD-ATX
D06A-0901-000 Toxic & oxygen detectors——SSATEXBLERGD 3SS,ATXNH3 HRBLESTD-ATX
D06A-0910-000 Toxic & oxygen detectors——SSATEXRelayRGD 3SS,ATXNH3 HRRELAYSTD-ATX
D06A-0920-000 Toxic & oxygen detectors——SSATEXHARTRGD 3SS,ATXNH3 HRHARTSTD-ATX
D06A-0930-000 Toxic & oxygen detectors——SSATEXRelay+HARTRGD 3SS,ATXNH3 HRR+HSTD-ATX
D06A-0931-000 Toxic & oxygen detectors——SSATEXBLE+Relay+HARTRGD 3SS,ATXNH3 HRR+HBLESTD-ATX
D06A-1000-000 Toxic & oxygen detectors——SSATEX—RGD 3SS,ATXCL2STD-ATX
D06A-1001-000 Toxic & oxygen detectors——SSATEXBLERGD 3SS,ATXCL2BLESTD-ATX
D06A-1010-000 Toxic & oxygen detectors——SSATEXRelayRGD 3SS,ATXCL2RELAYSTD-ATX
D06A-1020-000 Toxic & oxygen detectors——SSATEXHARTRGD 3SS,ATXCL2HARTSTD-ATX
D06A-1030-000 Toxic & oxygen detectors——SSATEXRelay+HARTRGD 3SS,ATXCL2R+HSTD-ATX
D06A-1031-000 Toxic & oxygen detectors——SSATEXBLE+Relay+HARTRGD 3SS,ATXCL2R+HBLESTD-ATX
D06A-1300-000 Toxic & oxygen detectors——SSATEX—RGD 3SS,ATXHCLSTD-ATX
D06A-1301-000 Toxic & oxygen detectors——SSATEXBLERGD 3SS,ATXHCLBLESTD-ATX
D06A-1310-000 Toxic & oxygen detectors——SSATEXRelayRGD 3SS,ATXHCLRELAYSTD-ATX
D06A-1320-000 Toxic & oxygen detectors——SSATEXHARTRGD 3SS,ATXHCLHARTSTD-ATX
D06A-1330-000 Toxic & oxygen detectors——SSATEXRelay+HARTRGD 3SS,ATXHCLR+HSTD-ATX
D06A-1331-000 Toxic & oxygen detectors——SSATEXBLE+Relay+HARTRGD 3SS,ATXHCLR+HBLESTD-ATX
D06A-1500-000 Toxic & oxygen detectors——SSATEX—RGD 3SS,ATXETOSTD-ATX
D06A-1501-000 Toxic & oxygen detectors——SSATEXBLERGD 3SS,ATXETOBLESTD-ATX
D06A-1510-000 Toxic & oxygen detectors——SSATEXRelayRGD 3SS,ATXETORELAYSTD-ATX
D06A-1520-000 Toxic & oxygen detectors——SSATEXHARTRGD 3SS,ATXETOHARTSTD-ATX
D06A-1530-000 Toxic & oxygen detectors——SSATEXRelay+HARTRGD 3SS,ATXETOR+HSTD-ATX
D06A-1531-000 Toxic & oxygen detectors——SSATEXBLE+Relay+HARTRGD 3SS,ATXETOR+HBLESTD-ATX
D06A-1700-000 Toxic & oxygen detectorsC₂H₃Cl—SSATEX—RGD 3SS,ATXC2H3CLSTD-ATX
D06A-1701-000 Toxic & oxygen detectorsC₂H₃Cl—SSATEXBLERGD 3SS,ATXC2H3CLBLESTD-ATX
D06A-1710-000 Toxic & oxygen detectorsC₂H₃Cl—SSATEXRelayRGD 3SS,ATXC2H3CLRELAYSTD-ATX
D06A-1720-000 Toxic & oxygen detectorsC₂H₃Cl—SSATEXHARTRGD 3SS,ATXC2H3CLHARTSTD-ATX
D06A-1730-000 Toxic & oxygen detectorsC₂H₃Cl—SSATEXRelay+HARTRGD 3SS,ATXC2H3CLR+HSTD-ATX
D06A-1731-000 Toxic & oxygen detectorsC₂H₃Cl—SSATEXBLE+Relay+HARTRGD 3SS,ATXC2H3CLR+HBLESTD-ATX
D06A-2810-000 Toxic & oxygen detectors—0–50 PPMSSATEXRelayRGD 3SS,ATXH2S,0-50PPMRELAYSTD-ATX
D06A-2830-000 Toxic & oxygen detectors——SSATEXRelay+HARTRGD 3SS,ATXH2SR+HSTD-ATX
D06A-2931-000 Toxic & oxygen detectors——SSATEXBLE+Relay+HARTRGD 3SS,ATXH2SR+HBLESTD-ATX
D06B-0300-000 Toxic & oxygen detectorsO₂0–25 %v/vALATEX—RGD 3.AL,ATX.O2.STD-ATX
D06B-0301-000 Toxic & oxygen detectors——ALATEXBLERGD 3AL,ATXO2BLESTD-ATX
D06B-0310-000 Toxic & oxygen detectorsO₂0–25 %v/vALATEXRelayRGD 3.AL,ATX.O2.RELAY.STD-ATX
D06B-0310-020 Toxic & oxygen detectors——ALATEXRelayRGD 3AL,ATXO2RELAYSTD-ATX
D06B-0320-000 Toxic & oxygen detectorsO₂0–25 %v/vALATEXHARTRGD 3.AL,ATX.O2.HART.STD-ATX
D06B-0330-000 Toxic & oxygen detectorsO₂0–25 %v/vALATEXRelay+HARTRGD 3.AL,ATX.O2.RELAY+HART.STD-ATX
D06B-0331-000 Toxic & oxygen detectors——ALATEXBLE+Relay+HARTRGD 3AL,ATXO2R+HBLESTD-ATX
D06B-0400-000 Toxic & oxygen detectorsH₂S—ALATEX—RGD 3.AL,ATX.H2S.STD-ATX
D06B-0400-010 Toxic & oxygen detectors——ALATEX—RGD 3AL,ATXH2SSTD-ATX
D06B-0400-100 Toxic & oxygen detectorsH₂S—ALATEXSPDRGD 3.AL,ATX.H2S.SPD.STD-ATX
D06B-0410-000 Toxic & oxygen detectorsH₂S—ALATEXRelayRGD 3.AL,ATX.H2S.RELAY.STD-ATX
D06B-0420-000 Toxic & oxygen detectorsH₂S—ALATEXHARTRGD 3.AL,ATX.H2S.HART.STD-ATX
D06B-0420-100 Toxic & oxygen detectorsH₂S—ALATEXHART+SPDRGD 3.AL,ATX.H2S.HART.SPD.STD-ATX
D06B-0430-000 Toxic & oxygen detectorsH₂S—ALATEXRelay+HARTRGD 3.AL,ATX.H2S.RELAY+HART.STD-ATX
D06B-0430-100 Toxic & oxygen detectorsH₂S—ALATEXRelay+HART+SPDRGD 3.AL,ATX.H2S.R+H.SPD.STD-ATX
D06B-0431-000 Toxic & oxygen detectors——ALATEXBLE+Relay+HARTRGD 3AL,ATXH2SR+HBLESTD-ATX
D06B-0500-000 Toxic & oxygen detectorsCO—ALATEX—RGD 3.AL,ATX.CO.STD-ATX
D06B-0501-000 Toxic & oxygen detectors——ALATEXBLERGD 3AL,ATXCOBLESTD-ATX
D06B-0510-000 Toxic & oxygen detectorsCO—ALATEXRelayRGD 3.AL,ATX.CO.RELAY.STD-ATX
D06B-0510-010 Toxic & oxygen detectors——ALATEXRelayRGD 3AL,ATXCORELAYSTD-ATX
D06B-0520-000 Toxic & oxygen detectorsCO—ALATEXHARTRGD 3.AL,ATX.CO.HART.STD-ATX
D06B-0521-000 Toxic & oxygen detectors——ALATEXBLE+HARTRGD 3AL,ATXCOHARTBLESTD-ATX
D06B-0530-000 Toxic & oxygen detectorsCO—ALATEXRelay+HARTRGD 3.AL,ATX.CO.RELAY+HART.STD-ATX
D06B-0530-030 Toxic & oxygen detectors——ALATEXRelay+HARTRGD 3AL,ATXCORELAY+HARTSTD-ATX
D06B-0531-000 Toxic & oxygen detectors——ALATEXBLE+Relay+HARTRGD 3AL,ATXCOR+HBLESTD-ATX
D06B-0600-000 Toxic & oxygen detectors——ALATEX—RGD 3AL,ATXH2STD-ATX
D06B-0601-000 Toxic & oxygen detectors——ALATEXBLERGD 3AL,ATXH2BLESTD-ATX
D06B-0610-000 Toxic & oxygen detectors——ALATEXRelayRGD 3AL,ATXH2RELAYSTD-ATX
D06B-0611-000 Toxic & oxygen detectors——ALATEXBLE+RelayRGD 3AL,ATXH2RELAYBLESTD-ATX
D06B-0620-000 Toxic & oxygen detectors——ALATEXHARTRGD 3AL,ATXH2HARTSTD-ATX
D06B-0631-000 Toxic & oxygen detectors——ALATEXBLE+Relay+HARTRGD 3AL,ATXH2R+HBLESTD-ATX
D06B-0700-000 Toxic & oxygen detectors——ALATEX—RGD 3AL,ATXSO2STD-ATX
D06B-0700-100 Toxic & oxygen detectors——ALATEXSPDRGD 3AL,ATXSO2SPDSTD-ATX
D06B-0701-000 Toxic & oxygen detectors——ALATEXBLERGD 3AL,ATXSO2BLESTD-ATX
D06B-0710-000 Toxic & oxygen detectors——ALATEXRelayRGD 3AL,ATXSO2RELAYSTD-ATX
D06B-0720-000 Toxic & oxygen detectors——ALATEXHARTRGD 3AL,ATXSO2HARTSTD-ATX
D06B-0730-000 Toxic & oxygen detectors——ALATEXRelay+HARTRGD 3AL,ATXSO2R+HSTD-ATX
D06B-0731-000 Toxic & oxygen detectors——ALATEXBLE+Relay+HARTRGD 3AL,ATXSO2R+HBLESTD-ATX
D06B-0800-000 Toxic & oxygen detectorsNH₃—ALATEX—RGD 3.AL,ATX.NH3.STD-ATX
D06B-0800-030 Toxic & oxygen detectors——ALATEX—RGD 3AL,ATXNH3STD-ATX
D06B-0800-070 Toxic & oxygen detectors——ALATEX—RGD 3AL,ATXNH3STD-ATX
D06B-0801-000 Toxic & oxygen detectors——ALATEXBLERGD 3AL,ATXNH3BLESTD-ATX
D06B-0810-000 Toxic & oxygen detectorsNH₃—ALATEXRelayRGD 3.AL,ATX.NH3.RELAY.STD-ATX
D06B-0810-010 Toxic & oxygen detectors——ALATEXRelayRGD 3AL,ATXNH3RELAYSTD-ATX
D06B-0820-000 Toxic & oxygen detectorsNH₃—ALATEXHARTRGD 3.AL,ATX.NH3.HART.STD-ATX
D06B-0830-000 Toxic & oxygen detectorsNH₃—ALATEXRelay+HARTRGD 3.AL,ATX.NH3.R+H.STD-ATX
D06B-0900-000 Toxic & oxygen detectors——ALATEX—RGD 3AL,ATXNH3 HRSTD-ATX
D06B-0901-000 Toxic & oxygen detectors——ALATEXBLERGD 3AL,ATXNH3 HRBLESTD-ATX
D06B-0910-000 Toxic & oxygen detectors——ALATEXRelayRGD 3AL,ATXNH3 HRRELAYSTD-ATX
D06B-0920-000 Toxic & oxygen detectors——ALATEXHARTRGD 3AL,ATXNH3 HRHARTSTD-ATX
D06B-0930-000 Toxic & oxygen detectors——ALATEXRelay+HARTRGD 3AL,ATXNH3 HRR+HSTD-ATX
D06B-0931-000 Toxic & oxygen detectors——ALATEXBLE+Relay+HARTRGD 3AL,ATXNH3 HRR+HBLESTD-ATX
D06B-1000-000 Toxic & oxygen detectors——ALATEX—RGD 3AL,ATXCL2STD-ATX
D06B-1000-010 Toxic & oxygen detectors——ALATEX—RGD 3AL,ATXCL2STD-ATX
D06B-1001-000 Toxic & oxygen detectors——ALATEXBLERGD 3AL,ATXCL2BLESTD-ATX
D06B-1010-000 Toxic & oxygen detectors——ALATEXRelayRGD 3AL,ATXCL2RELAYSTD-ATX
D06B-1020-000 Toxic & oxygen detectors——ALATEXHARTRGD 3AL,ATXCL2HARTSTD-ATX
D06B-1030-000 Toxic & oxygen detectors——ALATEXRelay+HARTRGD 3AL,ATXCL2R+HSTD-ATX
D06B-1031-000 Toxic & oxygen detectors——ALATEXBLE+Relay+HARTRGD 3AL,ATXCL2R+HBLESTD-ATX
D06B-1100-000 Toxic & oxygen detectors——ALATEX—RGD 3AL,ATXNOSTD-ATX
D06B-1300-000 Toxic & oxygen detectors——ALATEX—RGD 3AL,ATXHCLSTD-ATX
D06B-1301-000 Toxic & oxygen detectors——ALATEXBLERGD 3AL,ATXHCLBLESTD-ATX
D06B-1310-000 Toxic & oxygen detectors——ALATEXRelayRGD 3AL,ATXHCLRELAYSTD-ATX
D06B-1320-000 Toxic & oxygen detectors——ALATEXHARTRGD 3AL,ATXHCLHARTSTD-ATX
D06B-1330-000 Toxic & oxygen detectors——ALATEXRelay+HARTRGD 3AL,ATXHCLR+HSTD-ATX
D06B-1331-000 Toxic & oxygen detectors——ALATEXBLE+Relay+HARTRGD 3AL,ATXHCLR+HBLESTD-ATX
D06B-1410-000 Toxic & oxygen detectors——ALATEXRelayRGD 3AL,ATXHCNRELAYSTD-ATX
D06B-1411-000 Toxic & oxygen detectors——ALATEXBLE+RelayRGD 3AL,ATXHCNRELAYBLESTD-ATX
D06B-1500-000 Toxic & oxygen detectors——ALATEX—RGD 3AL,ATXETOSTD-ATX
D06B-1501-000 Toxic & oxygen detectors——ALATEXBLERGD 3AL,ATXETOBLESTD-ATX
D06B-1510-000 Toxic & oxygen detectors——ALATEXRelayRGD 3AL,ATXETORELAYSTD-ATX
D06B-1510-010 Toxic & oxygen detectors——ALATEXRelayRGD 3AL,ATXETORELAYSTD-ATX
D06B-1520-000 Toxic & oxygen detectors——ALATEXHARTRGD 3AL,ATXETOHARTSTD-ATX
D06B-1530-000 Toxic & oxygen detectors——ALATEXRelay+HARTRGD 3AL,ATXETOR+HSTD-ATX
D06B-1531-000 Toxic & oxygen detectors——ALATEXBLE+Relay+HARTRGD 3AL,ATXETOR+HBLESTD-ATX
D06B-1700-000 Toxic & oxygen detectorsC₂H₃Cl—ALATEX—RGD 3AL,ATXC2H3CLSTD-ATX
D06B-1710-000 Toxic & oxygen detectorsC₂H₃Cl—ALATEXRelayRGD 3AL,ATXC2H3CLRELAYSTD-ATX
D06B-1720-000 Toxic & oxygen detectorsC₂H₃Cl—ALATEXHARTRGD 3AL,ATXC2H3CLHARTSTD-ATX
D06B-1730-000 Toxic & oxygen detectorsC₂H₃Cl—ALATEXRelay+HARTRGD 3AL,ATXC2H3CLR+HSTD-ATX
D06B-1731-000 Toxic & oxygen detectorsC₂H₃Cl—ALATEXBLE+Relay+HARTRGD 3AL,ATXC2H3CLR+HBLESTD-ATX
D06B-2200-000 Toxic & oxygen detectors——ALATEX—RGD 3AL,ATXPH3STD-ATX
D06B-2510-000 Toxic & oxygen detectors——ALATEXRelayRGD 3AL,ATXCL2RELAYSTD-ATX
D06B-2530-000 Toxic & oxygen detectors——ALATEXRelay+HARTRGD 3AL,ATXCL2-LR+HSTD-ATX
D06B-2820-000 Toxic & oxygen detectors—0–50 PPMALATEXHARTRGD 3AL,ATXH2S,0-50PPMHARTSTD-ATX
D06B-2830-000 Toxic & oxygen detectors——ALATEXRelay+HARTRGD 3AL,ATXH2SR+HSTD-ATX
D06B-3000-000 Toxic & oxygen detectors——ALATEX—RGD 3AL,ATXH2SSTD-ATX
D06C-0300-002 Toxic & oxygen detectors——SSCN—RGD 3SS,CNO2STD-CN
D06C-0300-005 Toxic & oxygen detectors——SSCN—RGD 3SS,CNO2
D06C-0300-072 Toxic & oxygen detectors——SSCN—RGD 3SS,CNO2STD-CN
D06C-0310-002 Toxic & oxygen detectors——SSCNRelayRGD 3SS,CNO2RELAYSTD-CN
D06C-0310-012 Toxic & oxygen detectors——SSCNRelayRGD 3SS,CNO2RELAYSTD-CN
D06C-0320-012 Toxic & oxygen detectors——SSCNHARTRGD 3SS,CNO2HART
D06C-0320-102 Toxic & oxygen detectors——SSCNHART+SPDRGD 3SS,CNO2HARTSPDSTD-CN
D06C-0320-105 Toxic & oxygen detectors——SSCNHART+SPDRGD 3SS,CNO2HARTSPD
D06C-0330-012 Toxic & oxygen detectors——SSCNRelay+HARTRGD 3SS,CNO2R+HSTD-CN
D06C-0400-002 Toxic & oxygen detectors——SSCN—RGD 3SS,CNH2SSTD-CN
D06C-0410-005 Toxic & oxygen detectors——SSCNRelayRGD 3SS,CNH2SRELAY
D06C-0410-007 Toxic & oxygen detectors——SSCNRelayRGD 3SS,CNH2SRELAY
D06C-0420-112 Toxic & oxygen detectors——SSCNHART+SPDRGD 3SS,CNH2SHARTSPDSTD-CN
D06C-0430-012 Toxic & oxygen detectors——SSCNRelay+HARTRGD 3SS,CNH2SR+HSTD-CN
D06C-0430-015 Toxic & oxygen detectors——SSCNRelay+HARTRGD 3SS,CNH2SR+H
D06C-0600-002 Toxic & oxygen detectors——SSCN—RGD 3SS,CNH2STD-CN
D06C-0610-007 Toxic & oxygen detectors——SSCNRelayRGD 3SS,CNH2RELAY
D06C-0610-015 Toxic & oxygen detectors——SSCNRelayRGD 3SS,CNH2RELAY
D06C-0800-002 Toxic & oxygen detectors——SSCN—RGD 3SS,CNNH3STD-CN
D06C-0810-012 Toxic & oxygen detectors——SSCNRelayRGD 3SS,CNNH3RELAYSTD-CN
D06C-0810-015 Toxic & oxygen detectors——SSCNRelayRGD 3SS,CNNH3RELAY
D06C-0830-012 Toxic & oxygen detectors——SSCNRelay+HARTRGD 3SS,CNNH3R+HSTD-CN
D06C-0920-005 Toxic & oxygen detectors——SSCNHARTRGD 3SS,CNNH3 HRHART
D06C-1000-002 Toxic & oxygen detectors——SSCN—RGD 3SS,CNCL2STD-CN
D06C-1000-005 Toxic & oxygen detectors——SSCN—RGD 3SS,CNCL2SP07PLUS FOR CHINA*
D06C-1010-002 Toxic & oxygen detectors——SSCNRelayRGD 3SS,CNCL2RELAYSTD-CN
D06C-1300-002 Toxic & oxygen detectors——SSCN—RGD 3SS,CNHCLSTD-CN
D06C-1300-005 Toxic & oxygen detectors——SSCN—RGD 3SS,CNHCLSP07PLUS FOR CHINA*
D06C-1310-002 Toxic & oxygen detectors——SSCNRelayRGD 3SS,CNHCLRELAYSTD-CN
D06C-1310-005 Toxic & oxygen detectors——SSCNRelayRGD 3SS,CNHCLRELAY
D06C-2500-072 Toxic & oxygen detectors——SSCN—RGD 3SS,CNCL234NPT(M)-M20(F)STD-CN
D06C-2830-172 Toxic & oxygen detectors—0–50 PPMSSCNRelay+HART+SPDRGD 3SS,CNH2S,0-50PPMR+HSPDSTD-CN
D06C-3110-012 Toxic & oxygen detectors—0–50 PPMSSCNRelayRGD 3SS,CNCO,0-50PPMRELAYSTD-CN
D06J-0320-000 Toxic & oxygen detectors———ATEXHARTRGD 3O2HARTSTD-ATX
D06J-0320-008 Toxic & oxygen detectors———ATEXHARTRG3 S ATEXIECEx ,02,  HART Output
D06J-0400-008 Toxic & oxygen detectors—————RGD 3H2S
D06J-0410-008 Toxic & oxygen detectors————RelayRGD 3H2SRELAY
D06J-0411-008 Toxic & oxygen detectors——SSATEXBLE+RelayRGD 3SS,ATEXH2SRELAYBLESTD TRCU
D06J-0420-000 Toxic & oxygen detectors———ATEXHARTRGD 3H2SHARTSTD-ATX
D06J-0420-008 Toxic & oxygen detectorsH₂S——ATEXHARTRG3 S ATEXIECEx ,H2S,  HART Output
D06J-0430-008 Toxic & oxygen detectors————Relay+HARTRGD 3H2SR+H
D06J-0430-108 Toxic & oxygen detectors——SSATEXRelay+HART+SPDRGD 3SS,ATEXH2SR+HSPDSTD TRCU
D06J-0520-008 Toxic & oxygen detectors————HARTRGD 3COHART
D06J-0701-008 Toxic & oxygen detectors————BLERGD 3SO2BLE
D06J-0720-008 Toxic & oxygen detectors————HARTRGD 3SO2HART
D06J-0801-008 Toxic & oxygen detectors————BLERGD 3NH3BLE
D06J-0810-008 Toxic & oxygen detectorsNH₃——ATEXRelayRG3 S ATEXIECEx ,NH3-L,  Relay Output
D06J-0820-008 Toxic & oxygen detectorsNH₃——ATEXHARTRG3 S ATEXIECEx ,NH3-L,  HART Output
D06J-0910-008 Toxic & oxygen detectors————RelayRGD 3NH3 HRRELAY
D06J-0920-008 Toxic & oxygen detectors————HARTRGD 3NH3 HRHART
D06J-1100-008 Toxic & oxygen detectors—————RGD 3NO
D06J-1330-008 Toxic & oxygen detectors————Relay+HARTRGD 3HCLR+H
D06J-1410-000 Toxic & oxygen detectors———ATEXRelayRGD 3HCNRELAYSTD-ATX
D06J-1410-008 Toxic & oxygen detectors————RelayRGD 3HCNRELAY
D06J-2931-008 Toxic & oxygen detectors————BLE+Relay+HARTRGD 3H2SR+HBLE
D06J-3620-008 Toxic & oxygen detectors————HARTRGD 3HART
D06K-0300-008 Toxic & oxygen detectorsO₂0–25 %v/vALATEX—RG3 AL ATEXIECEx ,O2,
D06K-0310-008 Toxic & oxygen detectorsO₂0–25 %v/vALATEXRelayRG3 AL ATEXIECEx ,O2,  Relay Output
D06K-0320-008 Toxic & oxygen detectorsO₂0–25 %v/vALATEXHARTRG3 AL ATEXIECEx ,O2,  HART Output
D06K-0400-008 Toxic & oxygen detectors—————RGD 3H2S
D06K-0410-008 Toxic & oxygen detectors————RelayRGD 3H2SRELAY
D06K-0420-008 Toxic & oxygen detectorsH₂S—ALATEXHARTRG3 AL ATEXIECEx ,H2S,  HART Output
D06K-0510-000 Toxic & oxygen detectors——ALATEXRelayRGD 3AL,ATEXIECEXCORELAY
D06K-0510-008 Toxic & oxygen detectors————RelayRGD 3CORELAY
D06K-0520-008 Toxic & oxygen detectorsCO—ALATEXHARTRG3 AL ATEXIECEx ,CO,  HART Output
D06K-0610-000 Toxic & oxygen detectors———ATEXRelayRGD 3H2RELAYSTD-ATX
D06K-0620-008 Toxic & oxygen detectorsH₂—ALATEXHARTRG3 AL ATEXIECEx ,H2,  HART Output
D06K-0710-008 Toxic & oxygen detectorsSO₂—ALATEXRelayRG3 AL ATEXIECEx ,SO2,  Relay Output
D06K-0720-008 Toxic & oxygen detectors————HARTRGD 3SO2HART
D06K-0730-008 Toxic & oxygen detectors————Relay+HARTRGD 3SO2R+H
D06K-0800-008 Toxic & oxygen detectors—————RGD 3NH3
D06K-0801-008 Toxic & oxygen detectors—0–100 PPM——BLERGD 3NH3,0-100PPMBLESTD FOR TRCU
D06K-0810-008 Toxic & oxygen detectorsNH₃—ALATEXRelayRG3 AL ATEXIECEx ,NH3-L,  Relay Output
D06K-0820-008 Toxic & oxygen detectorsNH₃—ALATEXHARTRG3 AL ATEXIECEx ,NH3-L,  HART Output
D06K-0820-108 Toxic & oxygen detectors————HART+SPDRGD 3NH3HARTSPD
D06K-0830-008 Toxic & oxygen detectors————Relay+HARTRGD 3NH3R+H
D06K-0910-000 Toxic & oxygen detectors———ATEXRelayRGD 3NH3 HRRELAYSTD-ATX
D06K-0910-008 Toxic & oxygen detectorsNH₃—ALATEXRelayRG3 AL ATEXIECEx ,NH3-H,  Relay Output
D06K-1000-008 Toxic & oxygen detectors—————RGD 3CL2
D06K-1020-008 Toxic & oxygen detectors————HARTRGD 3CL2HART
D06K-1210-008 Toxic & oxygen detectors————RelayRGD 3NO2RELAY
D06K-1310-000 Toxic & oxygen detectors———ATEXRelayRGD 3HCLRELAYSTD-ATX
D06K-1310-008 Toxic & oxygen detectorsHCl—ALATEXRelayRG3 AL ATEXIECEx ,HCL,  Relay Output
D06K-1410-000 Toxic & oxygen detectors——ALATEXRelayRGD 3ALATEXIECEXHCNRELAY
D06K-1410-008 Toxic & oxygen detectorsHCN—ALATEXRelayRG3 AL ATEXIECEx ,HCN, Relay
D06K-1410-108 Toxic & oxygen detectors————Relay+SPDRGD 3HCNRELAYSPD
D06K-1510-008 Toxic & oxygen detectorsETO—ALATEXRelayRG3 AL ATEXIECEx ,ETO,  Relay Output
D06K-1530-008 Toxic & oxygen detectors————Relay+HARTRGD 3ETORELAY+HARTSTD TRCU
D06K-1620-008 Toxic & oxygen detectors————HARTRGD 3C3H3NHART
D06K-1620-108 Toxic & oxygen detectors————HART+SPDRGD 3C3H3NHARTSPD
D06K-2210-000 Toxic & oxygen detectors——ALATEXRelaydGD 3AL,ATEXIECEXPH3RELAY
D06K-2931-008 Toxic & oxygen detectors—0–150 PPM——BLE+Relay+HARTRGD 3H2S,0-150PPMR+HBLE
D06K-3420-008 Toxic & oxygen detectors—0–300 PPM——HARTRGD 3CO,0-300PPMHART
D06K-3620-008 Toxic & oxygen detectors————HARTRGD 3HART
033-2061-001 Accessories & spare parts————配件3/4″ NPT blanking plug
033-3032-000 Accessories & spare parts————配件Magnetic wand
2013-2031-001 Accessories & spare parts————配件U-bolt kit (2 pcs)
3006-6713-001 Accessories & spare parts————配件Sounder/beacon SP07Plus, red, 3/4″ NPT
3006-6715-001 Accessories & spare parts————配件Sounder/beacon SP07Plus, blue, 3/4″ NPT
490-3039-001 Accessories & spare parts————配件3/4″ NPT plug, ATEX & CSA
8490-0040-000 Accessories & spare parts————配件Tag plate
C07-0001-000 Accessories & spare parts—0–100 PPM——传感模块Smart sensor H₂S, 0–100 ppm
C07-0002-000 Accessories & spare partsLEL / Flam.0–100 %LEL——传感模块Smart sensor LEL, 0–100 %LEL
C07-0003-000 Accessories & spare partsLEL / Flam.0–100 %LEL——传感模块Smart IR sensor CH₄, 0–100 %LEL
C07-0004-000 Accessories & spare partsCO0–500 PPM——传感模块Smart sensor CO, 0–500 ppm
C07-0005-000 Accessories & spare parts—0–30 %VOL——传感模块Smart sensor O₂, 0–30 %vol
C07-0006-000 Accessories & spare parts—0–5 %VOL——传感模块Smart IR sensor CO₂, 0–5 %vol
C07-0007-000 Accessories & spare parts—0–1000 PPM——传感模块Smart sensor H₂, 0–1000 ppm
C07-0008-000 Accessories & spare parts—0–20 PPM——传感模块Smart sensor SO₂, 0–20 ppm
C07-0009-000 Accessories & spare parts—0–100 PPM——传感模块Smart sensor NH₃, 0–100 ppm
C07-0010-000 Accessories & spare partsCl₂0–10 PPM——传感模块Smart sensor Cl₂, 0–10 ppm
C07-0011-000 Accessories & spare partsNO0–100 PPM——传感模块Smart sensor NO, 0–100 ppm
C07-0012-100 Accessories & spare parts—0–20 PPM——传感模块Smart sensor NO₂, 0–20 ppm
C07-0013-000 Accessories & spare partsHCl0–30 PPM——传感模块Smart sensor HCl, 0–30 ppm
C07-0014-000 Accessories & spare partsHCN0–30 PPM——传感模块Smart sensor HCN, 0–30 ppm
C07-0015-000 Accessories & spare parts—0–10 PPM——传感模块Smart sensor C₃H₃N, 0–10 ppm
C07-0016-000 Accessories & spare parts—0–1 PPM——传感模块Smart sensor ClO₂, 0–1 ppm
C07-0018-100 Accessories & spare parts—0–5 PPM——传感模块Smart sensor PH₃, 0–5 ppm
C07-0019-000 Accessories & spare partsC₂H₃Cl0–100 PPM——传感模块Smart sensor C₂H₃Cl, 0–100 ppm
C07-0020-000 Accessories & spare parts—0–100 PPM——传感模块Smart sensor CH₄O, 0–100 ppm
C07-0021-000 Accessories & spare parts—0–50 PPM——传感模块Smart sensor HCHO, 0–50 ppm
C07-0022-000 Accessories & spare partsETO0–100 PPM——传感模块Smart sensor ETO, 0–100 ppm
C07-0023-000 Accessories & spare parts—0–1 PPM——传感模块Smart sensor COCl₂, 0–1 ppm
C07-0025-000 Accessories & spare parts—0–500 PPM——传感模块Smart sensor NH₃-H, 0–500 ppm
C07-0033-100 Accessories & spare partsCl₂0–5 PPM——传感模块Smart sensor Cl₂-L, 0–5 ppm
C07-2002-001 Accessories & spare parts————备件Sensor cover
C07-2011-001 Accessories & spare parts————配件Weather protection cover
C07-2012-000 Accessories & spare parts————配件Collecting cone
C07-2013-000 Accessories & spare parts————配件Duct mounting kit
C07-2014-000 Accessories & spare parts————配件Gas flow adapter
C07-2018-001 Accessories & spare parts————配件Calibration cap
C07-3007-001 Accessories & spare parts————备件Electrochemical sensor module
D06-0305-000 Accessories & spare parts————配件Remote mount kit, SS (not for NDIR)
D06-0306-000 Accessories & spare parts————配件Remote mount kit, AL (not for NDIR)
D06-1010-101 Accessories & spare parts————备件Main PCBA with HART
D06-1010-110 Accessories & spare parts————备件Main PCBA without HART
D06-1011-102 Accessories & spare parts————备件Display PCB, no BLE
D06-1011-103 Accessories & spare parts————备件Display PCB with BLE
D06-1012-102 Accessories & spare parts————备件Power PCB with relay
D06-1012-103 Accessories & spare parts————备件Power PCB, no relay
D06-1112-001 Accessories & spare parts————配件Remote-mount connection PCB
D06-2000-001 Accessories & spare parts————备件Enclosure cover, stainless steel
D06-2001-001 Accessories & spare parts————备件Enclosure bottom, stainless steel
D06-2002-001 Accessories & spare parts————备件Enclosure cover, aluminium
D06-2003-001 Accessories & spare parts————备件Enclosure bottom, aluminium
D06-2011-001 Accessories & spare parts————配件Sunshade, SS, Honeywell logo
D06-3001-100 Accessories & spare parts————备件Main-board cover assembly (China)
D06-3001-200 Accessories & spare parts————备件PCB board cover assembly (ATEX/IECEx)
D06-3002-001 Accessories & spare parts————备件Safety barrier, EC
D06-3003-001 Accessories & spare parts————备件Safety barrier, LEL/NDIR
D06-3009-100 Accessories & spare parts————备件Surge protection module
D06-3010-000 Accessories & spare parts————配件Backboard / quick mount kit
D06-3012-000 Accessories & spare parts————备件HART module (legacy SN only — verify)
D06-3013-000 Accessories & spare parts————备件Spare O-ring kit (5 sets)
D06-3014-000 Accessories & spare parts————备件Spare screws kit (5 sets)
D06-3015-001 Accessories & spare parts————配件Remote-mount interconnect cable
M01-2055-001 Accessories & spare parts————配件Hex tool

Full part-number index

Back to products

WhatsAppLive chat
Hotline
Pre-sales: 13241121312
After-sales: 010-84932407
WeChat
WeChat same as: 13241121312
QR
Back to top
