SI-200E Fixed Gas Detector

P/N: 29032 | Brand: SENKO | Price: On request

SENKO SI-200E Ex d fixed detector for O₂/toxic/LEL; 4-digit; 4–20 mA/RS-485; Bluetooth/HART option; IP66; SIL2.

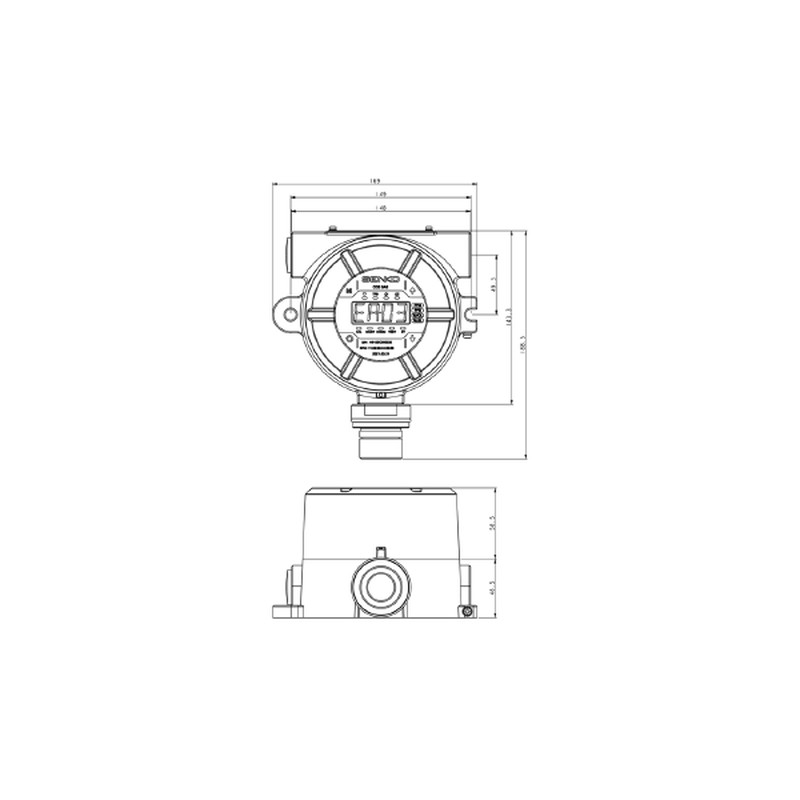

Product photo

SI-200E Fixed Gas Detector
SI-200E Fixed Gas Detector

Key specifications

ItemSpecification
Target gas & rangeLEL / toxic / O₂ by head
TypeSI-200E fixed with display
Output & alarms4–20 mA, optional relays / RS-485
Protection & ExIP65/66; Ex d or IS as ordered on the plate
Operating temperatureTypically −20 to +55 °C
Certificates / acceptanceSENKO Korea. IECEx/ATEX on the nameplate. A GB scan is not equivalent.

From SENKO published data. Nameplate and current list win.

Description

24 VDC, A1/A2/fault relays. Buttons/RS-485/Bluetooth. ATEX/IECEx Ex db IIC T6.

Key features

  • Ex d
  • 4-digit display
  • 4–20 mA / RS-485
  • Bluetooth
  • IP66
  • SIL2

Key specifications

ItemSpecification
Target gas & rangeLEL / toxic / O₂ by head
TypeSI-200E fixed with display
Output & alarms4–20 mA, optional relays / RS-485
Protection & ExIP65/66; Ex d or IS as ordered on the plate
Operating temperatureTypically −20 to +55 °C
Certificates / acceptanceSENKO Korea. IECEx/ATEX on the nameplate. A GB scan is not equivalent.

From SENKO published data. Nameplate and current list win.

Accessories

  • HART option
  • Bluetooth config

Typical applications

Continuous area monitoring in process units, tank farms and pump rooms: 4–20 mA / RS-485 to controllers or DCS, tripping fans and alarms.

Browse by gas

O2COH2SLELNH3Cl2SO2

Which model to choose

ModelTarget gasWhen to pick it
SI-200E O2Oxygen O₂Long-life O₂ >5 years
SI-200AHCl, NH₃, Cl₂ and O₂/LEL by selectionFaster adsorptive toxics
SI-100CLEL 0–100%, toxics by sensor, O₂ 0–30%VolHeadless budget 4–20 mA point
SI-100DLNG/LPG (methane/propane) 0–100%LELEntry LNG/LPG leak point

FAQ

Sensor life?
EC toxics 2–3 years, lead-free O₂ over 5 years, catalytic 3–5 years; replace the cartridge at end of life.
How is it wired?
4–20 mA (2- or 3-wire by gas) to a controller or DCS; SI-200E adds RS-485 Modbus and three relays.
Mounting height?
Light gases (CH₄, H₂) high; heavy gases (H₂S, LPG) low; O₂/CO at breathing zone — follow GB 50493.
Calibration interval?
Calibrate every 6 months, inspect every 3; the magnetic wand allows one-man calibration without a hot-work permit.
What does SIL2 mean?
SI-200E is SIL2-assessed and can be used in safety-instrumented loops requiring SIL2.
