125 SKUs from midas.csv. Open a code to decode it; cartridges mate to MIDAS-T-004, not Sensepoint XCD.
Open the part-number index (125 SKUs)On-page matrix
| Item | Value |
|---|---|
| Measured gases | NH3 ammonia, LNG LNG, CH4methane, H2 hydrogen, C4H10 butane, CO carbon monoxide, CS2 carbon disulfide, NO nitric oxide, NO2 nitrogen dioxide, H2S hydrogen sulfide, CL2 chlorine, CO2 carbon dioxide, SiH4 silane, O3 ozone, Br bromine, F fluorine, LEL flammable & toxic gases, C2H6 ethane |
| Measuring range | Ammonia NH3 0-100ppm |
| Detection principle | electrochemical |
| Accuracy | Factory-calibrated cartridge; bump / span per manual §18 |
| Resolution | Cartridge-dependent (ppb–ppm or %LEL / %vol) |
| Response time | Sample transit 2–30 s (line length) |
| Ingress protection | |
| Explosion protection | |
| Operating temperature | 0–40 °C; 0–30 °C with pyrolyzer |
| Power supply | Wiring requirements for 4-20mA/DC power/relay: 14AWG max |
| Output signal | 0-22mA analog output from Gree with fault and status reports |
Midas® is acclaimed for its innovative Chemcassette® range of ultra-agile low ppm toxic gas monitoring analyzers and our global network of service engineers (24/7, 7 days a week).
Midas® samples can be used at intervals of up to 30 meters (100 feet) and use control technology to automatically adjust the flow rate to ensure error-free gas detection and manipulation. Honeywell Analytics designs and manufactures its exclusive automated production line of improved sensors, guaranteeing unmatched quality and reliability.
The Midas®' compact form factor and easy-to-inspect metal body design make it easy to install in dense, day-to-day complex process environments or space-critical environments. The Midas® comes with a scale of built-in selectable power and communication modes, including 3 built-in relays, 0-22mA analog outputs, Modbus/TCP Ethernet digital outputs, and the new Power over Ethernet (PoE) protocol—a single Ethernet connection for all power, control, and communication devices. The Midas® architecture significantly reduces the cost of PLC and FieldBus system integration.
Midas® is used for the detection of toxic gas, ambient gas, and flammable gas in typical industrial environments through the transmitter platform. Pre-calibrated "plug and play" smart sensors allow for quick and easy sensor replacement without tools and prevent misuse or discarded sensor errors by operators. High-brightness LEDs as well as intuitive graphs display gas readings and alarm levels when displaying interactive menus (combined with password-protected menus for parameterization, detection and calibration).
Midas® is a highly agile and reliable gas detector for toxic gas and flammable gas used in the semiconductor industry and other general industries. With extended sensor calibration cycles, flexible communication modes, and sensor self-diagnostics and automatic flow control, Medias® significantly reduces the operating costs required for gas detection.

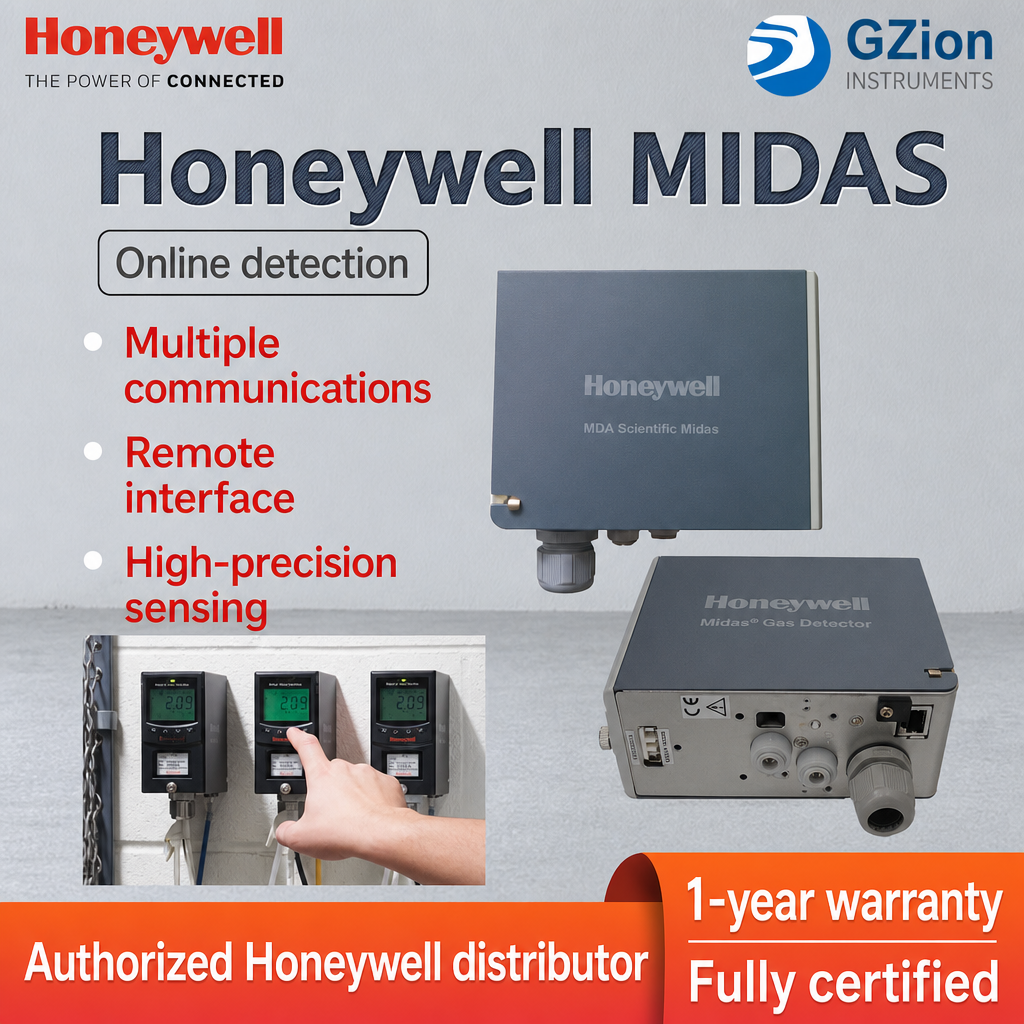

Midas gas detector supports more than 40 gas detections
MDA Scientific Midas Box
MDA Scientific Midas Parts
Honeywell MIDAS toxic gas flammable gas oxygen detector instruction manual
Midas® is a highly sensitive and reliable gas detector for toxic gas and flammable gas used in the semiconductor industry and other general industries. With extended sensor calibration cycles, flexible communication modes, and sensor self-diagnostics and automatic flow control, Medias® significantly reduces the operating costs required for gas detection.
Midas® is used for the detection of toxic gas, ambient gas, and flammable gas in typical industrial environments via the transmitter platform. Pre-calibrated "plug and play" smart sensors allow for quick and easy sensor replacement without tools and prevent operator misuse or abandoned sensor errors. High-brightness LEDs as well as intuitive graphs display gas readings and alarm levels when displaying interactive menus (combined with password-protected menus for parameterization, detection and calibration).
The Midas®' compact shape and easy-to-access metal body design make it easy to install in dense, day-to-day complex process environments or space-critical environments. The Midas® comes with standard built-in selectable power and communication modes, including 3 built-in relays, 0-22mA analog outputs, Modbus/TCP Ethernet digital outputs, and the new Power over Ethernet (PoE) protocol—a single Ethernet connection for all power, control, and communication devices. The Midas® architecture significantly reduces the cost of PLC and FieldBus system integration.
Midas® can sample distances of up to 30 meters (100 feet) and uses control technology to automatically adjust the flow rate to ensure error-free gas detection operations. Honeywell Analytics designs and manufactures its unique advanced automated sensor production line that guarantees unmatched quality and reliability.
Midas® is acclaimed for its innovative Chemcassette® range of ultra-sensitive low ppm toxic gas monitoring analyzers and our global network of service engineers (24/7, 7 days a week).
Midas gas detector has a variety of communication methods and is highPrecision and sensitivity
Instrument features:
The following data is supplemented from the 2026 merged pricing document and the MIDAS Chinese technical datasheet for engineering selection and technical review only (no pricing shown).
| Item | Supplemental data |
|---|---|
| Dimensions | Approx. 150 x 65 x 153 mm (main unit) |
| Weight | Approx. 0.8 kg (main unit) |
| Power supply | 24VDC (-15% to +10%); PoE 48VDC supported |
| Power consumption | Typically below 5W (varies by communication module) |
| Analog output | 0-21mA / 4-20mA with fault/status signaling |
| Digital communication | Modbus TCP, Ethernet, PoE; optional LonWorks |
| Relays | 3 relays, 30VDC 1A / 125VAC 0.5A |
| Sampling flow | Approx. 500 mL/min |
| Sampling distance | 2 to 30 m (up to about 100 ft) |
| Operating conditions | 0 to 40C recommended; some options 0 to 30C |
| Compliance | CE, EN 50270, EN 61000-6-4, UL 61010-1 (per source revision) |
Open the matrix below for every SKU page.
Start with transmitter MIDAS-T-004, then pick a 2-year E or 1-year S cartridge by gas. Pyrolyzed species need T-00P / T-HTP / T-NP1. Budget pump A-007 and internal filter A-009 on the PM cycle. Open a SKU page.
Honeywell Midas® part-number matrix
| P/N | Type | Gas | Range |
|---|---|---|---|
| 1283B1300 | Mounting accessory | 1283B1300 | — |
| 1830-0027 | Sample-line filter | 1830-0027 | — |
| 1830-0080 | Sample-line filter | 1830-0080 | — |
| 1830K0080 | Sample-line filter | 1830K0080 | — |
| 20202-4010 | Spare part | 20202-4010 | — |
| 3010B0502 | Spare part | 3010B0502 | — |
| 3010B0504 | Spare part | 3010B0504 | — |
| 3015-2885-001 | Spare part | 3015-2885-001 | — |
| 3015-2886-001 | Spare part | 3015-2886-001 | — |
| CMD10-0032-0 | Communications module | CMD10-0032-0 | — |
| CMD10-0033-0 | Communications module | CMD10-0033-0 | — |
| CMD10-0034-0 | Communications module | CMD10-0034-0 | — |
| EPCB1-0024 | Spare part | EPCB1-0024 | — |
| EPCB1-0027 | Spare part | EPCB1-0027 | — |
| MIDAS S2-I-CH2 | IR cartridge | CH₂F₂ | ppm CH₂F₂ |
| MIDAS S2-I-CH3 | IR cartridge | CH₃F | ppm CH₃F |
| MIDAS S2-I-CO2 | IR cartridge | CO₂ | 0–2.0 %vol |
| MIDAS S2-I-SF6 | IR cartridge | SF₆ | ppm SF₆ |
| MIDAS-A-001 | Manual | MIDAS-A-001 | — |
| MIDAS-A-007 | Spare part | MIDAS-A-007 | — |
| MIDAS-A-007-LGD | Spare part | MIDAS-A-007-LGD | — |
| MIDAS-A-009 | Spare part | MIDAS-A-009 | — |
| MIDAS-A-010 | Spare part | MIDAS-A-010 | — |
| MIDAS-A-011 | Mounting accessory | MIDAS-A-011 | — |
| MIDAS-A-012 | Mounting accessory | MIDAS-A-012 | — |
| MIDAS-A-013 | Mounting accessory | MIDAS-A-013 | — |
| MIDAS-A-031 | Mounting accessory | MIDAS-A-031 | — |
| MIDAS-A-032 | Mounting accessory | MIDAS-A-032 | — |
| MIDAS-A-033 | Mounting accessory | MIDAS-A-033 | — |
| MIDAS-A-036 | Mounting accessory | MIDAS-A-036 | — |
| MIDAS-A-102 | Mounting accessory | MIDAS-A-102 | — |
| MIDAS-A-102G | Mounting accessory | MIDAS-A-102G | — |
| MIDAS-A-103 | Mounting accessory | MIDAS-A-103 | — |
| MIDAS-A-103G | Mounting accessory | MIDAS-A-103G | — |
| MIDAS-A-104 | Mounting accessory | MIDAS-A-104 | — |
| MIDAS-D-007 | Spare part | MIDAS-D-007 | — |
| MIDAS-D-NDI | Spare part | MIDAS-D-NDI | — |
| MIDAS-E-ASH | Cartridge · 2-year extended | AsH₃/GeH₄ | AsH₃ 0–200 ppb / GeH₄ 0–800 ppb |
| MIDAS-E-B2H | Cartridge · 2-year extended | B₂H₆ | 0–400 ppb |
| MIDAS-E-BR2 | Cartridge · 2-year extended | Br₂/ClO₂ | 0–0.4 ppm |
| MIDAS-E-CFH | Cartridge · 2-year extended | PFC | ppm PFC |
| MIDAS-E-CFX | Cartridge · 2-year extended | PFC | 0–40 ppm |
| MIDAS-E-CO2 | Cartridge · 2-year extended | CO₂ | 0–2.0 %vol |
| MIDAS-E-COH | Cartridge · 2-year extended | CO | 0–100 ppm |
| MIDAS-E-COX | Cartridge · 2-year extended | CO | 0–100 ppm |
| MIDAS-E-H2S | Cartridge · 2-year extended | H₂S | 0–40 ppm |
| MIDAS-E-H2X | Cartridge · 2-year extended | H₂ | 0–1000 ppm |
| MIDAS-E-HAL | Cartridge · 2-year extended | Cl₂/F₂ | Cl₂ 0–2 ppm / F₂ 0–4 ppm |
| MIDAS-E-HCH | Cartridge · 2-year extended | HCl | ppm HCl |
| MIDAS-E-HCL | Cartridge · 2-year extended | HCl family | 0–8 ppm |
| MIDAS-E-HCN | Cartridge · 2-year extended | HCN | 0–20 ppm |
| MIDAS-E-HFL | Cartridge · 2-year extended | HF low | 0–2 ppm |
| MIDAS-E-HFU | Cartridge · 2-year extended | HF | low-ppb HF |
| MIDAS-E-HFX | Cartridge · 2-year extended | HF family | HF 0–12 ppm |
| MIDAS-E-HSE | Cartridge · 2-year extended | H₂Se | 0–0.4 ppm |
| MIDAS-E-HSH | Cartridge · 2-year extended | H₂S | ppm H₂S |
| MIDAS-E-LEB | Cartridge · 2-year extended | n-C₄H₁₀ | 0–100 %LEL |
| MIDAS-E-LEL | Cartridge · 2-year extended | H₂/CH₄ LEL | 0–100 %LEL |
| MIDAS-E-LEO | Cartridge · 2-year extended | n-C₈H₁₈ | 0–100 %LEL |
| MIDAS-E-LEX | Cartridge · 2-year extended | C₃H₈ | 0–100 %LEL |
| MIDAS-E-NH3 | Cartridge · 2-year extended | NH₃ | 0–100 ppm |
| MIDAS-E-NH3-MTO | Cartridge · 2-year extended | NH₃ | 0–100 ppm |
| MIDAS-E-NO2 | Cartridge · 2-year extended | NO₂ | 0–12 ppm |
| MIDAS-E-NOX | Cartridge · 2-year extended | NO | 0–100 ppm |
| MIDAS-E-O2X | Cartridge · 2-year extended | O₂ | 0–25 %vol |
| MIDAS-E-O3H | Cartridge · 2-year extended | O₃ | 0–0.7 ppm |
| MIDAS-E-O3X | Cartridge · 2-year extended | O₃ | 0–0.4 ppm |
| MIDAS-E-PH3 | Cartridge · 2-year extended | PH₃ | 0–1200 ppb |
| MIDAS-E-PHX | Cartridge · 2-year extended | PH₃ | ppm PH₃ |
| MIDAS-E-SF4 | Cartridge · 2-year extended | SF₄ | 0–0.8 ppm |
| MIDAS-E-SHL | Cartridge · 2-year extended | SiH₄ low | 0–2 ppm |
| MIDAS-E-SHX | Cartridge · 2-year extended | SiH₄ | 0–20 ppm |
| MIDAS-E-SO2 | Cartridge · 2-year extended | SO₂ | 0–8 ppm |
| MIDAS-E-TEO | Cartridge · 2-year extended | TEOS | 0–40 ppm |
| MIDAS-E-TEO-MTO | Cartridge · 2-year extended | TEOS | 0–40 ppm |
| MIDAS-E-XCF | Cartridge · 2-year extended | PFC | C₄F₆ 0–40 ppm |
| MIDAS-E-XHF | Cartridge · 2-year extended | NF₃/CH₃F | NF₃ 0–40 ppm / CH₃F 0–120 ppm |
| MIDAS-I-CO2 | IR cartridge | CO₂ | 0–2.0 %vol |
| MIDAS-I-COS | IR cartridge | COS | ppm COS |
| MIDAS-I-N2O | IR cartridge | N₂O | ppm–% N₂O |
| MIDAS-I-SF6 | IR cartridge | SF₆ | ppm SF₆ |
| MIDAS-L-O2S | IR cartridge | O₂ | 0–25 %vol |
| MIDAS-S-ASH | Cartridge · 1-year standard | AsH₃/GeH₄ | AsH₃ 0–200 ppb / GeH₄ 0–800 ppb |
| MIDAS-S-B2H | Cartridge · 1-year standard | B₂H₆ | 0–400 ppb |
| MIDAS-S-BR2 | Cartridge · 1-year standard | Br₂/ClO₂ | 0–0.4 ppm |
| MIDAS-S-CFX | Cartridge · 1-year standard | PFC | 0–40 ppm |
| MIDAS-S-CO2 | Cartridge · 1-year standard | CO₂ | 0–2.0 %vol |
| MIDAS-S-COH | Cartridge · 1-year standard | CO | 0–100 ppm |
| MIDAS-S-COX | Cartridge · 1-year standard | CO | 0–100 ppm |
| MIDAS-S-H2S | Cartridge · 1-year standard | H₂S | 0–40 ppm |
| MIDAS-S-H2X | Cartridge · 1-year standard | H₂ | 0–1000 ppm |
| MIDAS-S-HAL | Cartridge · 1-year standard | Cl₂/F₂ | Cl₂ 0–2 ppm / F₂ 0–4 ppm |
| MIDAS-S-HCL | Cartridge · 1-year standard | HCl family | 0–8 ppm |
| MIDAS-S-HCN | Cartridge · 1-year standard | HCN | 0–20 ppm |
| MIDAS-S-HFL | Cartridge · 1-year standard | HF low | 0–2 ppm |
| MIDAS-S-HFX | Cartridge · 1-year standard | HF family | HF 0–12 ppm |
| MIDAS-S-HSE | Cartridge · 1-year standard | H₂Se | 0–0.4 ppm |
| MIDAS-S-HSH | Cartridge · 1-year standard | H₂S | ppm H₂S |
| MIDAS-S-LEL | Cartridge · 1-year standard | H₂/CH₄ LEL | 0–100 %LEL |
| MIDAS-S-NH3 | Cartridge · 1-year standard | NH₃ | 0–100 ppm |
| MIDAS-S-NO2 | Cartridge · 1-year standard | NO₂ | 0–12 ppm |
| MIDAS-S-NOX | Cartridge · 1-year standard | NO | 0–100 ppm |
| MIDAS-S-O3H | Cartridge · 1-year standard | O₃ | 0–0.7 ppm |
| MIDAS-S-O3X | Cartridge · 1-year standard | O₃ | 0–0.4 ppm |
| MIDAS-S-PH3 | Cartridge · 1-year standard | PH₃ | 0–1200 ppb |
| MIDAS-S-POC | Cartridge · 1-year standard | POCl₃ | 0–0.8 ppm |
| MIDAS-S-SF4 | Cartridge · 1-year standard | SF₄ | 0–0.8 ppm |
| MIDAS-S-SHL | Cartridge · 1-year standard | SiH₄ low | 0–2 ppm |
| MIDAS-S-SHX | Cartridge · 1-year standard | SiH₄ | 0–20 ppm |
| MIDAS-S-SO2 | Cartridge · 1-year standard | SO₂ | 0–8 ppm |
| MIDAS-S-TEO | Cartridge · 1-year standard | TEOS | 0–40 ppm |
| MIDAS-S-XCF | Cartridge · 1-year standard | PFC | C₄F₆ 0–40 ppm |
| MIDAS-S-XHF | Cartridge · 1-year standard | NF₃/CH₃F | NF₃ 0–40 ppm / CH₃F 0–120 ppm |
| MIDAS-T-001 | Extractive transmitter | MIDAS-T-001 | — |
| MIDAS-T-004 | Extractive transmitter | MIDAS-T-004 | — |
| MIDAS-T-004G | Extractive transmitter | MIDAS-T-004G | — |
| MIDAS-T-005G | Extractive transmitter | MIDAS-T-005G | — |
| MIDAS-T-006G | Extractive transmitter | MIDAS-T-006G | — |
| MIDAS-T-00P | Pyrolyzer module | MIDAS-T-00P | — |
| MIDAS-T-HTP | Pyrolyzer module | MIDAS-T-HTP | — |
| MIDAS-T-LON | Communications module | MIDAS-T-LON | — |
| MIDAS-T-NP1 | Pyrolyzer module | MIDAS-T-NP1 | — |
| MIDAS-X-COS | IR cartridge | COS | ppm COS |
| MIDAS-X-IPA | IR cartridge | IPA | ppm IPA |
| MVIP3632-5A | Spare part | MVIP3632-5A | — |
